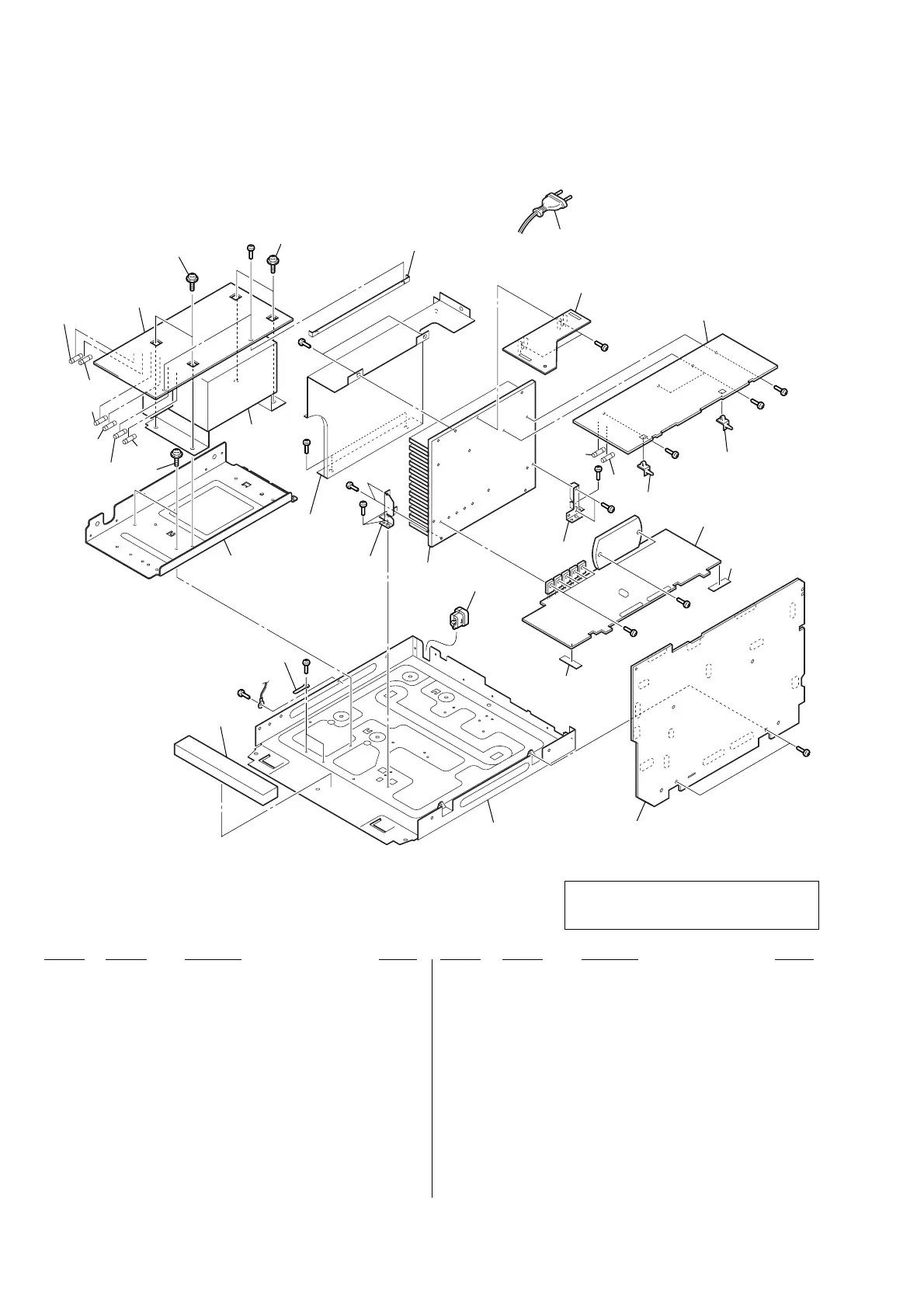

7-7. CHASSIS SECTION-2
301
#3
#2
#2
#2
#3
#3
#3
#4
#3
#4
#3
#3
#3
#3
#2
#2
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
T911
302
302
302
303
304
305
306
307
309
308
309
F914
F915
F916
F917
F918
F919
F921
F920
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 A-4749-162-A TRANS BOARD, COMPLETE
302 4-242-526-01 S-SCREW, ITC+4-10 R
0 303 1-775-787-62 CORD, POWER (EXCEPT E)
0 303 1-827-226-11 CORD, POWER (E)
304 A-4749-158-A I-BASS BOARD, COMPLETE
305 A-4749-159-A SURROUND AMP BOARD, COMPLETE
306 A-4749-160-A FRONT AMP BOARD, COMPLETE
307 3-703-244-00 BUSHING (2104), CORD (EXCEPT E)
307 3-703-571-11 BUSHING (S) (4516), CORD (E)
308 A-4749-157-A MAIN BOARD, COMPLETE (SP, MY)
308 A-4749-285-A MAIN BOARD, COMPLETE (EA)
308 A-4749-304-A MAIN BOARD, COMPLETE (E)
309 3-378-109-12 CUSHION, SARANET
0 F914 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8AL/250V)
0 F915 1-576-655-12 FUSE, GLASS TUBE (DIA. 5) (T8AL/250V)
0 F916 1-533-472-12 FUSE, GLASS TUBE (DIA. 5) (T5AL/250V)
0 F917 1-533-472-12 FUSE, GLASS TUBE (DIA. 5) (T5AL/250V)
0 F918 1-533-472-12 FUSE, GLASS TUBE (DIA. 5) (T5AL/250V)
0 F919 1-533-471-12 FUSE, GLASS TUBE (DIA. 5) (T4AL/250V)
0 F920 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V)
0 F921 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (T6.3AL/250V)
0 T911 1-443-044-11 TRANSFORMER, POWER (EA)
0 T911 1-443-047-11 TRANSFORMER, POWER (EXCEPT EA)
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
