Sony DSC-P72 - Main Block Assembly; Parts Unit (Ua-002)

2-4
DSC-P72

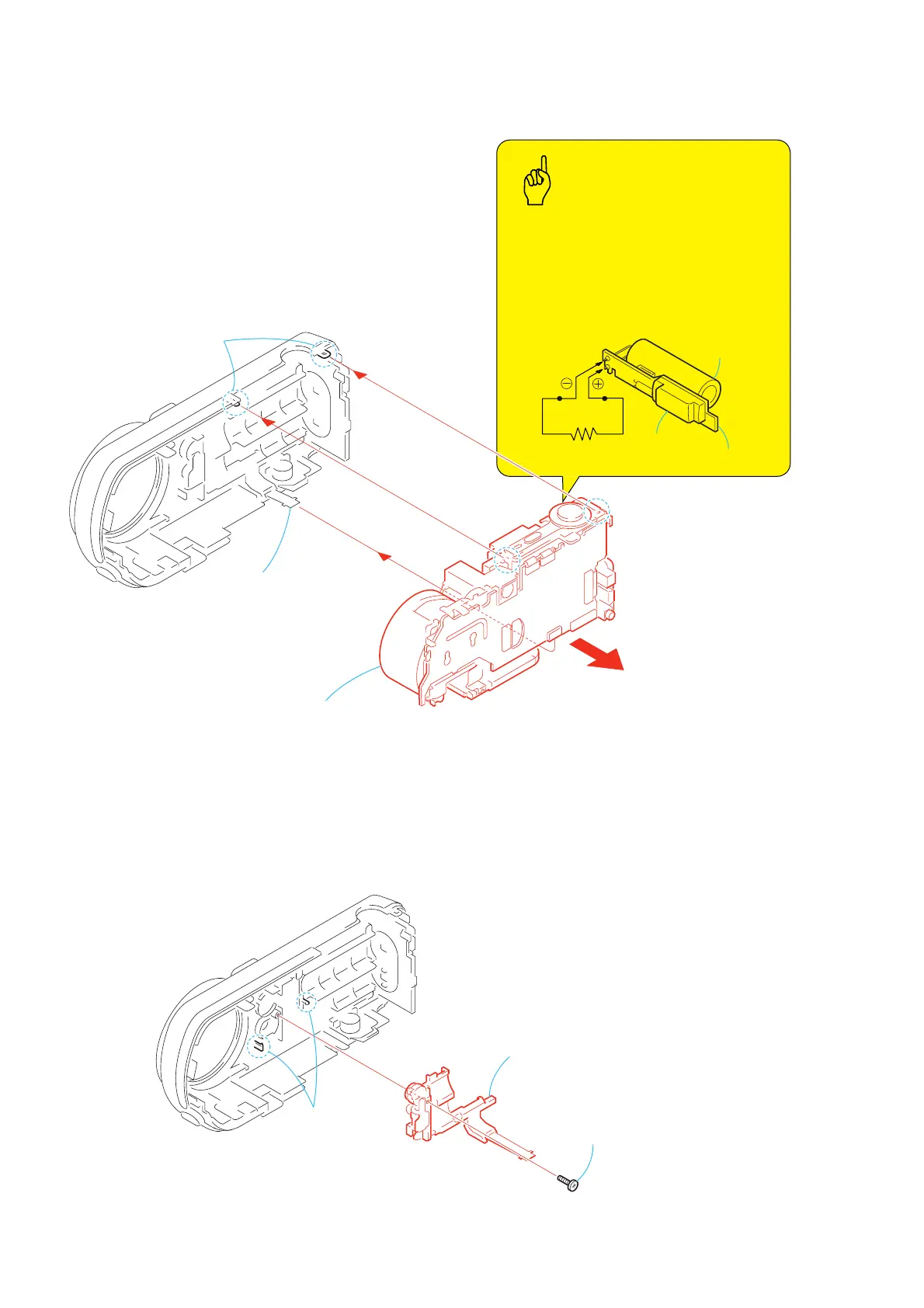

2-4. UNIT PARTS (UA-002)
2-3. MAIN BLOCK ASSEMBLY
Capacitor
ST-82 B0ARD
Flash unit
3 Main block assembly
2 Two claws
1 Parts unit (UA-002)
(10P)
Shorting jig
(1k
Ω / 1w)
The power supply capacitor of the Flash unit is
charged to the voltage as high as 300 V at a
maximum. The high voltage is not discharged
even after the main power of the machine is
simply turned off and the charged potential still
remains.
Discharge the residual voltage by referring to
Service Note (page 1-1).
Caution
1 Tapping screw, p2
(1.7
× 5)
3 Unit parts (UA-002)
2 Two c laws
