Sony DSC-P72 - Control Switch Block (Sw-391)

2-3
DSC-P72

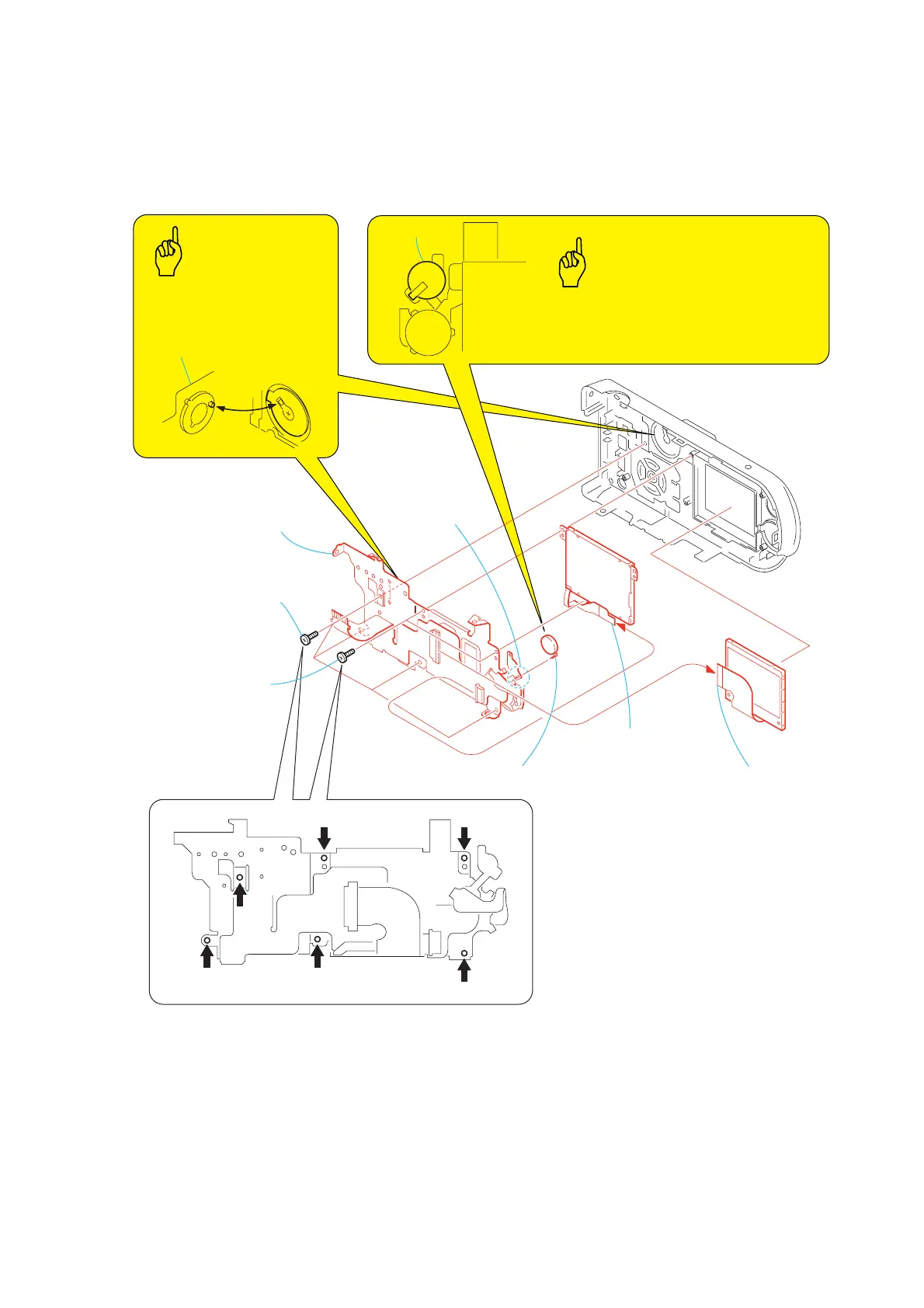

2-2. BLOCK LIGHT GUIDE PLATE, LCD MODULE, CONTROL SWITCH BLOCK (SW-391),
LITHIUM BATTERY
Danger of explosion if batteryis incorrectly replaced.
Replace only with the same or equivalent type.
5 Control switch block (SW-391)
1 Four tapping screws
(M1.7
× 4)
2 Two tapping screws
(M1.7
× 4)
4 LCD module (ACX309AKB-2) (24P)
Control switch block (SW-391)
When installing it,
align the switch position
as shown.
3 Block light guide plate
(6P)
Caution
6 Remove soldering
from the two points.
7 Lithium battery
Lithium battery
Caution
