Sony DSC-P72 - Video Lens, CCD Block Assembly

2-5
DSC-P72

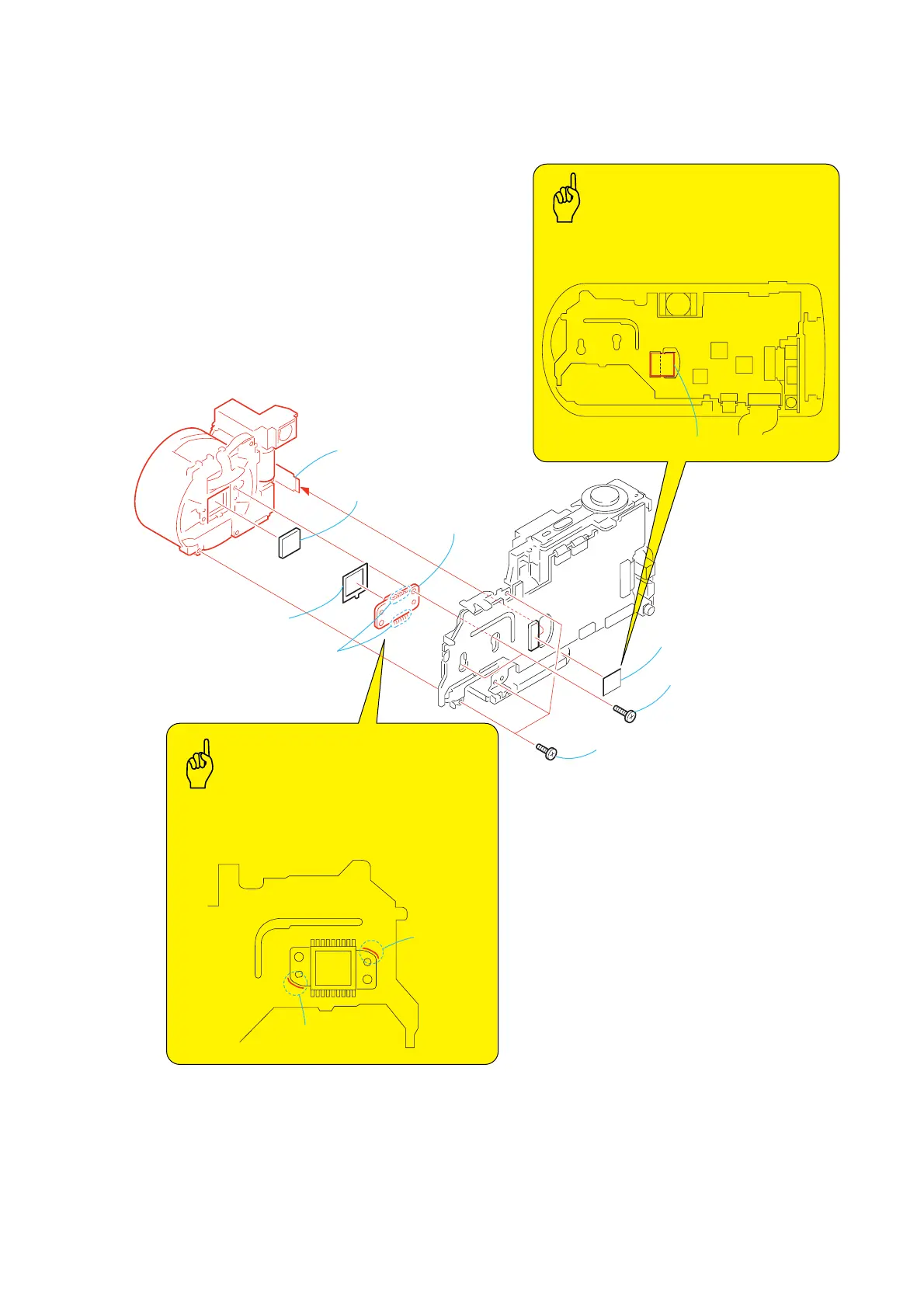

2-5. VIDEO LENS (ED02D), CCD BLOCK ASSEMBLY
4 Video lens (ED02D) (27P)
5 Optical filter block
6 Seal rubber (DQ)
1 Tape (Y)
Tape (Y)
Attach the Tape (Y) as shown in the illustration.
Caution
7 Remove the solderings.
8 CCD block assembly
3 Two tapping screws, p2
(1.7
× 5)
2 Three tapping screws
(1.7
× 4)
Caution
mark
mark
When installing the CCD block assy,
align the CCD block assembly with the mark as shown
in the illustration.
