Sony DSC-P72 - Cabinet (R) Block Assembly

2-2
DSC-P72
NOTE: Follow the disassembly procedure in the numerical order given.

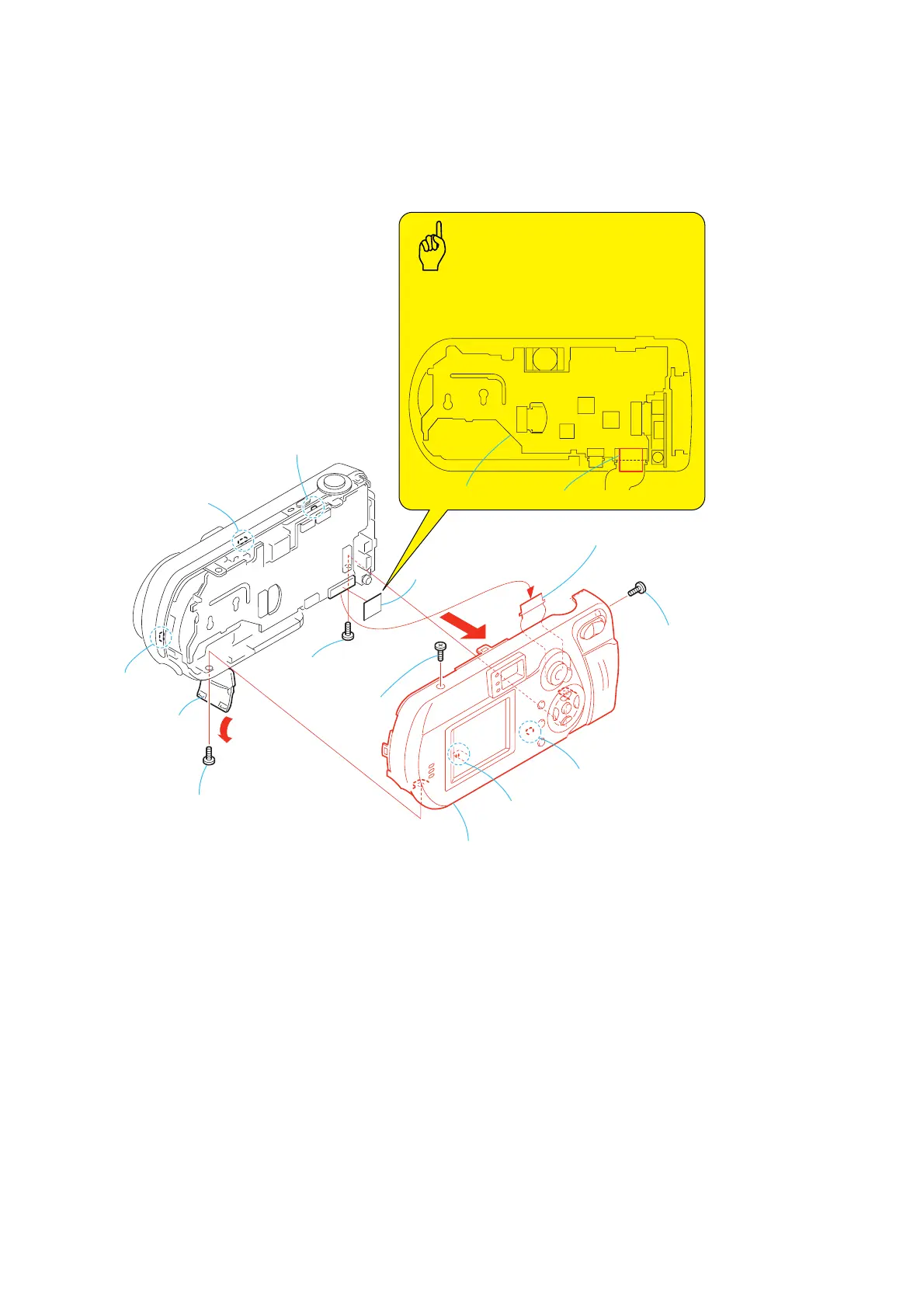

2-1. CABINET (R) BLOCK ASSEMBLY
qd Cabinet (rear) block assembly
qs Control switch block (SW-391)(39P)
qa Tape (Y)
5 Screw (M2 × 4),
lock ace, p2
1 Screw (M2 × 4),
lock ace, p2
3 Screw (M2 × 4),
lock ace, p2
2 Screw (M2 × 4),
lock ace, p2
4 Open the
MS lid.
7 Claw
8 Claw
6 Claw
9 Claw
q; Claw
Tape (Y)SY-85 board
Attach the Tape (Y) as shown in the illustration.
Caution
