2-8
DSC-P72
Cabinet (rear) block assembly
Memory stick connector
DC jack
AC I
N
AC power
adaptor
JK block
(JK-252)
Control switch block (RL-059)
ST-82 board
SY-85 board
Video lens (ED02D)
(10P)
(10P)
(39P)
(39P)
(12P)
CN705
CN704
CN701
CN702
CN706
CN201
(10P)
(27P)
Unit parts(UA-002)
“ Never remove the lens unless removal
is required at the event of checking the
CCD imager and others.’’

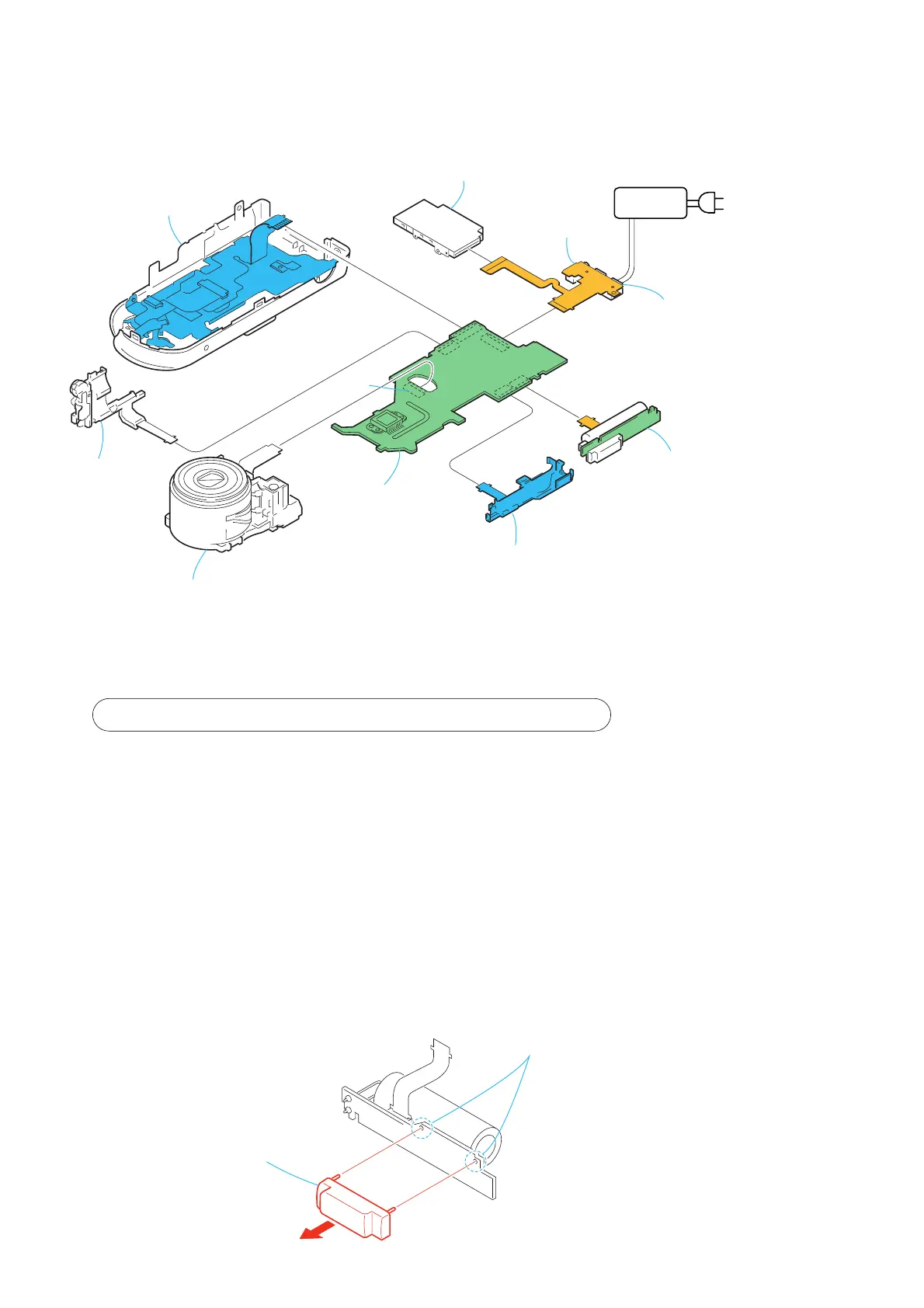

[SERVICE POSITION (SY-85 BOARD)]
1 2-1. CABINET (R) BLOCK ASSEMBLY .................................................
2 2-2. BLOCK LIGHT GUIDE PLATE, LCD MODULE,
CONTROL SWITCH BLOCK (SW-391), LITHIUM BATTERY ........
3 2-3. MAIN BLOCK ASSEMBLY .............................................................
4 2-4. UNIT PARTS (UA-002) ..................................................................
5 2-5. VIDEO LENS (ED02D), CCD BLOCK ASSEMBLY ........................
6 2-6. MEMORY STICK CONNECTOR, JK BLOCK (JK-252) .................
7 2-7. CONTROL SWITCH BLOCK (RL-059), ST-82 BOARD .................
8 2-8. SY-85 BOARD ................................................................................
(page 2-2)
(page 2-3)
(page 2-4)
(page 2-4)
(page 2-5)
(page 2-6)
(page 2-6)
(page 2-7)
PROCEDURE OF REMOVING SY-85 BOARD (SERVICE POSITION)
2-9. FLASH UNIT
2 Flash unit
1 Remove soldering
from the two points.
