DVP-K800D

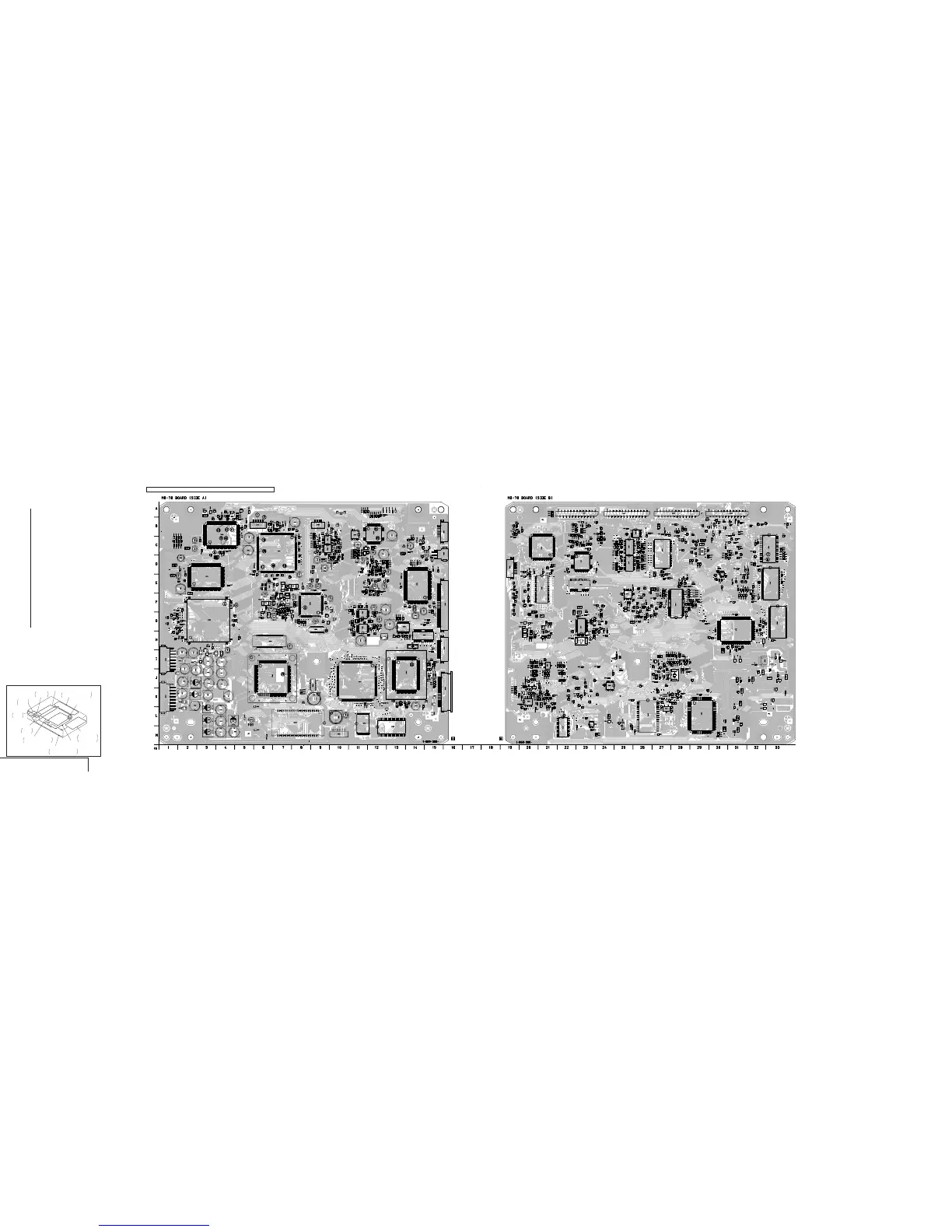

MB-78 (VIDEO, SERVO/SYSTEM CONTROL, AUDIO) PRINTED WIRING BOARD
—Ref. No.: MB-78 Board; 1,000 Series—
There are few cases that the part printed on this diagram isn’t mounted in this model.
MB-78 BOARD
CN001 K-1
CN002 I-1
CN101 A-23
CN252 A-31
CN301 D-19
CN302 A-25
CN303 B-9
CN361 C-16
CN451 B-6
CN452 A-28
CN601 J-16
CN801 M-10
D002 J-33
D101 B-30
D102 B-5
D103 B-30
D502 F-25
D801 L-13
D802 L-25
IC201 E-33
IC202 G-33
IC203 G-3
IC204 E-30
IC205 F-11
IC206 G-11
IC207 C-33
IC208 E-32
IC209 G-23
IC251 E-3
IC252 B-4
IC301 B-11
IC302 D-23
IC303 B-12
IC361 E-23
IC363 F-28
IC452 B-26
IC455 E-6
IC501 C-9
IC502 D-25
IC503 C-25
IC506 F-8
IC507 F-25
IC508 C-9
IC601 L-22
IC602 L-23
IC603 L-11
IC604 J-14
IC605 I-21
IC606 K-20
IC801 J-24
IC802 L-26
IC803 L-8
IC804 J-11
IC805 J-6
IC806 C-7
IC807 L-29
IC810 C-27
IC811 G-31
IC812 C-29
Q001 J-32
Q002 I-32
Q371 F-6
Q372 F-6
Q452 E-28
Q501 B-10
4-12
4-13 4-14
4-15 4-16
VIDEO, SERVO/SYSTEM CONTROL, AUDIO
MB-78
Power Block
AU-217
AUDIO D/A CONVERTER,
LINE OUT
FG-43
(SLED MOTOR)
TK-47
(RF, SERVO)
KR-35
KARAOKE
DSP/
MIC 3, 4 JACKS
FL-106
DISPLAY,
OPERATION SWITCHES
MB-78
VIDEO, SERVO/SYSTEM
CONTROL, AUDIO
MC-115
MIC 1, 2
JACKS
FR-156
POWER
SWITCH
HP-116
PHONES
JACK
VR-68
MIC/ECHO
LEVEL
