SERVICE NOTE

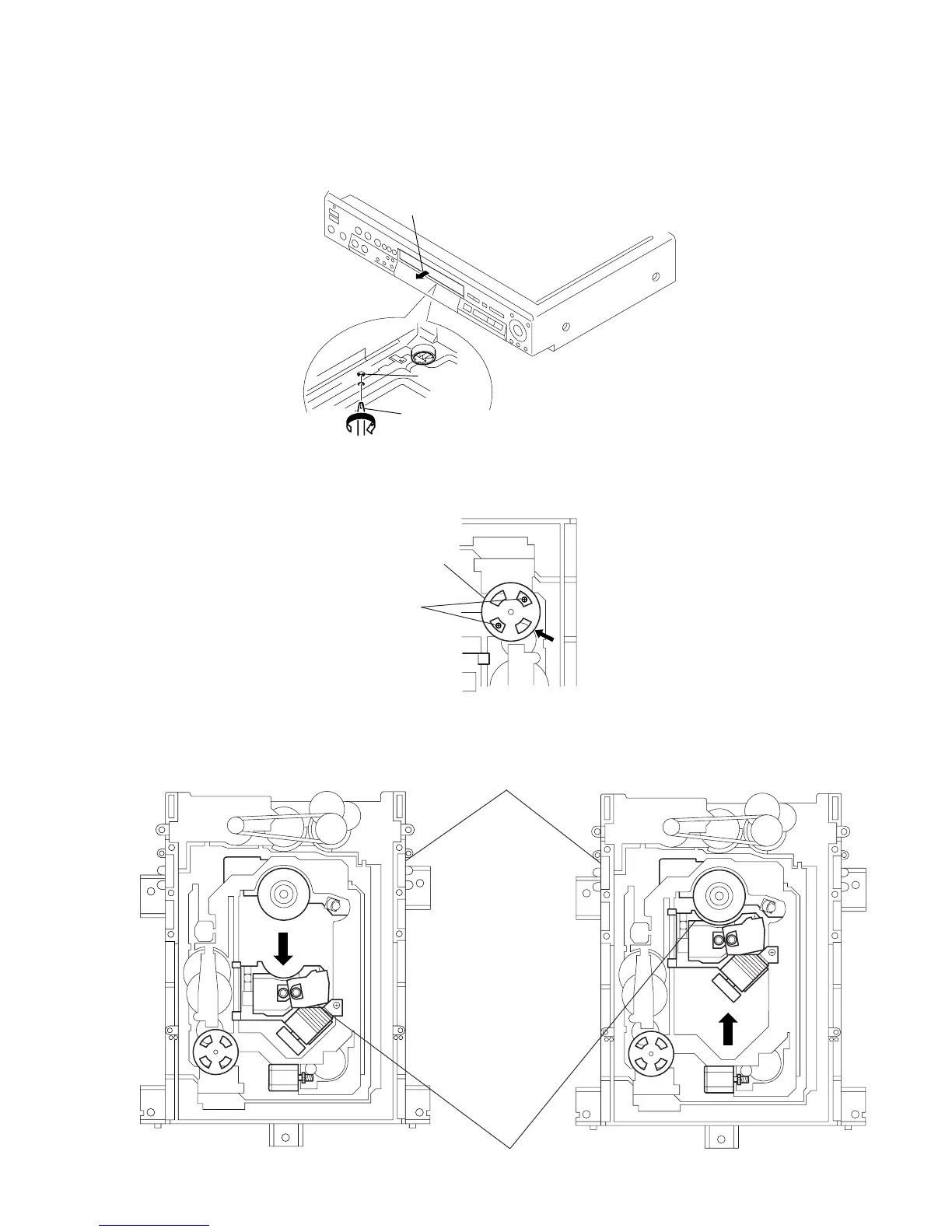

1. DISK REMOVAL PROCEDURE (at POWER OFF)
1) Insert a cross-tip screwdriver into a hole at the bottom, and rotate the cam gear 1 in direction A. (See Fig. 1)
Note: To prevent a damage of cam gear, rotate it in direction A by 1/4 turn.
2) Draw out the tray 2 in direction B by hand, and remove a disk. (See Fig. 1)
2. NOTE ON MOUNTING SLED MOTOR
1) Push the sled motor assy 1 toward direction A. (See Fig. 2)
2) Tighten two screws 2 (M1.7 × 2.5).
Fig. 2
3) Raising the MD block assy 3 90 º with the side down. confirm that the optical pick-up 4 falls by self weight. (See Fig. 3)
4) Further, with the front side of MD block assy 3 up, confirm that the optical pick-up falls by self weight.
DVP-K800D
Fig. 3
1 Sled motor assy
2 Two screws (M1.7 × 2.5)
3 MD block assy
4 Optical pick-up
Lower
Upper
Front side
Lower
Upper
Front side
A
B
⊕
Screw Driver
1 Cam gear
2 Tray
Fig. 1
