Sony DVP-K800D - Power Supply) Schematic Diagram

DVP-K800D

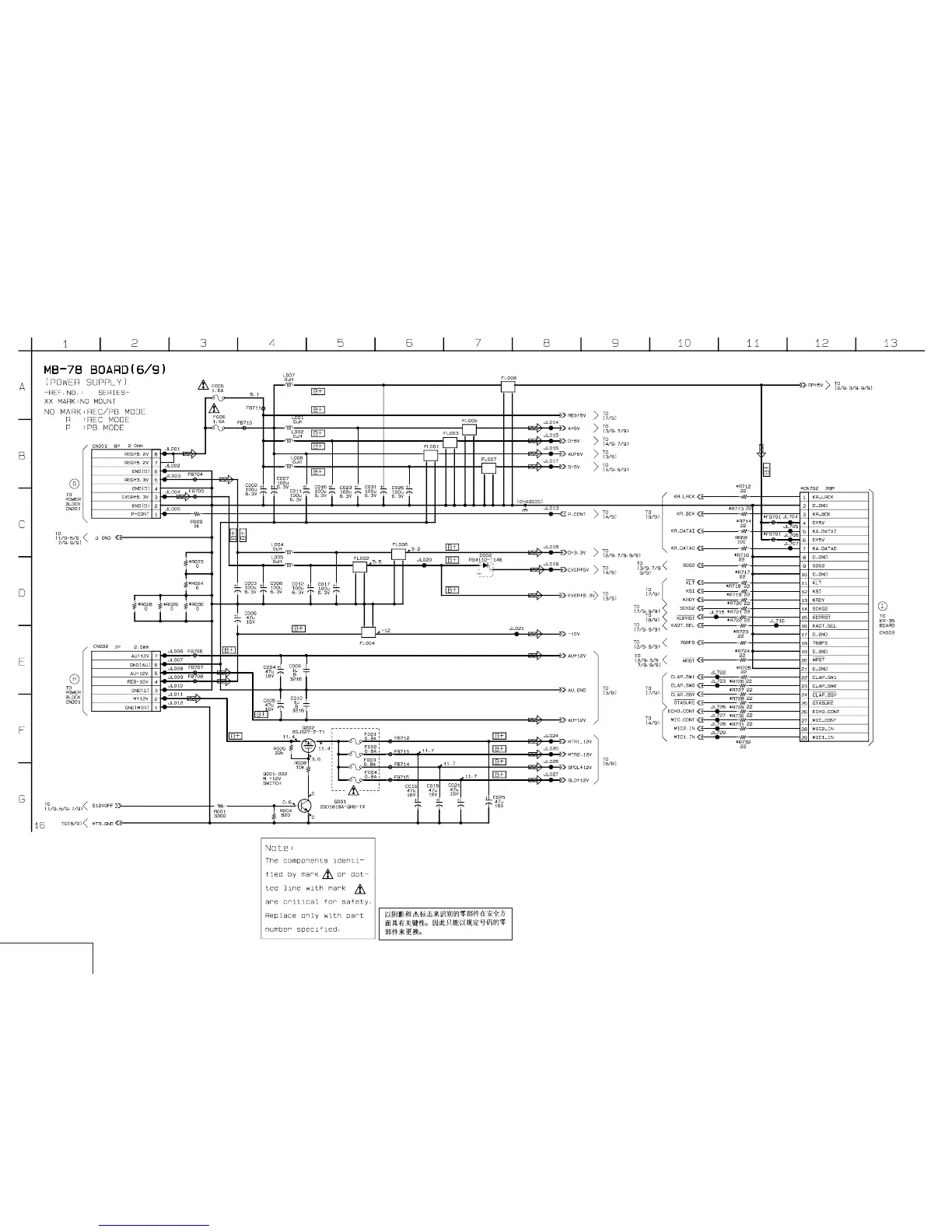

MB-78 (POWER SUPPLY) SCHEMATIC DIAGRAM
—Ref. No.: MB-78 Board; 1,000 Series—
• See page 4-13 for MB-78 BOARD printed wiring board.
4-31 4-32
POWER SUPPLY
MB-78 (6/9)
(SEE PAGE
4-78, 4-82)
(SEE PAGE
4-78, 4-82)
(SEE PAGE
4-59)
