Sony DVP-K800D - Video;Audio Input;Output) Printed Wiring Board

DVP-K800D

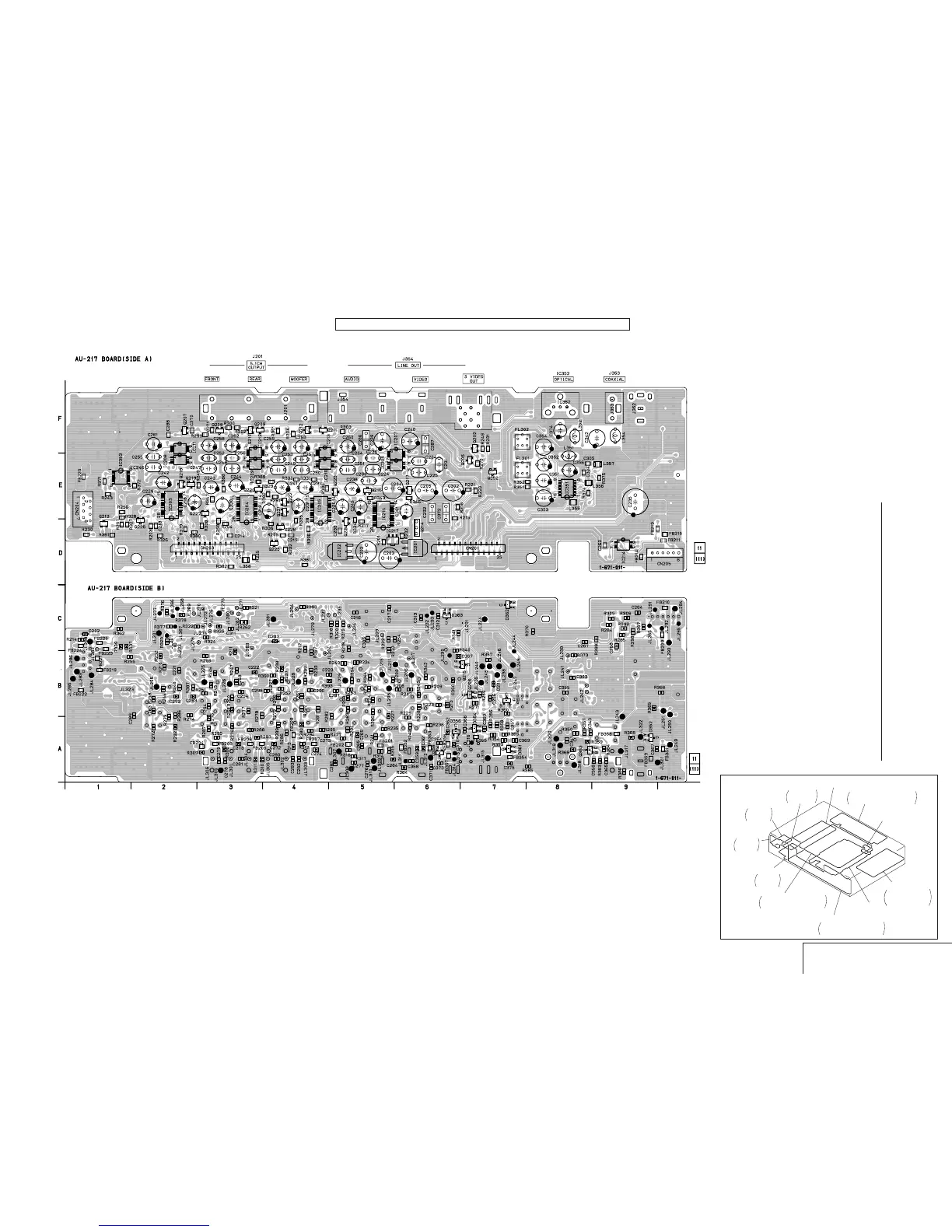

AU-217 (VIDEO/AUDIO INPUT/OUTPUT) PRINTED WIRING BOARD
—Ref. No.: AU-217 Board; 2,000 Series—
There are few cases that the part printed on this diagram isn’t mounted in this model.
AU-217 BOARD
CN201 D-7
CN203 D-3
CN204 E-1
CN205 D-9
D201 B-7
D202 C-1
D203 C-4
D354 B-7
D356 B-6
D358 A-6
D361 A-7
D362 C-7
D363 C-6
IC201 D-6
IC202 D-5
IC203 E-2
IC204 E-3
IC205 E-4
IC206 F-5
IC207 F-6
IC208 E-2
IC209 E-3
IC210 E-5
IC211 F-2
IC212 F-4
IC213 F-5
IC214 D-9
IC215 E-5
IC217 D-6
IC351 E-8
IC352 F-8
IC353 E-1
Q202 F-7
Q205 F-7
Q206 B-7
Q207 F-2
Q208 F-3
Q209 F-4
Q210 F-4
Q211 F-5
Q212 F-4
Q213 E-1
Q214 D-6
Q215 B-7
Q216 E-5
Q217 E-6
Q218 E-2
Q219 E-2
Q220 E-3
Q221 E-4
Q222 E-4
Q223 E-5
Q224 E-5
Q225 D-4
Q226 D-2
Q227 E-3
Q228 D-4
Q351 B-7
Q352 E-7
Q353 A-8
4-47 4-48
VIDEO/AUDIO INPUT/OUTPUT
AU-217
Power Block
AU-217
AUDIO D/A CONVERTER,
LINE OUT
FG-43
(SLED MOTOR)
TK-47
(RF, SERVO)
KR-35
KARAOKE
DSP/
MIC 3, 4 JACKS
FL-106
DISPLAY,
OPERATION SWITCHES
MB-78
VIDEO, SERVO/SYSTEM
CONTROL, AUDIO
MC-115
MIC 1, 2
JACKS
FR-156
POWER
SWITCH
HP-116
PHONES
JACK
VR-68
MIC/ECHO
LEVEL
