4. NOTE ON ASSEMBLING MECHANICAL DECK
4-1. Application of Grease

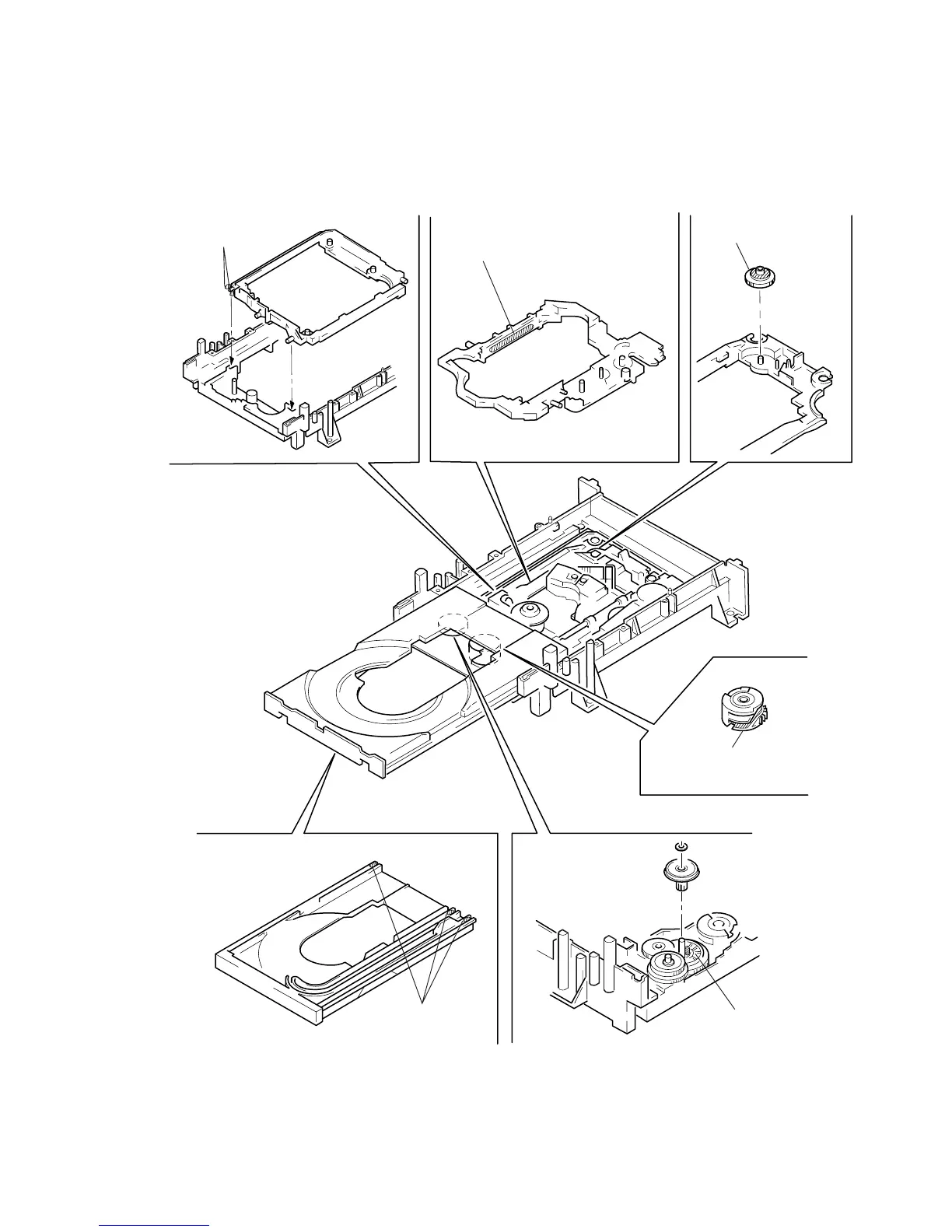

1) Grease must be applied if the following parts are replaced. (See Fig. 6)
Note 1: Recommended grease is Foil KG-70MP.
Note 2: In applying grease, take care not to allow grease to stick to other parts (particularly, rubber belt, spindle motor, and optical pick-up).
Fig. 6
Base unit holder
2 bosses
Loading pulley shaft
NOTE:Add grease if tray
generates noise
periodically.
Tray 3 grooves
NOTE:Add grease if tray
moves slowly.
Slide base
Skew cam
Cam gear
