DVP-K800D

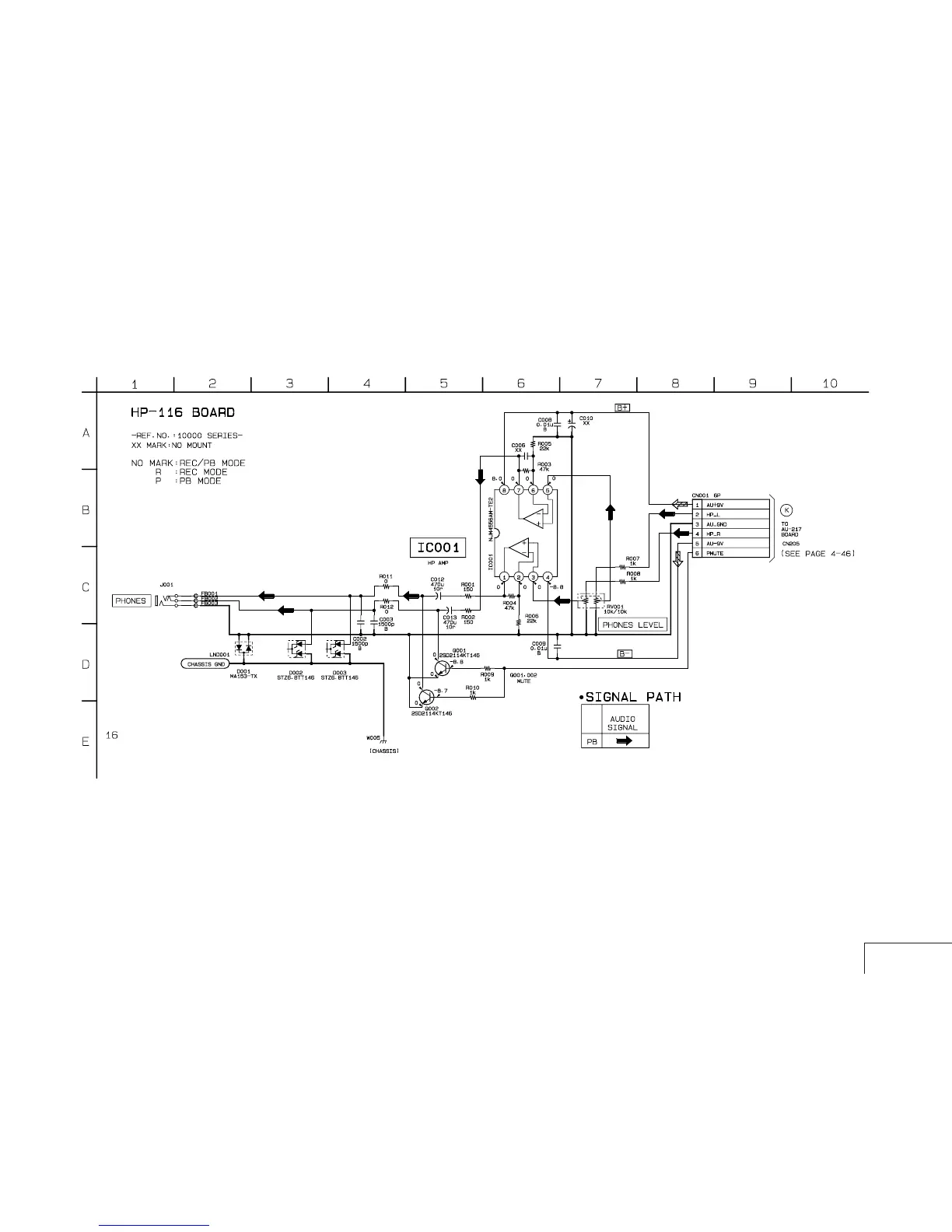

HP-116 (PHONES JACK) SCHEMATIC DIAGRAM
—Ref. No.: HP-116 Board; 2,000 Series—
PHONES JACK
HP-116
