8-5 8-6
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
* 201 3-975-066-01 STOPPER, SKEW SHAFT
* 202 3-975-061-01 INSULATOR
* 203 3-975-056-01 BASE, SPINDLE
204 3-975-058-01 CAM, SKEW
* 205 3-975-063-01 BASE, SLIDE
* 206 3-975-065-01 SHAFT, MAIN
! 207 8-820-005-02 OPTICAL PICK-UP KHS-180A/J1N
208 1-665-390-11 OP-15 FLEXIBLE BOARD
209 3-975-067-01 GEAR, RACK
* 210 3-975-064-01 RETAINER, SLED GEAR
* 211 A-6065-078-A FG-43 BOARD, COMPLETE
212 1-783-341-11 CABLE, FLAT (FMF-28) (8P)
* 213 3-975-059-01 RETAINER, SKEW GEAR
214 3-975-057-01 GEAR, SKEW
215 4-974-711-01 SCREW (2X5) (P TYIGHT), (+) PTTWH
216 4-974-725-01 SCREW (M1.7X2.5), P
218 A-4683-008-A GEAR ASSY, LIMITTER
219 4-974-720-01 GEAR (S-B)
220 3-053-092-01 GEAR (S-A) (2)
M501 X-3947-137-1 MOTOR ASSY, SLED
M901 1-698-944-11 MOTOR, DC (SPINDLE)
M903 X-3947-138-1 MOTOR ASSY, SKEW (TILT)
151 3-973-099-01 TRAY (B)
152 3-975-073-02 GEAR, CAM
153 3-975-087-01 GEAR, DRIVE
154 3-975-086-01 GEAR, TRAY DRIVING
155 3-975-072-01 GEAR, LOADING (MIDWAY)
156 3-975-071-01 PULLEY, LOADING
157 3-669-596-00 WASHER (2.3), STOPPER
158 3-975-070-01 BELT
159 3-975-085-01 PULLEY, MOTOR
160 3-975-089-01 BRACKET, PRESS PULLEY
* 161 3-975-074-01 PULLEY, PRESS
162 3-975-077-01 SCREW, BU STOPPER
* 163 3-975-088-01 HOLDER, BASE UNIT
* 164 X-3948-398-1 HOLDER ASSY, MD
* 165 A-6065-077-A TK-47 BOARD, COMPLETE
166 4-981-923-01 SCREW (M), STEP
M902 1-698-942-21 MOTOR (LOADING)
not
supplied
M902
#3
#7
#3
#3
154
155
157
156
153
158
159
152
160
161
166
166
163
162
164
165
151
207
206
215
208
209
215
210
219
#9
218
220
216
211
215
212
215
205
204
202
202
203
202
201
202
214
213
215
M501
M901
M903
#8

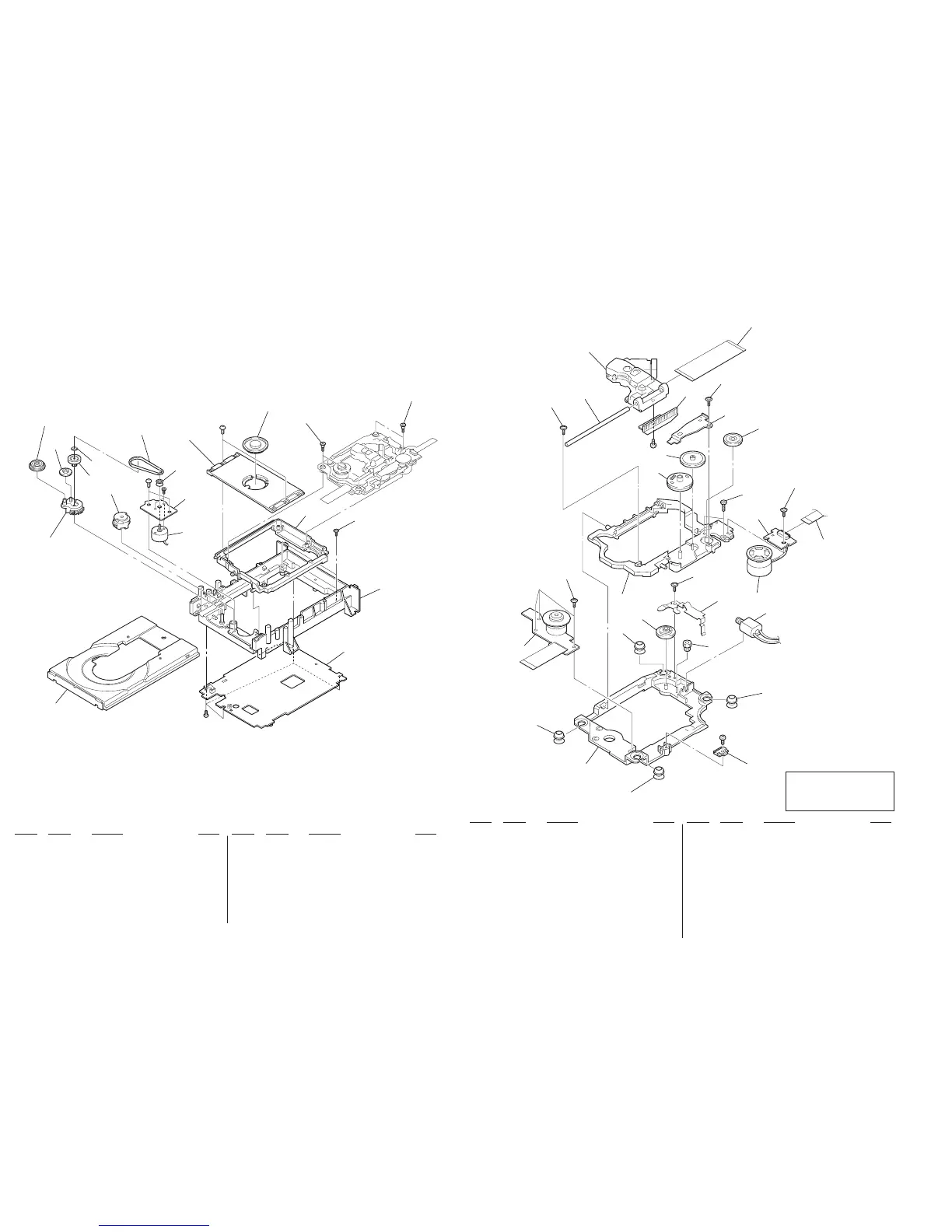

8-1-4. DVD MECHANISM CHASSIS ASSEMBLY (1) 8-1-5. DVD MECHANISM CHASSIS ASSEMBLY (2)
The components identified by mark
! or dotted line with mark ! are criti-
cal for safety.
Replace only with part number speci-
fied.
To Next Page
