Sony DVP-S7700 Service Manual

DVP-S7700
4-11 4-12
RF, SERVO 1
TK-47 (1/2)

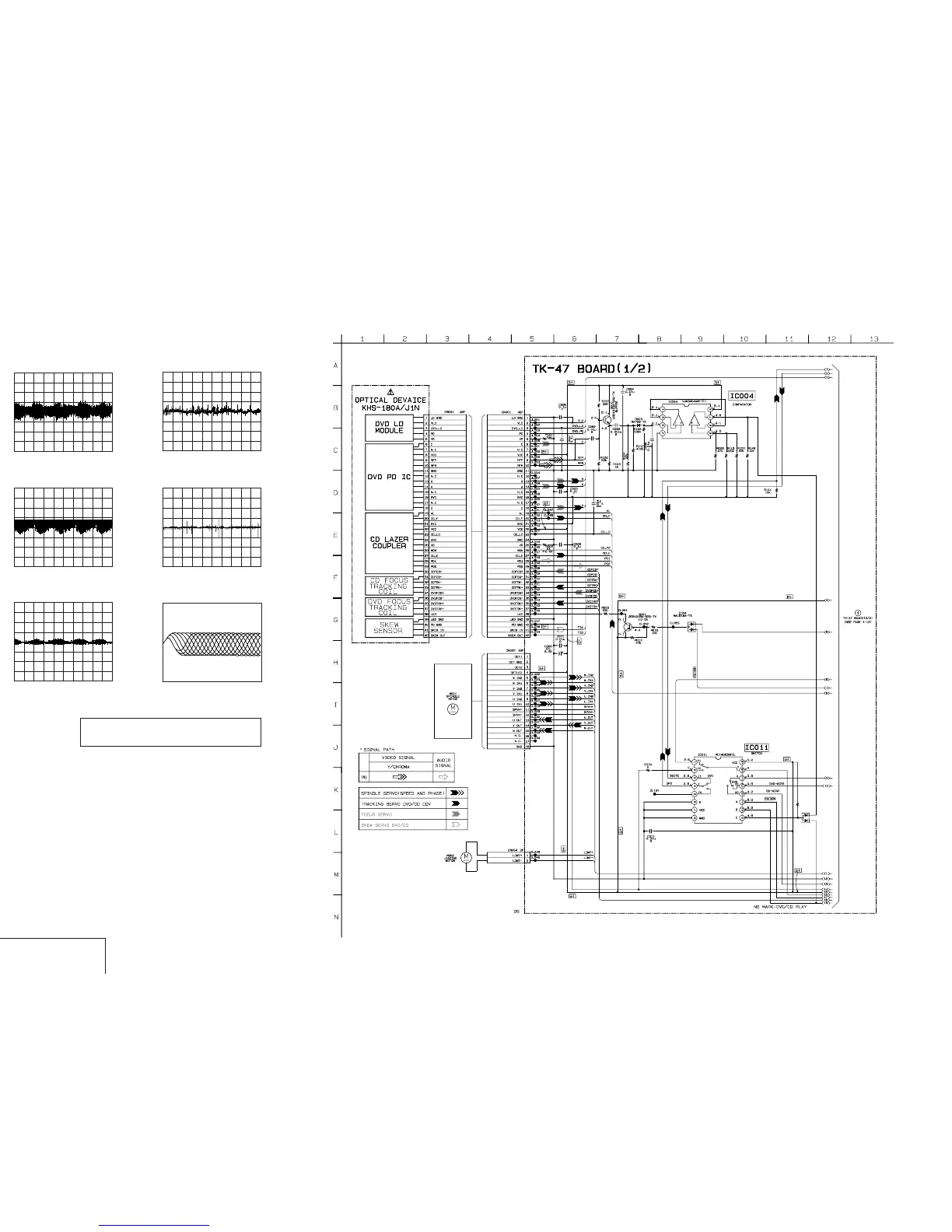

TK-47 (RF, SERVO 1) SCHEMATIC DIAGRAM
– Ref. No.: TK-47 board; 3,000 series –
• Waveforms
1 IC006 %¡ – %™ (DVD play)
270 mVp-p (V)
2 IC006 ^¡ – ^™ (DVD play)
1.2 Vp-p (V)
3 IC006 ^£ – ^¢ (DVD play)
800 mVp-p (V)
4 IC005 !£ (CD play)
500 mV/DIV 1 ms/DIV
5 IC005 !∞ (CD play)
500 mV/DIV 10 ms/DIV
6 IC005 @™ (CD play)
500 mV/DIV 1 µs/DIV
Note:The components identified by mark ! or dotted line
with mark ! are critical for safety.
Replace only with part number specified.
DVD_FE
D006
MA151WA-TX
R018
22k
