Sony DVP-S7700 Service Manual

DVP-S7700
4-25 4-26
• Waveforms
1 IC252 &¢
0.7 Vp-p (H)
1 IC252 &¢
(AEP, UK model: RGB output mode)
0.7 Vp-p (H)
2 IC252 &™
1.0 Vp-p (H)
2 IC252 &™
(AEP, UK model: RGB output mode)
0.7 Vp-p (H)
3 IC252 ^§
0.7 Vp-p (H)
3 IC252 ^§
(AEP, UK model: RGB output mode)
0.7 Vp-p (H)
4 IC252 ^¢
1.0 Vp-p (H)
5 IC252 %•
0.7 Vp-p (H)
6 IC252 %§
1.1 Vp-p (H)

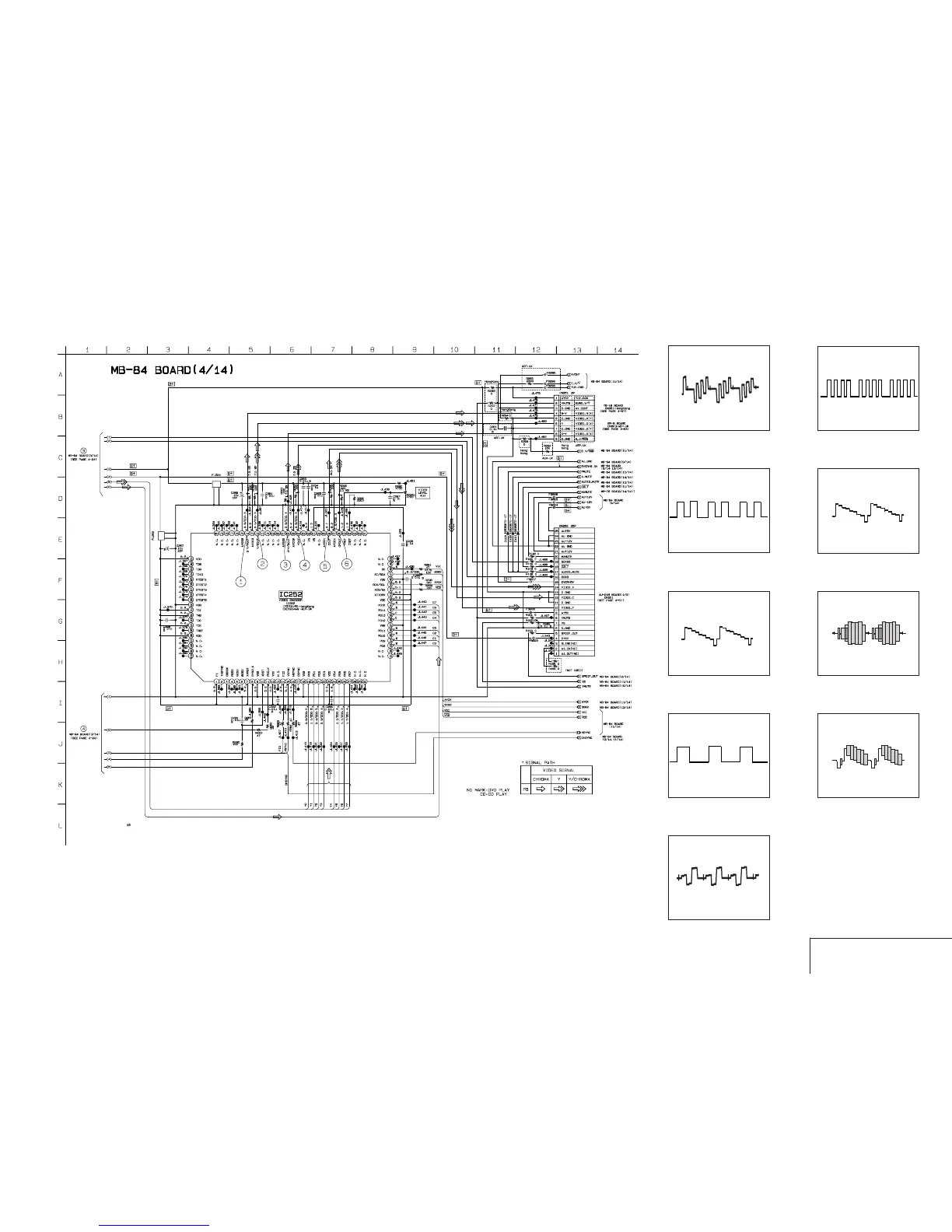

MB-84 (VIDEO ENCODER) SCHEMATIC DIAGRAM • See page 4-15 to 4-18 for printed wiring board.
– Ref. No.: MB-84 board; 2,000 series –
VIDEO ENCODER
MB-84 (4/14)

Sony DVP-S7700 Specifications

General

Type	DVD player
Video Output	Composite, S-Video, Component
Digital Output	Coaxial, Optical
Signal-to-Noise Ratio	115 dB
Audio Format	Dolby Digital, DTS
Disc formats	CD, CD-R, CD-RW
Output Resolution	480p
Audio Output	Stereo
Output Level	2.0 Vrms
Dimensions	430 x 98 x 360 mm
DAC	24-bit/96kHz
Channels	2
