Sony DVP-S7700 - Schematic Diagrams

DVP-S7700
4-77 4-78

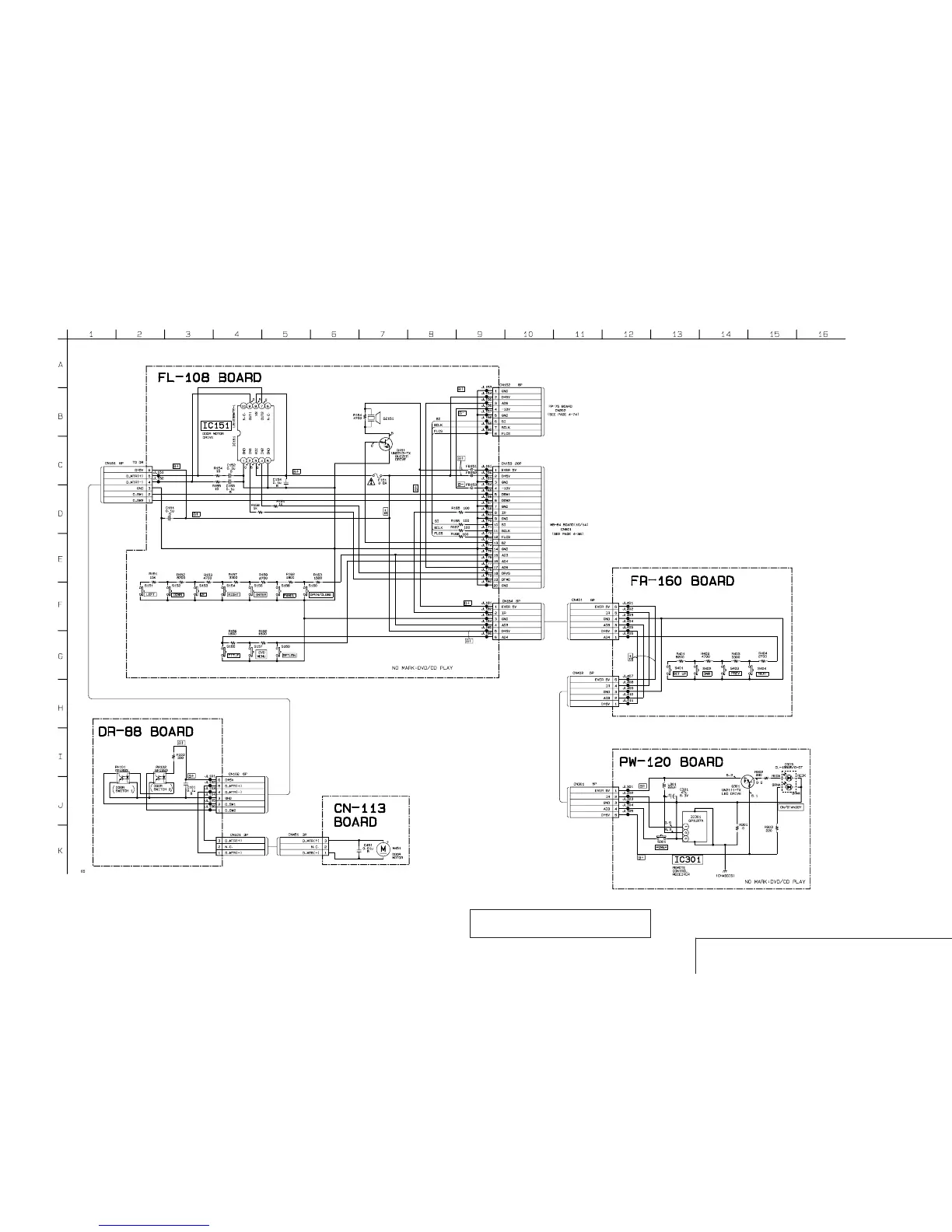

CN-113 (DOOR MOTOR), DR-88 (DOOR SENSOR), FL-108 (FUNCTION SWITCH), FR-160 (FUNCTION SWITCH), PW-120 (IR/POWER SWITCH) SCHEMATIC DIAGRAMS
– Ref. No.: CN-113 board, DR-88 board, FL-108 board, FR-160 board, PW-120 board; 1,000 series –
FUNCTION SWITCH, DOOR MOTOR
CN-113, DR-88, FL-108, FR-160, PW-120
Note:The components identified by mark ! or dotted line
with mark ! are critical for safety.
Replace only with part number specified.
