Sony DXC-637 - Viewfinder Advanced Menus

(43)dZ€9-OXxd
(on)ze9-Oxd
6lL-b

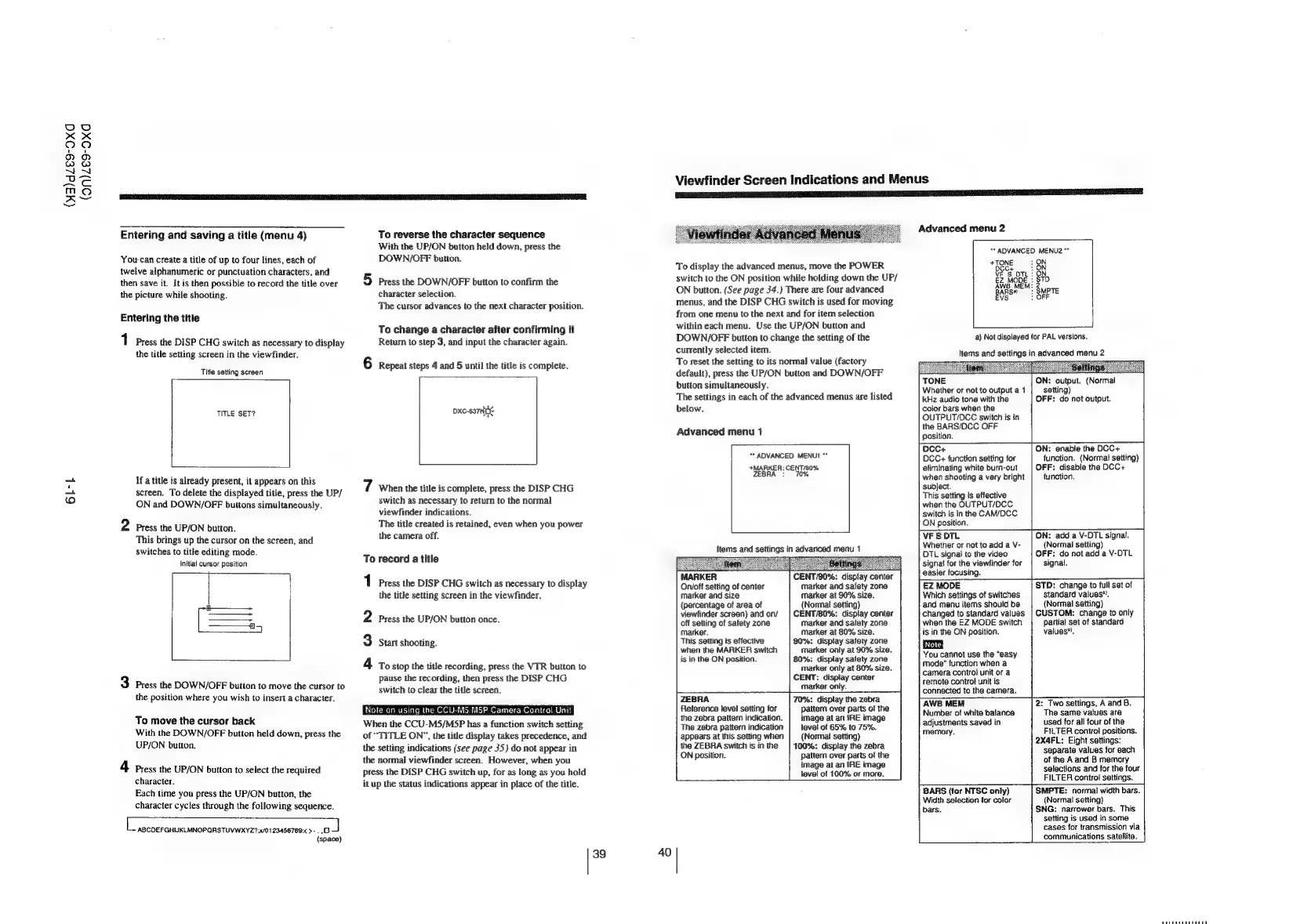

Entering and saving a title (menu 4)
You-can create a title of up to four lines, each of
twelve alphanumeric or punctuation characters, and
then save it. It is then possible to record the title over
the picture while shooting.
Entering the title
1 Press the DISP CHG switch as necessary to display
the title setting screen in the viewfinder.
Title setting screen
TITLE SET?
If a title is already present, it appears on this
screen. To delete the displayed title, press the UP/
ON and DOWN/OFF buttons simultaneously.
2 Press the UP/ON button.
This brings up the cursor on the screen, and
switches to title editing mode.
Initial cursor position
3 Press the DOWN/OFF button to move the cursor to
the position where you wish to insert a character.
To move the cursor back
With the DOWN/OFF button held down, press the
UP/ON button.
4 Press the UP/ON button to select the required
character.
Each time you press the UP/ON button, the
character cycles through the following sequence.
LEaepee aiuiahaience iaivoe cose EaTaNCS : 4
(space)
To reverse the character sequence
With the UP/ON button held down, press the
DOWN/OFF button.
5 Press the DOWN/OFF button to confirm the
character selection.
The cursor advances to the next character position.
To change a character after confirming it
Return to step 3, and input the character again.
6 Repeat steps 4 and 5 until the title is complete.
Oxc-637KO>
7 When the title is complete, press the DISP CHG
switch as necessary to return to the normal
viewfinder indications.
The title created is retained, even when you power
the camera off.
To record a title
1 Press the DISP CHG switch as necessary to display
the title setting screen in the viewfinder.
2 Press the UP/ON button once.
3 Start shooting.
To stop the title recording, press the VTR button to
pause the recording, then press the DISP CHG
switch to clear the title screen.
When the CCU-M5/M5P has a function switch setting
of “TITLE ON”, the title display takes precedence, and
the setting indications (see page 35} do not appear in
the normal viewfinder screen. However, when you
press the DISP CHG switch up, for as long as you hold
it up the status indications appear in place of the title.
39
40
Viewfinder Screen Indications and Menus
Eee reece RS
To display the advanced menus, move the POWER
switch to the ON position while holding down the UP/
ON button. (See page 34.) There are four advanced
menus, and the DISP CHG switch is used for moving
from one menu to the next and for item selection
within each menu. Use the UP/ON button and
DOWN/OFF button to change the setting of the
currently selected item.
To reset the setting to its normal value (factory
default), press the UP/ON button and DOWN/OFF
button simultaneously.
The settings in each of the advanced menus are listed
below.
Advanced menu 1
** ADVANCED MENUt **
MARKER: CENT/80%
1 10%
ZEBRA
Items and settings in advanced menu 1
ER
On/off setting of center
marker and size
(percentage of area of
viewfinder screen) and on/
off setting of safety zone
marker.
This setting is effective
when the MARKER switch
is in the ON position.
CENT/90%: display center
marker and safety zone
marker at 90% size.
{Normal setting)
CENT/80%: display center
marker and safety zone
marker at 80% size.
90%: display safety zone
marker only at 90% size.
80%: display safety zone
marker only at 80% size.
CENT: display center
marker only.
ZEBRA 70%: display the zebra
Reference level setting for pattern over parts of the
the zebra pattern indication.
The zebra pattern indication
appears at this setting when
the ZEBRA switch is in the
ON position.
image at an !RE image
level of 65% to 75%.
(Normal setting)
100%: display the zebra
pattern over parts of the
image at an IRE image
level of 100% or more.
Advanced menu 2
** ADVANCED MENU2 “*
*TONE : ON
GES on | ON
Sa eR a Bie
Annee: SMPTE
EVs F
a) Not displayed for PAL versions.
items and settings in advanced menu 2
AsLial
TONE
Whether or not to output a 1
kHz audio tone with the
color bars when the
OUTPUT/DCC switch is in
the BARS/DCC OFF
position.
DCC+
DCC+ function setting for
eliminating white burn-out
when shooting a very bright
subject.
This setting is effective
when the OUTPUT/DCC
switch is in the CAM/DCC.
ON position.
ON: output. (Normal
setting)
OFF: do not output.
ON: enable the DCC+
function. (Normal setting)
OFF: disable the DCC+
function.
VF S OTL
Whether or not to add a V-
DTL signal to the video
signal for the viewfinder for
ON: add a V-DTL signal.
(Normal setting)
OFF: do not add a V-DTL
signal.
easier focusing.
EZ MODE STD: change to full set of
Which settings of switches Standard values”.
and menu items should be
changed to standard values
when the EZ MODE switch
is in the ON position.
You cannot use the “easy
mode” function when a
camera control unit or a
remote contro} unit is
connected to the camera.
(Normal setting)
CUSTOM: change to only
partial set of standard
values”),
AWB MEM
Number of white balance
adjustments saved in
memory.
BARS (for NTSC only)
Width selection for color
bars.
2: Two settings, A and B,
The same values are
used for all four of the
FILTER control positions.
2X4FL: Eight settings:
separate values for each
of the A and B memory
selections and for the four
FILTER control settings.
SMPTE: normal width bars.
(Normal setting)
SNG: narrower bars. This
setting is used in some
cases for transmission via
communications satellite.
