Sony HCD-CP33 - Page 17

17

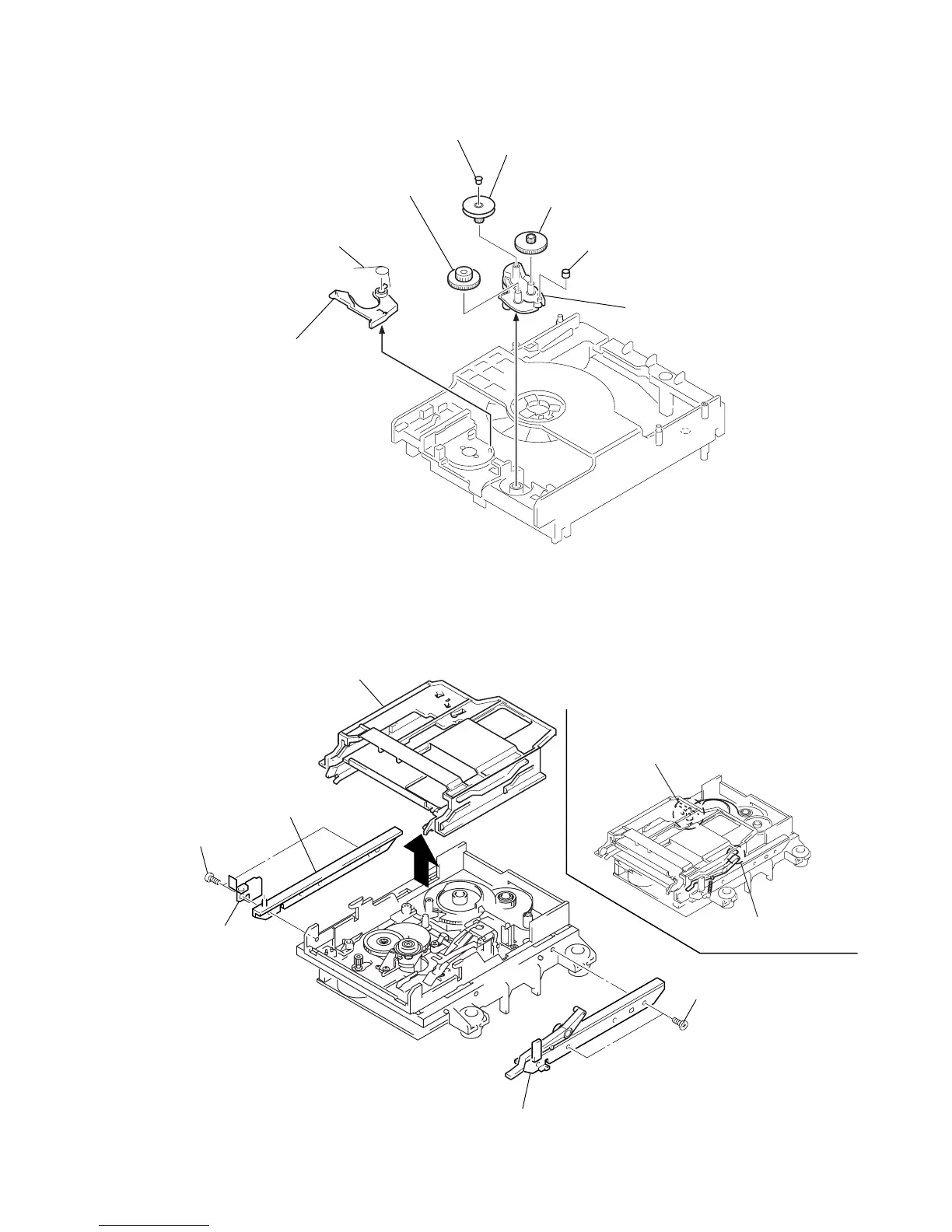

3-9. CAM
3-10. SLIDER (CAM)
1 Two screws (BTP2.6x6)
2 Bracket (Guide L)
3 Leaf spring
5 Bracket (Guide R)
6 Slider (Cam)
4 Two screws (BTP2.6x6)
Set the shaft of Lever (O/C) to
be at the position in the figure.
Set the shaft of Cam gear to
be at the position in the figure.
1 Torsion spring
2 SW lever
3 Pulley
5 Gear
6 Gear
7 Roller
8 Cam
4 Spacer (55)
