HCD-CP33
4848

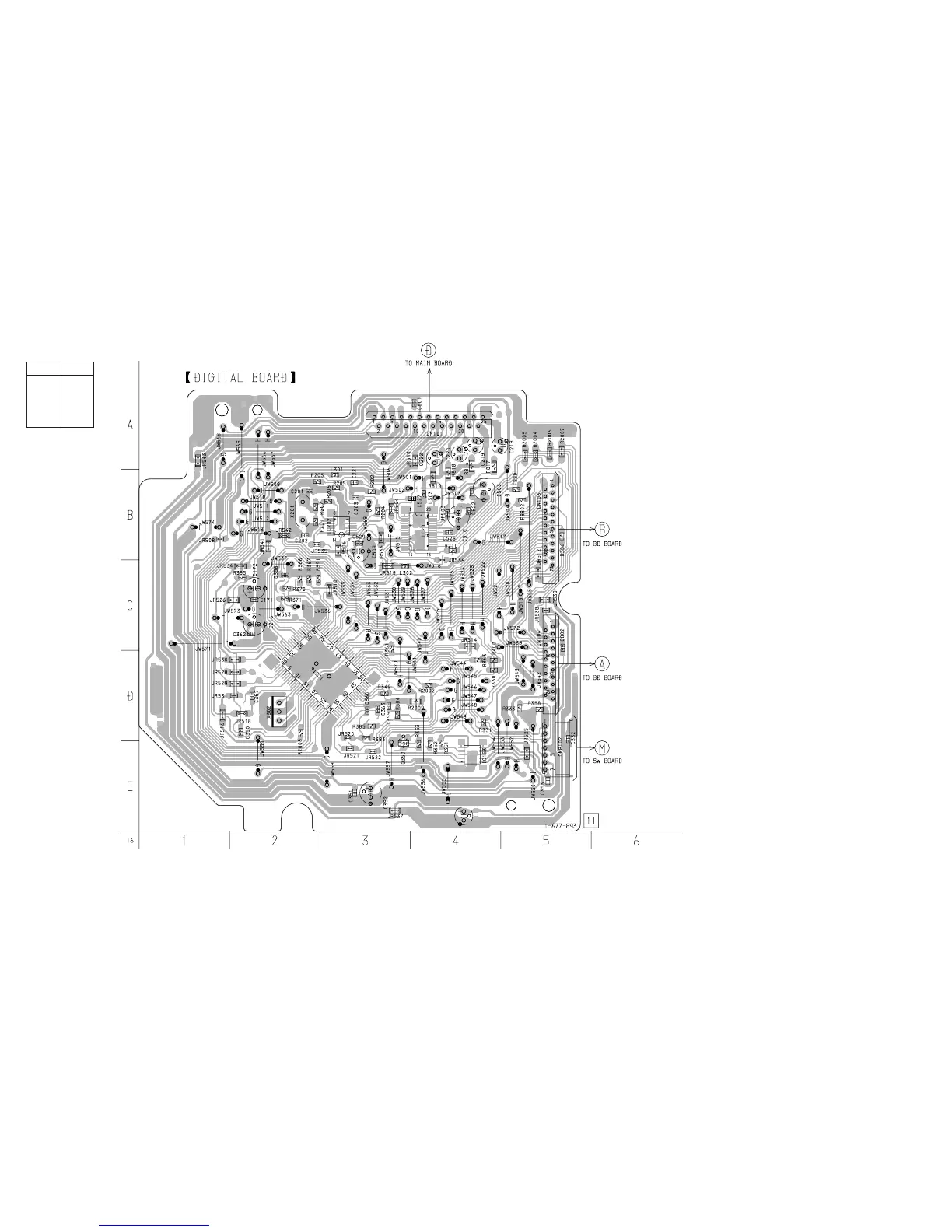

7-15. Printed Wiring Board – DIGITAL Section –
• See page 35 for Circuit Boards Location.
(Page 42)
(Page 41)
(Page 41)
(Page 45)
Ref. No. Location
IC153 E-4
IC201 B-4
IC202 B-3
IC316 D-2
Q350 E-3
• Semiconductor
Location
