Sony HCD-CP33 - BD Section Schematic Diagram (Part 2); BD Schematic Diagram (2;2)

HCD-CP33
4040
(Page 39)
(Page 39)
(Page 39)
(Page 39)
(Page 39 )
(Page 39)
(Page 39)
TO
DIGITAL
BOARD
(Page 49)
TO
DIGITAL
BOARD
(Page 49)
BA033FP-E2
16

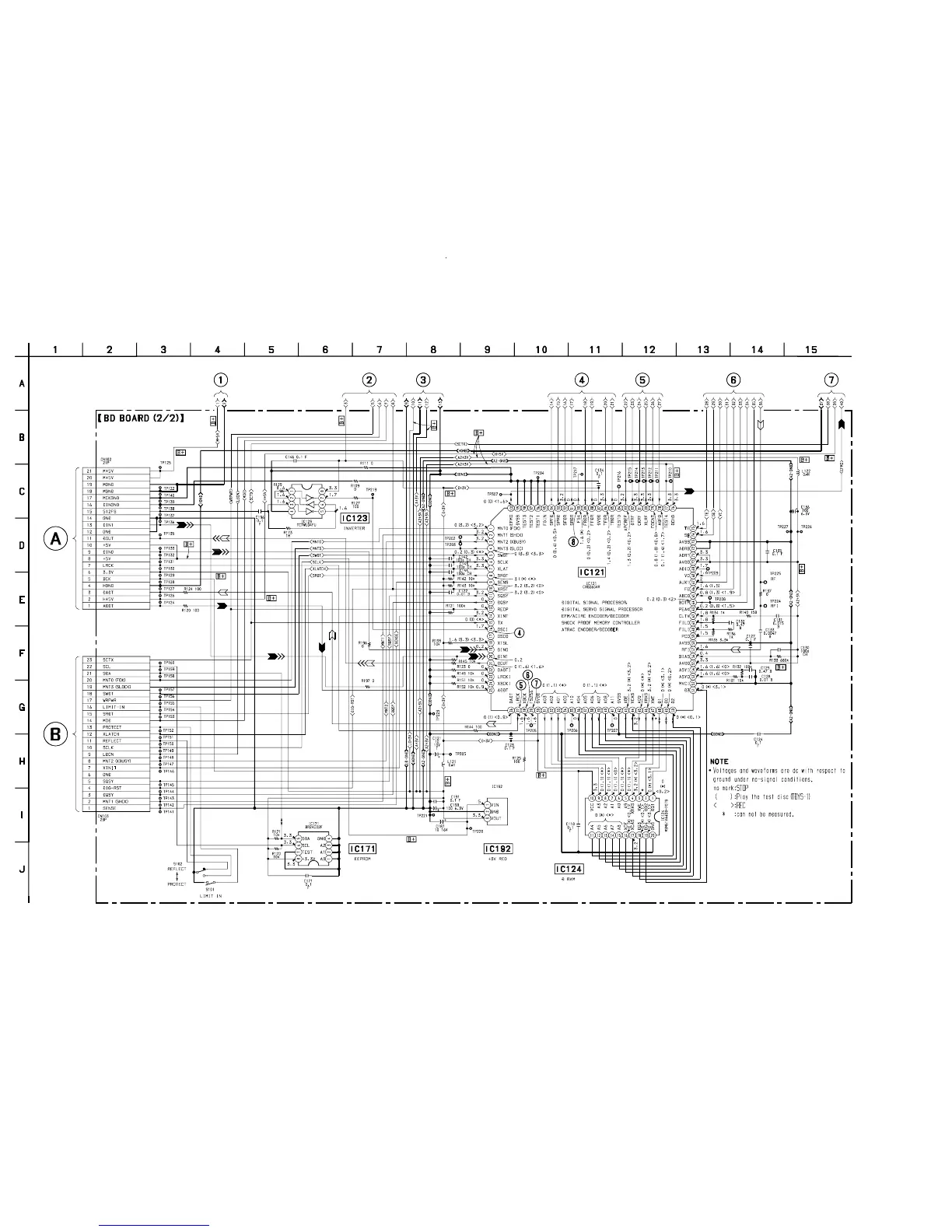

7-6. Schematic Diagram – BD (2/2) Section –
• See page 35 for Waveforms. • See page 53 for IC Block Diagrams. • See page 58 for IC Pin Functions.
