Sony HCD-CP33 - Main Section Printed Wiring Boards; Main Printed Wiring Board Layout

HCD-CP33
4242

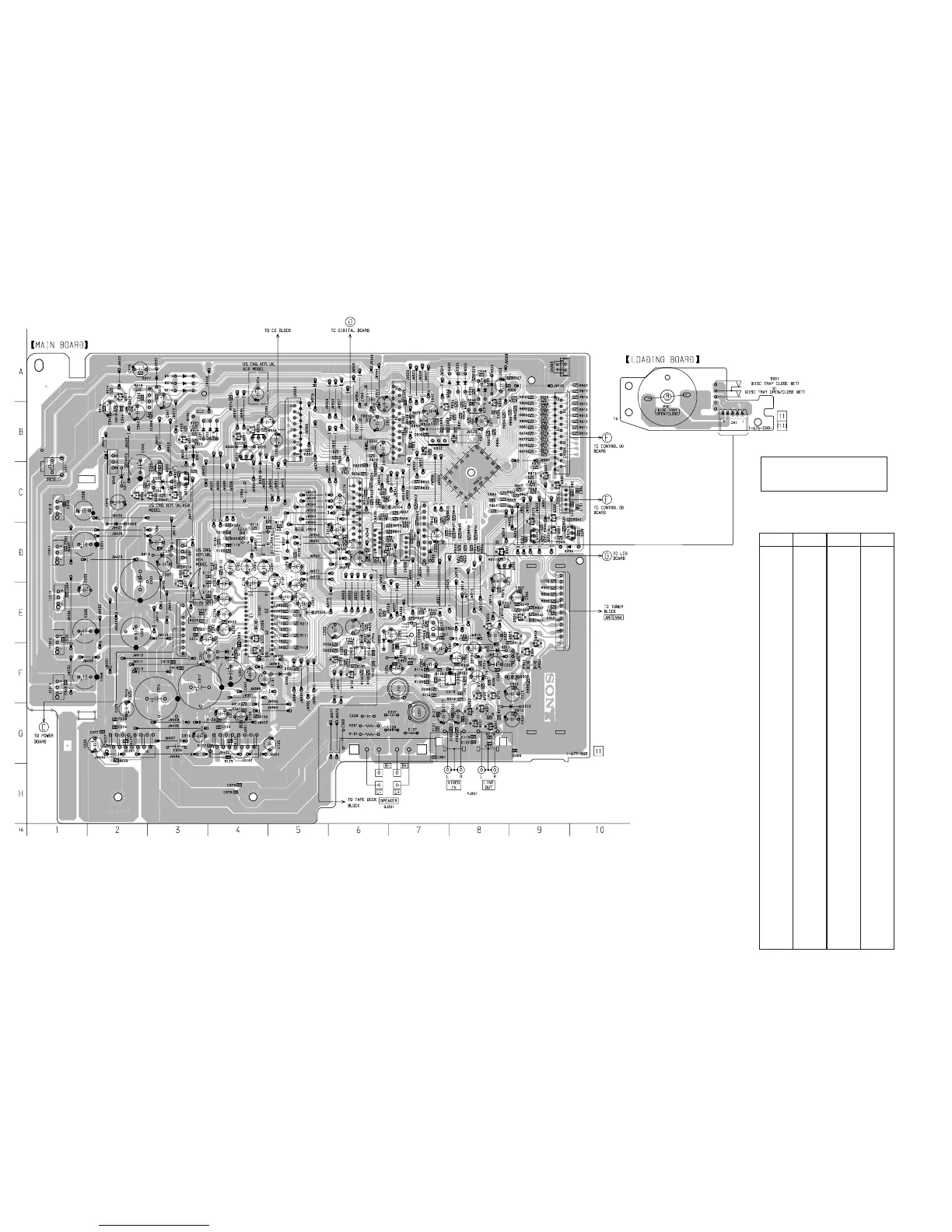

7-8. PRINTED WIRING BOARD – MAIN Section –• See page 35 for Circuit Boards Location.
(Page 46)
(Page 46)
(Page 46)
(Page 48)
(Page 50)
Note
CD block, tape deck block and
tuner pack are supplied with
the assembled block.
• Semiconductor Location
Ref. No. Location
D301 F-4
D302 F-4
D303 D-2
D306 D-9
D307 B-3
D308 B-4
D309 C-4
D310 G-9
D311 F-8
D312 D-3
D314 A-3
D315 A-3
D316 A-3
D317 C-7
D319 B-4
D320 B-4
D321 B-3
D322 A-8
D323 A-8
D324 A-8
D325 A-8
D326 A-8
D327 A-3
D328 A-7
D330 D-7
D331 F-7
D332 E-6
D333 C-3
D334 C-3
D336 F-5
D337 D-5
IC101 G-4
IC201 G-2
IC301 E-4
IC302 F-6
IC303 F-8
IC304 D-4
IC306 C-8
IC307 D-7
IC308 B-2
IC309 E-7
IC310 E-1
IC311 D-1
IC312 E-1
IC313 C-1
IC314 F-1
IC316 B-8
Ref. No. Location
Q101 G-8
Q102 F-6
Q103 F-8
Q201 G-8
Q202 F-6
Q203 F-8
Q301 G-8
Q302 G-8
Q303 F-9
Q304 F-9
Q305 E-9
Q306 E-8
Q307 F-9
Q308 E-9
Q309 D-3
Q310 D-3
Q311 D-3
Q312 A-2
Q313 B-2
Q315 C-3
Q316 C-3
Q317 B-3
Q318 A-8
Q319 B-7
Q320 B-4
Q321 B-4
Q322 B-4
Q323 B-4
Q324 D-9
Q325 C-9
Q326 D-9
Q327 D-9
Q328 C-9
Q329 E-9
Q330 C-9
Q331 C-9
Q332 C-3
Q333 C-3
Q334 C-2
Q335 D-8
Q337 D-8
Q338 F-4
Q339 E-4
Q340 C-2
