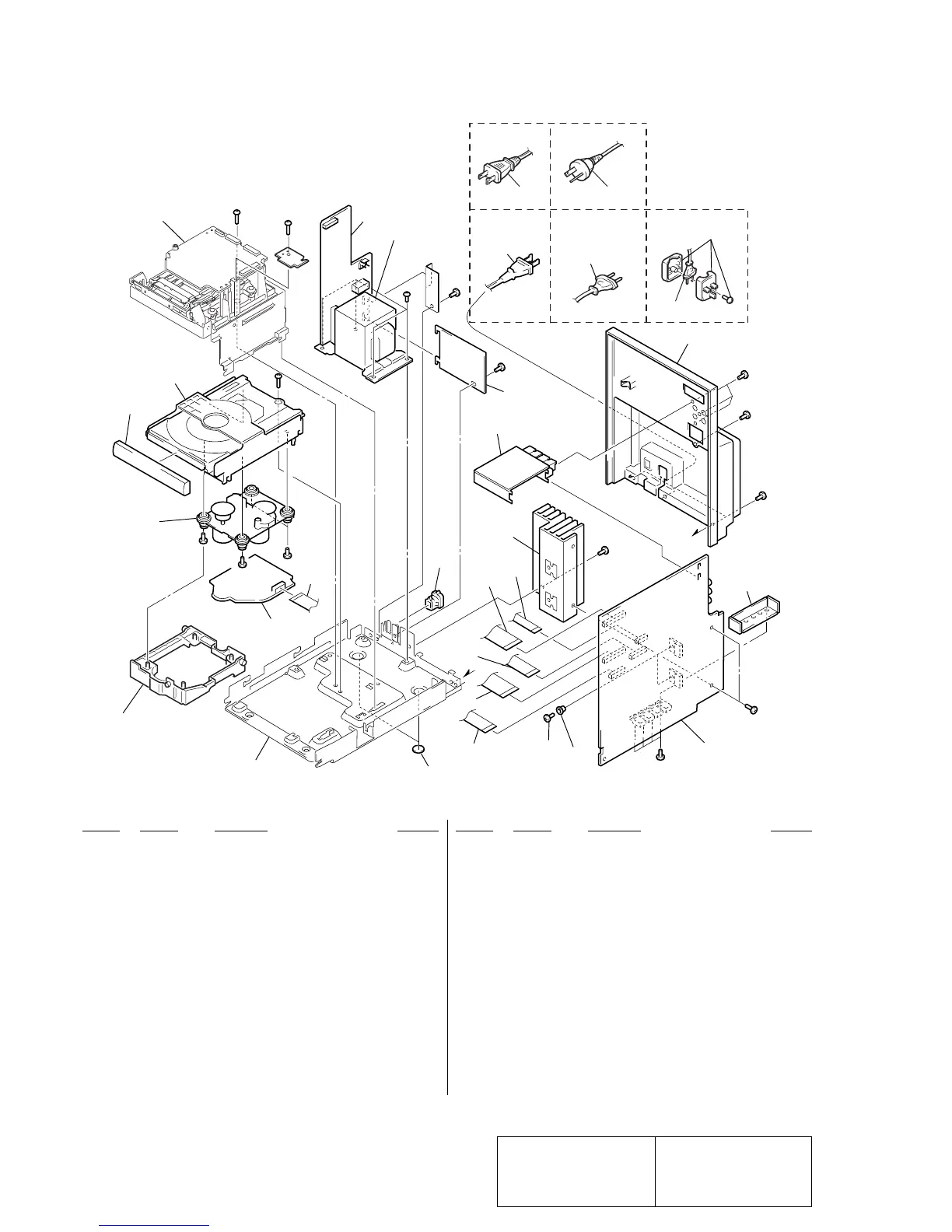

8-3. CHASSIS SECTION
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
UK,HK
AEP,AED,SP,
MY,TH,TW,KR
E,JE,AR
not
supplied
#1
not
supplied
#1
#1
#5
#5
not
supplied
#4
T901
not
supplied
not
supplied
#1
#1
#1
#1
101
113
114
118
117
116
114
115
102
106
103
104
108
109
110
110
110
112
107
105
#1
#1
#1
#1
#5
MD mechanism
CD mechanism
optical
pick-up
section
US, CND
110 110
AUS
101 4-228-282-01 LID(CD)
102 4-217-355-01 FOOT
* 103 4-217-354-01 BUSHING, INSULATING
104 A-4473-144-A MAIN BOARD, COMPLETE
(E,JE,AR,SP,MY,TH,TW,KR,HK,AUS)
104 A-4473-152-A MAIN BOARD, COMPLETE (AEP,UK,AED)
104 A-4473-153-A MAIN BOARD, COMPLETE (US,CND)
105 1-677-889-11 POWER BOARD
106 4-931-757-31 SCREW(DIA.2.6X8)(IT3B),TAPPING
107 4-228-280-01 PANEL, BACK (AEP,UK,AED)
107 4-228-280-11 PANEL, BACK (US,CND,AUS)
107 4-228-280-21 PANEL, BACK (E,JE,AR,SP,MY,TH,TW,KR,HK)
108 4-217-350-01 STOPPER, CORD
109 A-4428-924-A TUNER BLOCK
0 110 1-690-608-11 CORD, POWER (AUS)
0 110 1-696-169-11 CORD, POWER
(AEP,UK,AED,SP,MY,TH,TW,KR,HK)
0 110 1-775-789-81 CORD, POWER (E,JE,AR)
0 110 1-783-531-71 CORD, POWER (US,CND)
0 112 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK,HK)
113 A-4699-893-A BD BOARD, COMPLETEw
114 1-792-767-11 WIRE (FLAT TYP) (25 CORE)
115 1-792-765-11 WIRE (FLAT TYP) (19 CORE)
116 1-792-766-11 WIRE (FLAT TYP) (21 CORE)
117 1-792-768-11 WIRE (FLAT TYP) (25 CORE)
118 1-792-769-11 WIRE (FLAT TYP) (9 CORE)
0 T901 1-435-385-11 TRANSFORMER, POWER (US,CND)
0 T901 1-435-386-11 TRANSFORMER, POWER
(AEP,UK,AED,AUS,TH,KR)
0 T901 1-435-628-11 TRANSFORMER, POWER
(E,JE,AR,SP,MY,TW,HK)
