Iop = 82.5 mA in this case
Iop (mA) = Digital voltmeter reading (mV)/1 (
Ω
)
6. Rotate the AMS dial so that the reading of the laser power
meter becomes 6.9 to 7.1 mW, press the ENTER/YES button
and save it.
Note : Do not perform the emission with 7.0 mW more than 15
seconds continuously.
7. Then, rotate the AMS dial and display “LDPWR CHECK”.
8. Press the ENTER/YES button once and display “LD 0.9 mW
$ ”. Check that the reading of the laser power meter become
0.85 to 0.91 mW.
9. Press the ENTER/YES button once more and display “LD 7.0
mW $ ”. Check that the reading the laser power meter and
digital volt meter satisfy the specified value.
Note down the digital voltmeter reading value.
Specified Value :
Laser power meter reading : 7.0 ± 0.1 mW
Digital voltmeter reading : Optical pick-up displayed value ± 10%
(Optical pick-up label)
10. Press the MENU/NO button and display “LDPWR CHECK”
and stop the laser emission.
(The MENU/NO button is effective at all times to stop the
laser emission.)
11. Rotate the AMS knob to display “Iop.Write”.
12. Press the ENTER/YES button. When the display becomes
Ref=@@@.@ (@ is an arbitrary number), press the ENTER/
YES button to display “Measu=@@@.@” (@ is an arbitrary
number).
13. The numbers which can be changed will blink. Input the Iop
value noted down at step 9.
To select the number : Rotate the AMS dial.
To select the digit : Press the AMS dial.
14. When the ENTER/YES button is pressed, “Complete!” will
be displayed momentarily. The value will be recorded in the
non-volatile memory and the display will become “Iop Write”.
Note 1: After step 4, each time the ENTER/YES button is
pressed, the display will be switched between “LD 0.7
mW $ ”, “LD 6.2 mW $ ”, and “LD WP $ ”.
Nothing needs to be performed here.
(For details of the method for checking
this value, refer to “7-8. Recording and
Displaying IOP Information”.)

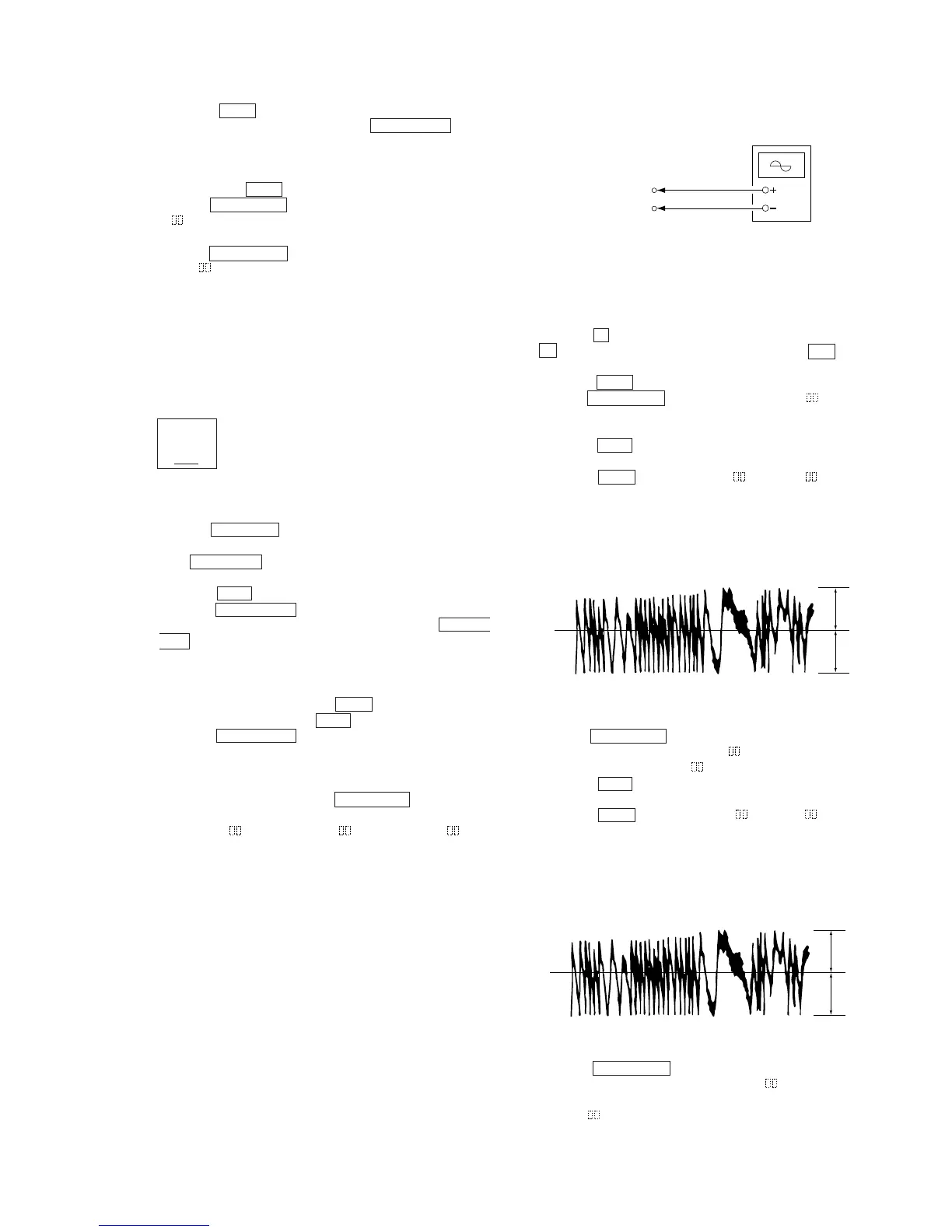

6-11. TRAVERSE ADJUSTMENT
Connection :
Adjusting Procedure :
1. Connect an oscilloscope to CN110 pin 3 (TE) and CN110 pin
1 (VC) of the BD board.
2. Load a disc (any available on the market). (Refer to Note 1.)
3. Press the x button and display the “MD”, and then press the
x button and display the “MD”, and then press the M button
and move the optical pick-up outside the pit.
4. Rotate the AMS dial and display “EF MO ADJUS” (C11).
5. Press the ENTER/YES button and display “EFB =
MO-R”.
(Laser power READ power/Focus servo ON/tracking servo OFF/
spindle (S) servo ON)
6. Rotate the AMS dial so that the waveform of the oscilloscope
becomes the specified value.
(When the AMS dial is rotated, the of “EFB= ” changes
and the waveform changes.) In this adjustment, waveform varies
at intervals of approx. 2%. Adjust the waveform so that the
specified value is satisfied as much as possible.
(Read power traverse adjustment)
(Traverse Waveform)
7. Press the ENTER/YES button and save the result of adjustment
to the non-volatile memory (“EFB = SAVE” will be displayed
for a moment. Then “EFB = MO-W” will be displayed).
8. Rotate the AMS dial so that the waveform of the oscilloscope
becomes the specified value.
(When the AMS dial is rotated, the of “EFB- ” changes
and the waveform changes.) In this adjustment, waveform varies
at intervals of approx. 2%. Adjust the waveform so that the
specified value is satisfied as much as possible.
(Write power traverse adjustment)
(Traverse Waveform)
9. Press the ENTER/YES button, and save the adjustment results
in the non-volatile memory. (“EFB =
SAVE” will be
displayed for a moment.)
10. “EFB = MO-P”. will be displayed.
The optical pick-up moves to the pit area automatically and servo
is imposed.
V : 0.5 V/div
H : 10 ms/div
Input : DC mod
