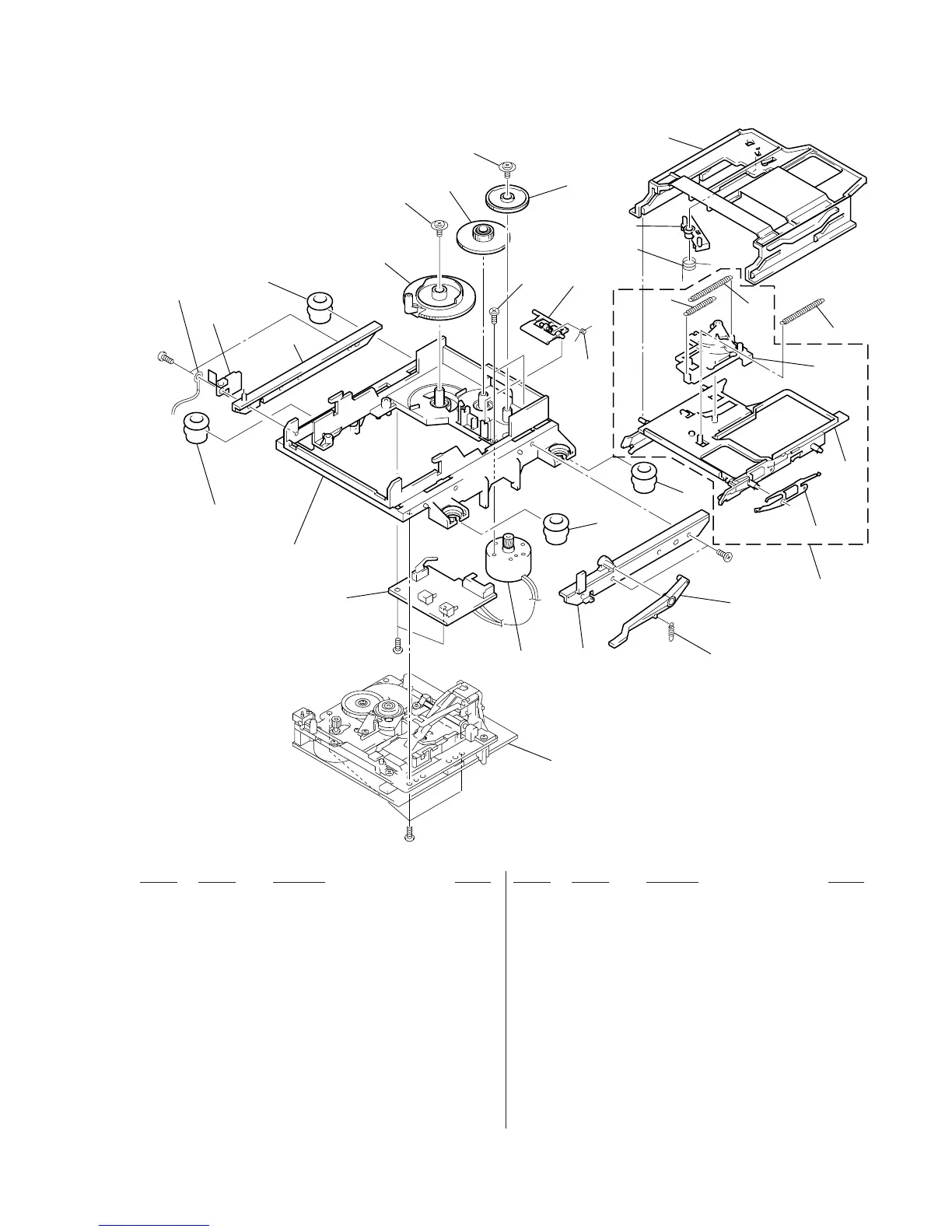

8-6. MD MECHANISM SECTION-1 (MDM-5A)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
#2
M103
#2
#2
not supplied
#3
MBU-5A
501
502
503
503
504
505
506
507
507
508
509
510
511
512
513
513
514
515
516
517
518
519
520
521
522
523
525
526
524
* 501 1-671-115-21 SW BOARD
* 502 4-996-217-01 CHASSIS
503 4-996-223-11 INSULATOR (F)
* 504 4-996-218-01 BRACKET (GUIDE R)
505 4-996-277-01 SPRING (O/C), TENSION
506 4-996-226-01 LEVER (O/C)
507 4-999-347-01 INSULATOR (R)
* 508 4-996-225-01 BRACKET (GUIDE L)
509 4-988-466-11 SPRING (ELECTROSTATIC), LEAF
510 4-996-219-01 GEAR (CAM GEAR)
511 4-996-220-01 GEAR (A)
512 4-996-221-01 GEAR (B)
513 4-933-134-01 SCREW (+PTPWH M2.6X6)
514 4-996-224-01 SCREW (1.7X3), +PWH
515 4-996-227-01 LEVER (HEAD)
516 4-996-229-01 SPRING (HEAD LEVER), TORSION
517 4-996-212-01 LEVER (LIMITTER)
518 4-996-213-01 SPRING (LIMITTER), TORSION
519 4-996-214-01 SPRING (SLIDER), TENSION
520 4-966-216-01 SPRING (HOLDER), TENSION
521 4-996-215-11 SPRING (LOCK LEVER), TENSION
522 X-4949-246-1 SLIDER ASSY
523 X-4949-245-1 HOLDER ASSY
* 524 4-996-211-11 SLIDER (CAM)
525 4-998-763-01 SPRING (SHUTTER), LEAF
526 A-4680-409-A HOLDER ASSY
M103 X-4949-264-1 MOTOR ASSY, LOADING
