Sony HCD-D670AV - Compact Disk Deck Receiver - Section 6. Exploded Views

— 85 —
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Abbreviation
CND : Canadian model
G : German model
IT : Italian model
MX : Mexican model
AUS : Australian model
AR : Argentine model
SECTION 6
EXPLODED VIEWS

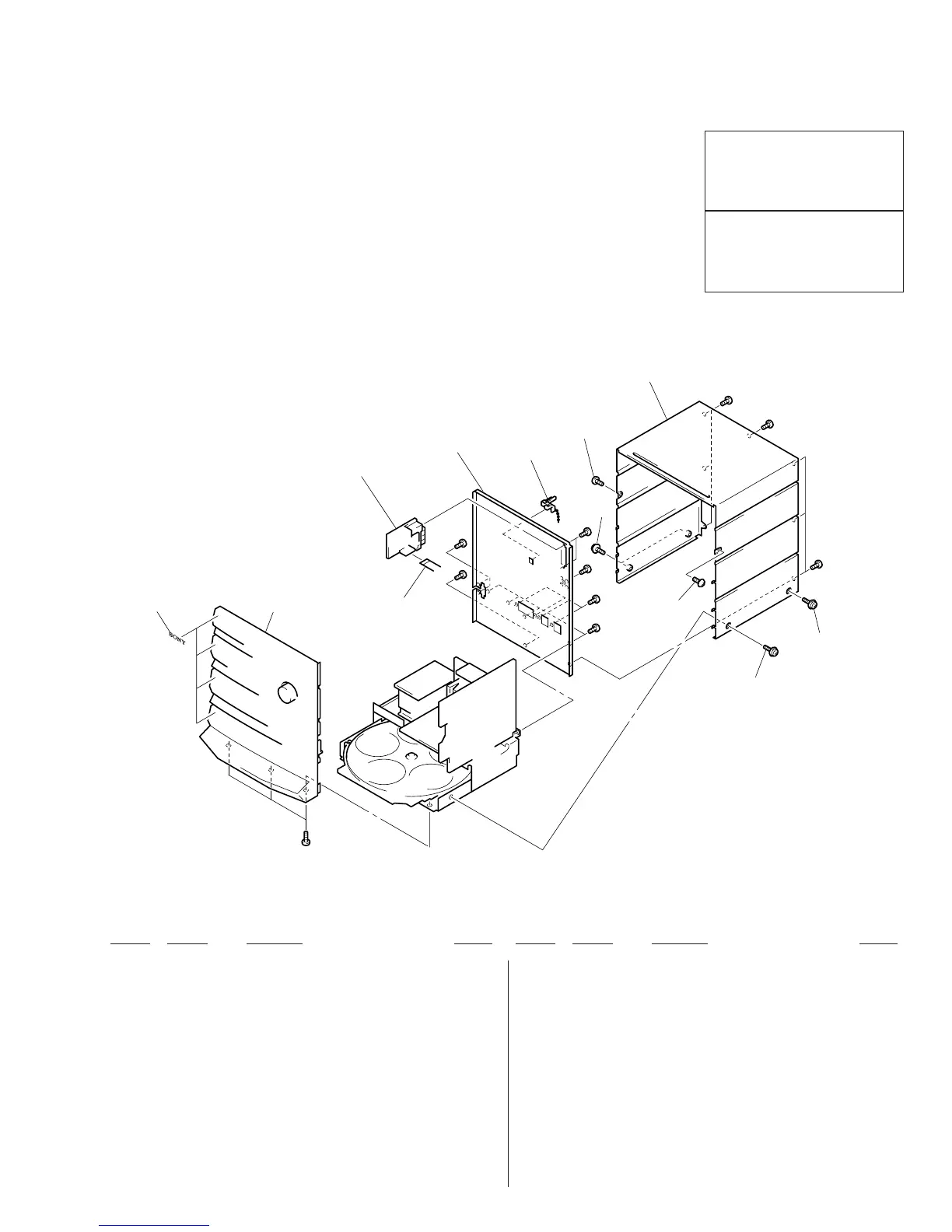

6-1. CABINET AND BALCK PANEL SECTION
2
8
3
6
6
5
7
1
#1
#1
#1
#1
#1
#1
#1
#2
#2
#2
6
5
4
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 4-963-404-21 EMBLEM (5-A), SONY
* 2 A-4303-502-A TCB BOARD, COMPLETE (Except Malaysia
product) (N555AV:AEP,UK)
* 2 A-4303-503-A TCB BOARD, COMPLETE (N555AV:IT,G)
* 2 A-4303-510-A TCB BOARD, COMPLETE(D670AV)
* 2 A-4303-513-A TCB BOARD, COMPLETE
(N555AV:E,AUS,AR,MX,PX)
* 2 A-4303-514-A TCB BOARD, COMPLETE(Malaysia product)
(N555AV:AEP)
3 1-751-688-11 WIRE (FLAT TYPE)(13 CORE)
(D670AV/N555AV:E,G,IT,AUS,PX,MX,AR)
3 1-773-011-11 WIRE (FLAT TYPE)(15 CORE)(N555AV:AEP,UK)
4 4-956-370-12 BAND, PLUG FIXED (N555AV:UK,AUS
5 3-363-099-01 SCREW (CASE 3 TP2)
6 4-929-973-01 SCREW (CASE, 3 POINT)
* 7 4-978-177-71 CASE
* 8 4-978-193-01 PANEL, BACK (D670AV:US)
* 8 4-978-193-11 PANEL, BACK (D670AV:CND)
* 8 4-978-193-21 PANEL, BACK (N555AV:AEP)
* 8 4-978-193-31 PANEL, BACK (N555AV:G)
* 8 4-978-193-41 PANEL, BACK (N555AV:IT)
* 8 4-978-193-51 PANEL, BACK (N555AV:UK)
* 8 4-978-194-01 PANEL, BACK (N555AV:E)
* 8 4-978-194-11 PANEL, BACK (N555AV:AR)
* 8 4-978-194-21 PANEL, BACK (N555AV:AUS)
* 8 4-978-194-31 PANEL, BACK (N555AV:PX)
* 8 4-978-194-41 PANEL, BACK (N555AV:MX)
FRONT PANEL
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
