— 88 —

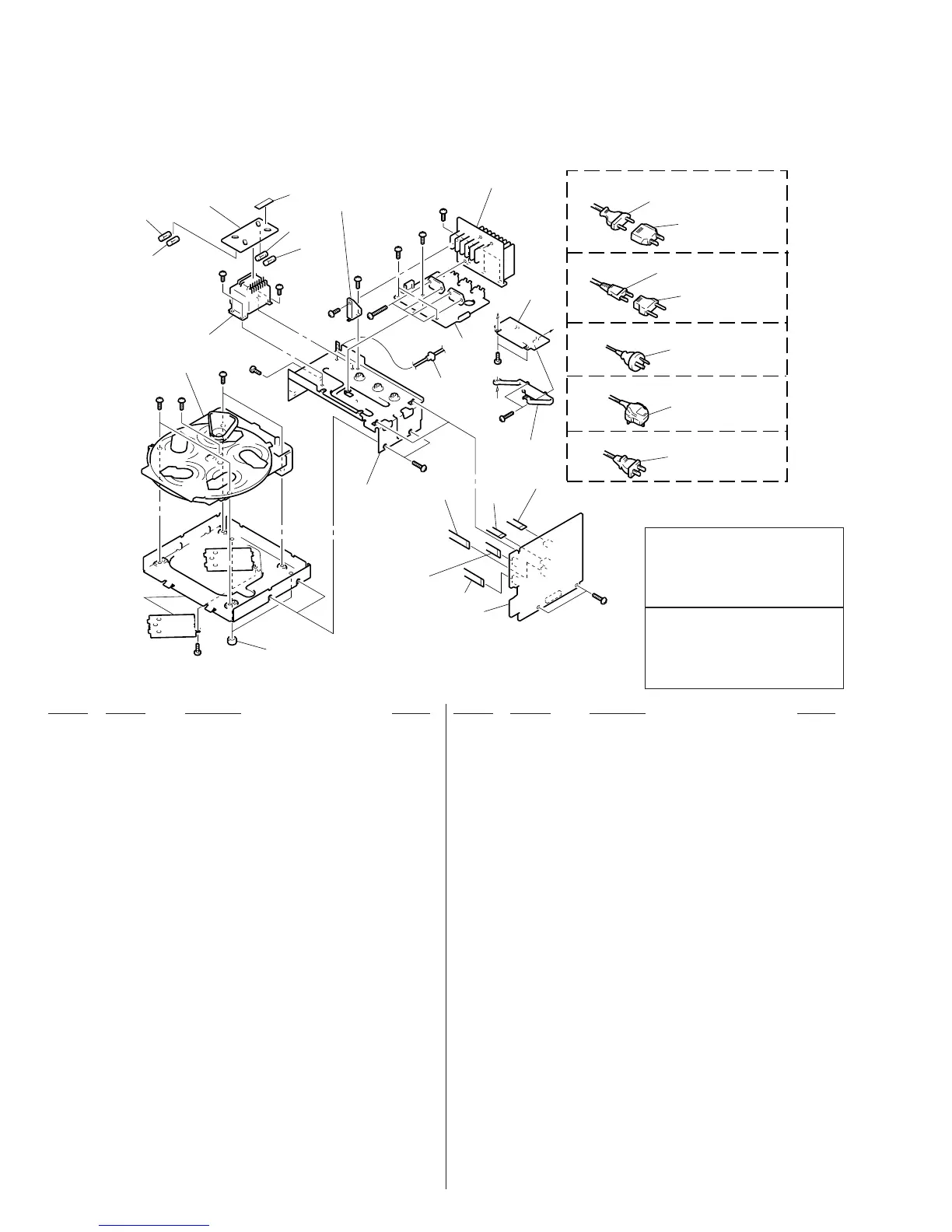

6-4. CHASSIS SECTION
* 151 3-701-946-26 LABEL, FUSE RATING (D670AV)
151 3-701-946-27 LABEL, FUSE RATING (D670AV)
* 152 1-659-218-11 TRANS BOARD (D670AV)
* 152 1-660-805-11 TRANS BOARD (D555AV)
* 153 A-4389-604-A POWER AMP BOARD, COMPLETE (D670AV)
* 153 A-4389-617-A POWER AMP BOARD, COMPLETE
(N555AV:E,AUS,PX,MX,AR)
* 153 A-4389-625-A POWER AMP BOARD, COMPLETE
(N555AV:AEP,UK,G,IT)
* 154 3-703-244-00 BUSHING (2104), CORD
(D670AV/N555AV:AEP,UK,G,IT,AUS,AR)
154 4-966-266-01 BUSHING (S)(FBS002), CORD (N555AV:E,PX,MX)
* 155 A-4389-608-A S.WOOFER BOARD, COMPLETE
(N555AV:E,AUS,PX,MX,AR)
* 155 A-4389-627-A S.WOOFER BOARD, COMPLETE
(N555AV:AEP,UK,G,IT)
156 1-751-688-11 WIRE (FLAT TYPE)(13 CORE)
(D670AV/N555AV:E,AUS,PX,MX,AR)
156 1-773-011-11 WIRE (FLAT TYPE)(15 CORE)(N555AV:AEP,UK,G,IT)
157 1-777-046-11 WIRE (FLAT TYPE)(19CORE)
158 1-765-338-11 WIRE (FLAT TYPE)(21 CORE)
159 1-769-949-11 WIRE (FLAT TYPE)(11 CORE)
160 1-590-578-11 WIRE (FLAT TYPE)(19 CORE)
(D670AV/N555AV:AEP,UK,G,IT)
160 1-773-153-11 WIRE (FLAT TYPE)(21 CORE)
(N555AV:E,AUS,PX,MX,AR)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 161 A-4389-602-A MAIN BOARD, COMPLETE (D670AV)
* 161 A-4389-615-A MAIN BOARD, COMPLETE (N555AV:E,MX,AR)
* 161 A-4389-622-A MAIN BOARD, COMPLETE (N555AV:AEP,UK)
* 161 A-4389-894-A MAIN BOARD, COMPLETE (N555AV:AUS,PX)
* 161 A-4390-010-A MAIN BOARD, COMPLETE (N555AV:G,IT)
162 1-569-007-11 ADAPTER, CONVERSION 2P (N555AV:PX)
162 1-569-008-11 ADAPTER, CONVERSION 2P (N555AV:AR)
! CNP1601 1-558-943-51 CORD, POWER (N555AV:E,PX,MX)
! CNP1601 1-575-042-21 CORD, POWER (D670AV)
! CNP1601 1-575-651-21 CORD, POWER (N555AV:AEP,G,IT,AR)
! CNP1601 1-696-845-11 CORD, POWER (N555AV:AUS)
! CNP1601 1-751-522-11 CORD, POWER (N555AV:UK)
! F1601 1-532-506-31 FUSE, TIME LAG (6.3A 250V) (N555AV)
! F1602 1-532-506-31 FUSE, TIME LAG (6.3A 250V) (N555AV)
! F1603 1-532-504-31 FUSE, TIME LAG (4A, 250V)(N555AV:E,PX,MX,AR)
! F1603 1-533-420-11 FUSE, GLASS CYLINDRICAL (DIA.5)(5A, 125V)
(D670AV:US)
! F1603 1-533-419-11 FUSE, GLASS CYLINDRICAL (DIA.5)(4A, 125V)
(D670AV:CND)
! F1604 1-532-465-31 FUSE, TIME LAG (3.15A 250V)
(N555AV:AEP,UK,G,IT,E,AUS,PX,AR)
! T1601 1-429-338-11 TRANSFORMER, POWER (N555AV:AEP,UK,G,IT)
! T1601 1-429-339-11 TRANSFORMER, POWER (D670AV)
! T1601 1-429-340-11 TRANSFORMER, POWER
(N555AV:E,AUS,PX,MX,AR)
152
F1604
153
154
155
157
156
159
158
160
161
F1603
not supplied
not supplied
#1
#1
#1
not supplied
#1
#1
#1
#1
CNP1601
CNP1601
CNP1601
CNP1601
162
(AR Only)
162
(PX Only)
N555AV: AEP, G,IT, AR models
CNP1601
N555AV: E, PX, MX models
N555AV: AUS model
N555AV: UK model
D670AV model
F1602
151
not supplied
#1
F1601
#2 (D670AV)
#3 (N555AV)
#2 (D670AV)
#3 (N555AV)
CDM-5BD19
T1601
#1
#1
#1
#1
#4
not supplied
not supplied
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
#1
#4
