— 8 —
SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

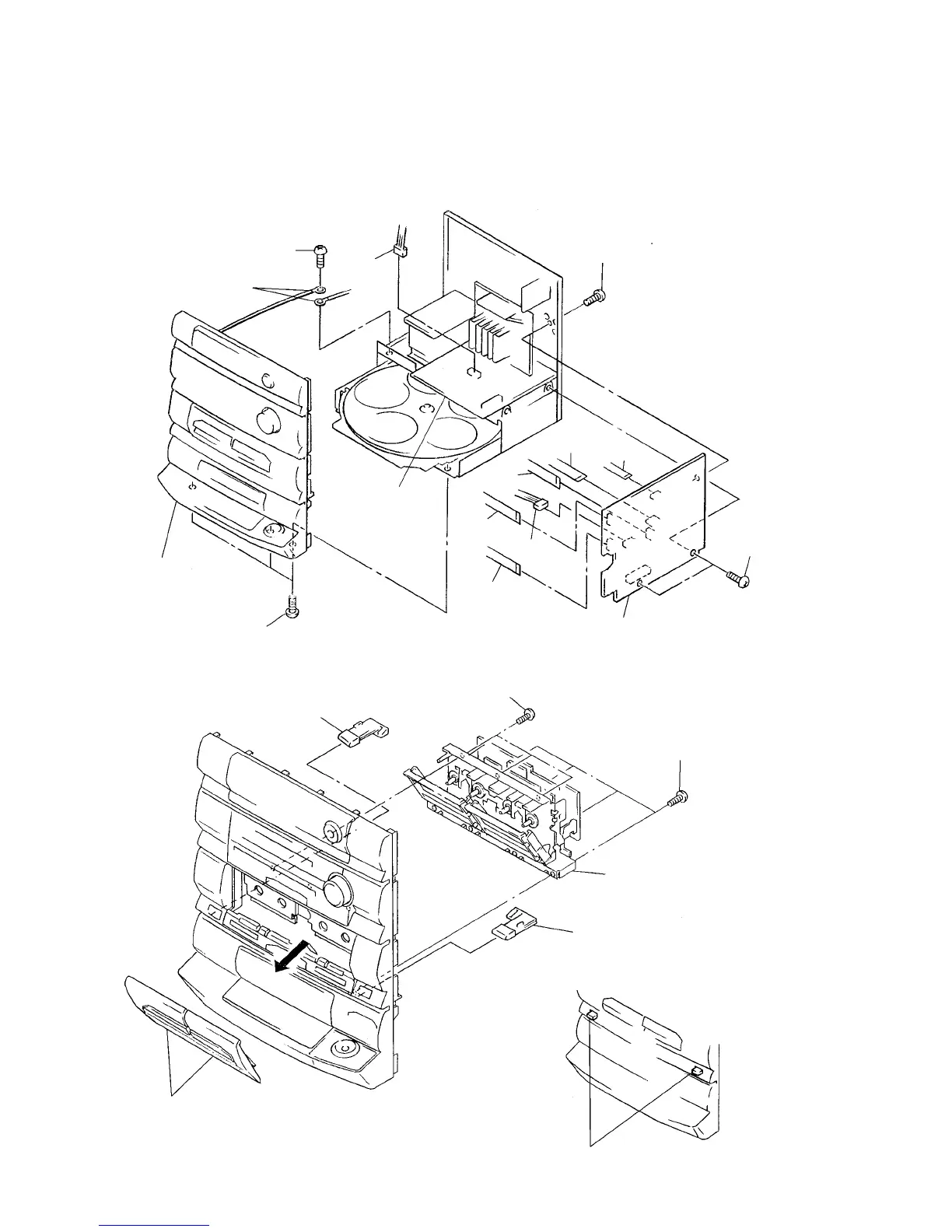

2-1. FRONT PANEL ASSY AND MAIN BOARD
CN1301
1 Remove the connectors.
• Main board (six connectors)
• Main power amplifier board (one connector)
6 Button (eject-L)
3 Three screws
(BVTP 2.6X8)
4 Four screws
(BVTP 2.6X8)
5 TC mechanism deck
6 Button (eject-R)
2 Remove the two cassette lids
direction of arrow.
1 Push the eject button.
2-2. TC MECHANISM DECK
4 Three screws
(BVTP 3X8)
CN401
CN701
8 Main board
7 Two scrws
(BVTP 3X8)
CN250
CN201
CN402
CN203
6 Screw (BVTP 3x8)
2 Screw (BVTP3 X 8)
3 Two earth wire
5 Front panel assy
Power amp board
