Sony HCD-D670AV - Compact Disk Deck Receiver - TC Mechanism Section 3 (TCM-220 WR2 E)

— 91 —
301 3-908-597-01 CAM (A)
302 3-908-608-11 SCREW, STEP
303 X-3367-590-2 ARM (A) ASSY, FR
304 X-3370-169-1 FLYWHEEL (AR) ASSY
305 3-928-047-01 PULLEY, TENSION
306 3-908-599-01 LEVER (REV-A)
307 3-908-601-01 SPRING (REV LEVER), TORSION
308 3-908-603-01 LEVER (TRIGGER A)
309 X-3370-170-1 FLYWHEEL (BF) ASSY
310 3-908-605-01 SPRING (TRIGGER), TORSION
311 3-908-609-01 GEAR, TRIGGER
312 3-913-845-11 BELT (A)
313 3-913-846-11 BELT (FR)
314 X-3370-171-1 FLYWHEEL (BR) ASSY
315 3-908-600-01 LEVER (REV-B)
* 316 1-650-669-11 LEAF SWITCH BOARD
317 3-908-598-01 CAM (B)
318 X-3369-849-2 ARM (B) ASSY, FR
319 3-914-111-01 SPRING (FR), TORSION
320 3-908-604-01 LEVER (TRIGGER B)
321 3-911-115-01 WASHER, STOPPER
322 3-917-176-11 BELT (B)
323 X-3370-172-1 FLYWHEEL (AF) ASSY
* 324 A-2007-435-A MD BOARD, COMPLETE
325 X-3371-441-1 CHASSIS ASSY, MECHANICAL
M1 X-3371-223-1 MOTOR ASSY (CAPSTAN)
M2 A-2004-410-A MOTOR ASSY (TRIGGER)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

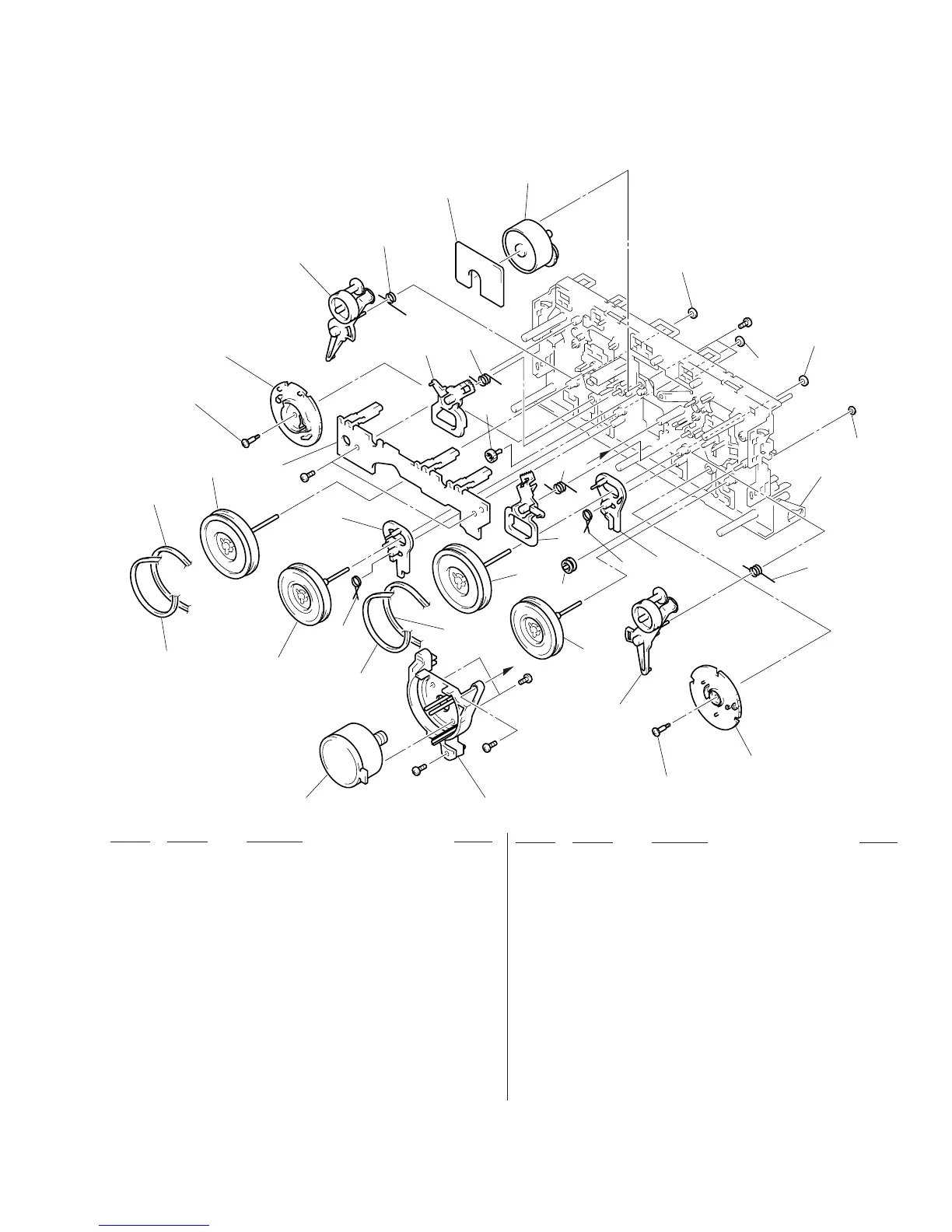

6-7. TC MECHANISM SECTION 3
(TCM-220WR2E)
rA: MOTOR board (Suppplied with MD board)
317
318
319
302
316
309
313
322
314
307
315
313
312
304
303
302
301
305
323
308
306
307
310
310
320
311
321
321
325
319
not supplied
M1
#7
#7
#8
#10
#11
#10
M2
#9
324
r A
