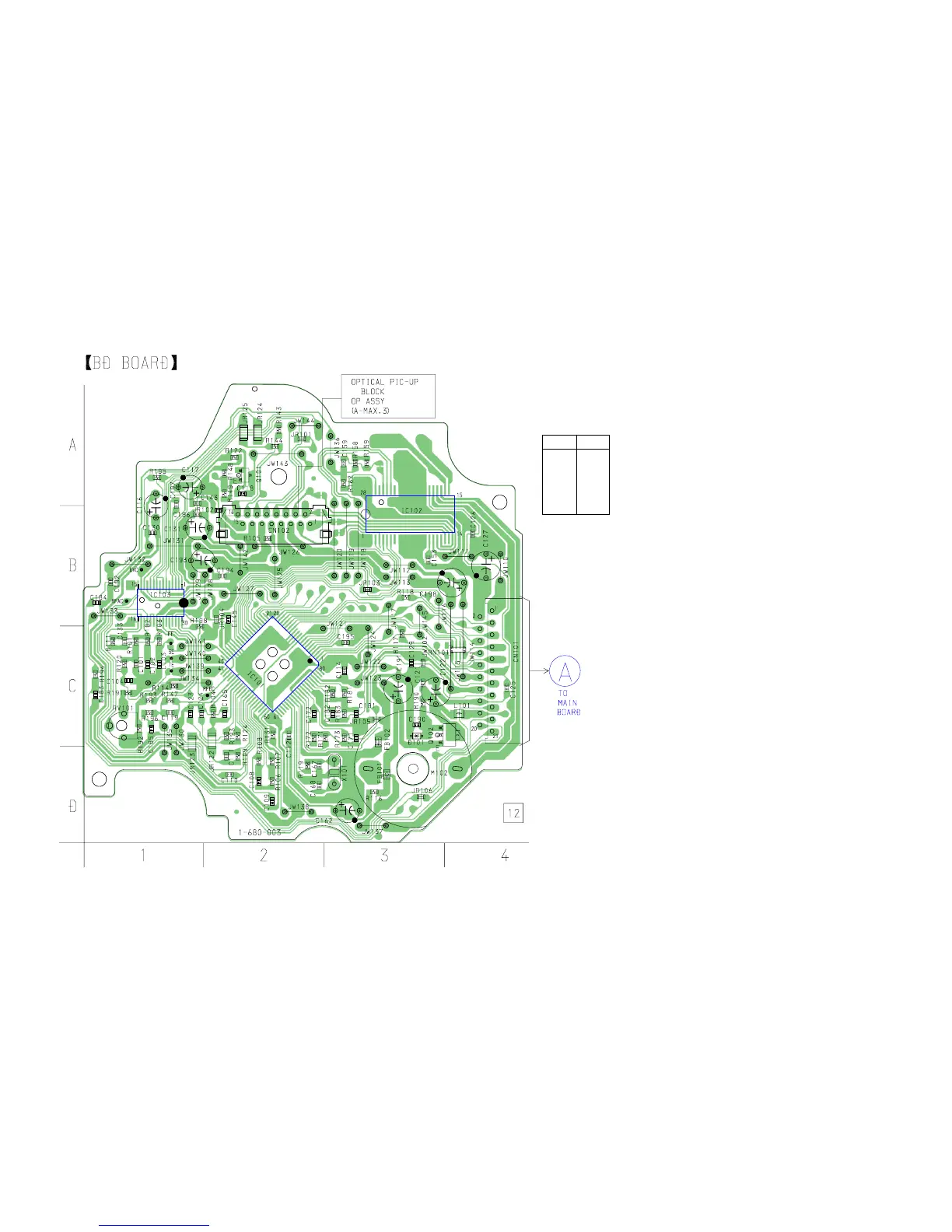

6-4. PRINTED WIRING BOARD – BD SECTION – • See page 23 for Circuit Boards Location.
Ref. No. Location
D101 C-3
IC101 C-2
IC102 A-3
IC103 B-1
Q101 A-2
Q102 C-3
• Semiconductor
Location
(Page 28)
