Sony HCD-DP700 - Main Section Diagrams; Printed Wiring Board

HCD-DP700
2828

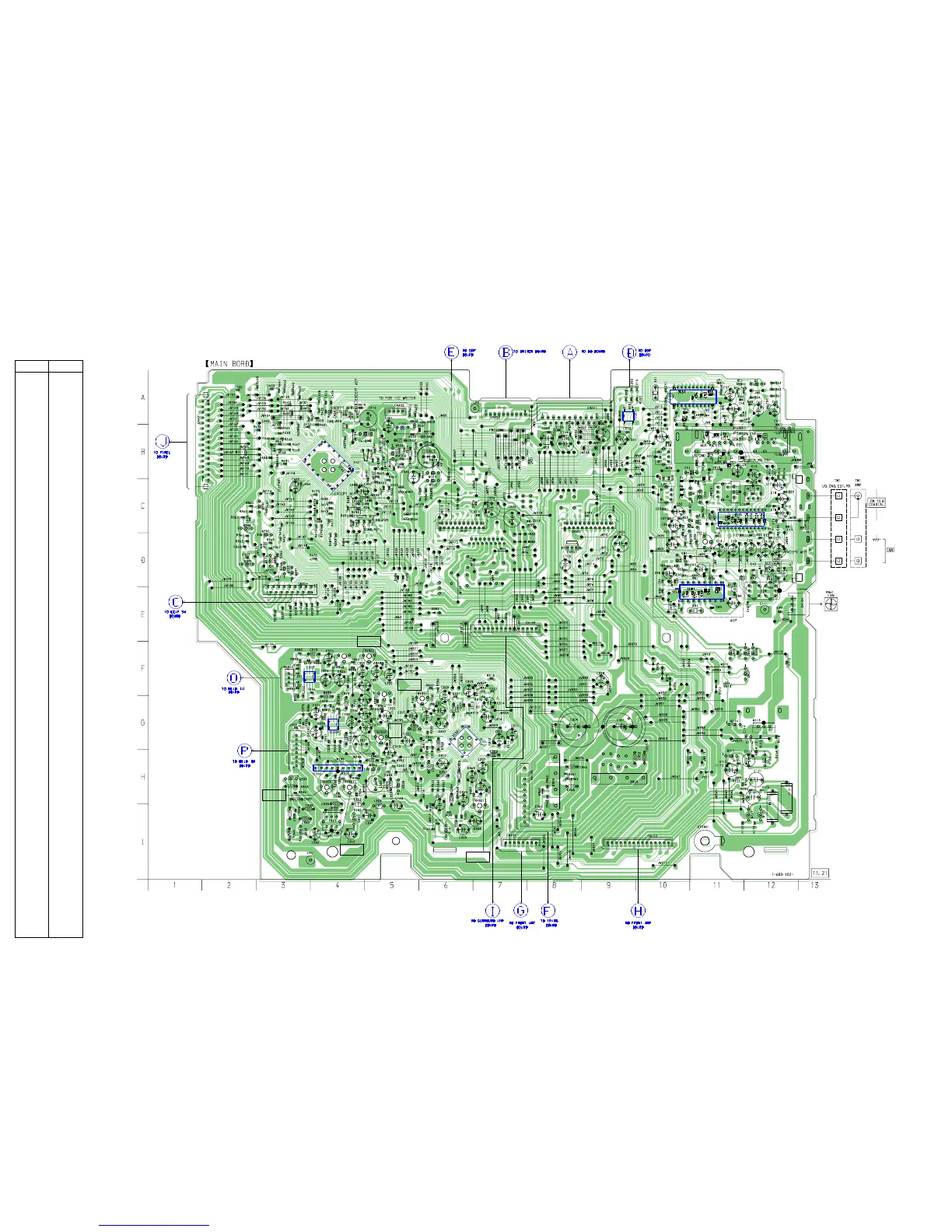

6-5. PRINTED WIRING BOARD – MAIN SECTION – • See page 23 for Circuit Boards Location.
D51 A-11
D81 D-11
D111 H-11
D112 G-12
D113 H-12
D501 B-5
D502 B-5
D503 B-6
D504 B-5
D505 C-5
D506 C-5
D507 C-5
D508 C-5
D509 B-5
D510 F-11
D511 B-2
D950 H-9
D959 H-8
D961 H-8
D962 H-8
D971 H-11
D972 F-11
D973 F-11
D974 F-10
D975 F-10
D976 F-10
D981 C-6
D982 E-6
D983 D-7
D984 D-7
IC11 C-11
IC51 A-10
IC81 E-10
IC301 G-6
IC302 H-4
IC303 F-3
IC304 G-4
IC401 B-4
IC501 B-5
IC551 A-9
Q1 C-10
Q2 A-12
Q11 C-10
Q12 C-11
Q81 E-10
Q111 H-11
Q112 H-12
Q113 G-12
Q114 G-11
Q121 I-12
Q141 I-6
Q171 I-12
Q301 I-4
Q302 H-3
Q303 I-3
Q304 H-5
Q305 H-5
Q391 D-2
Q392 D-3
Q393 C-2
Q394 C-3
Q395 D-3
Q396 D-3
Q397 D-3
Q501 B-5
Q502 C-6
Q503 B-6
Q504 F-11
Q505 F-11
Q506 F-12
Q507 F-12
Ref. No. Location
• Semiconductor Location
(Page 32)(Page 27)(Page 47)(Page 32)
(Page 42)
(Page 45)
(Page 45)
(Page 45)
(Page 41) (Page 49)
AEP/US/CND MODEL : (Page 36)
E51/MX MODEL : (Page 38)
AEP/US/CND MODEL : (Page 36)
E51/MX MODEL : (Page 38)
PB LEVEL (L)
(A)
REC LEVEL
(R) (A)
REC LEVEL
(L) (A)
REC LEVEL
(R) (B)
REC LEVEL
(L) (B)
PB
LEVEL
(L) (B)
