HCD-DP700

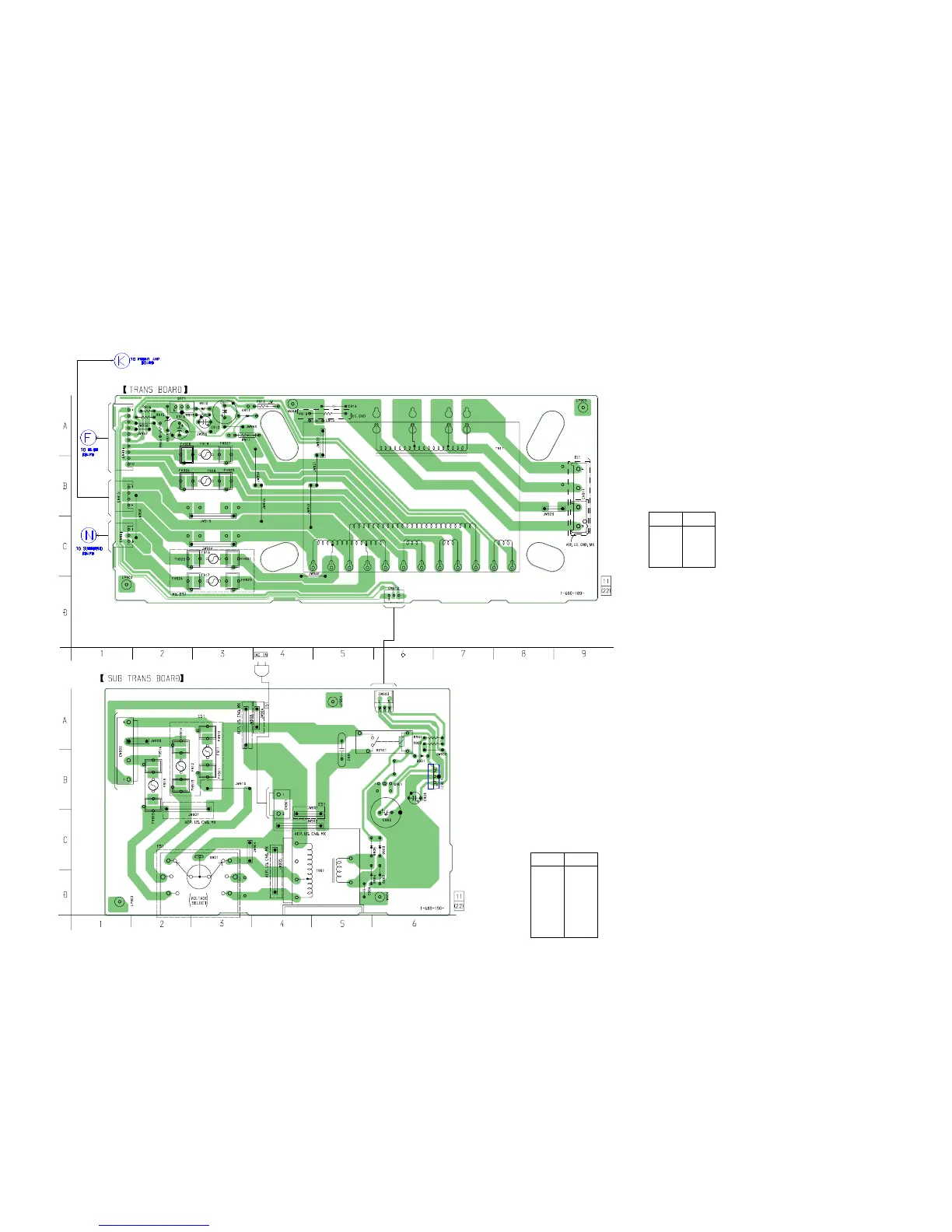

6-27. PRINTED WIRING BOARD – TRANS SECTION – • See page 23 for Circuit Boards Location.
Ref. No. Location
D901 B-6
D902 D-6
D903 C-6
D904 D-5
D905 C-5
IC901 B-6
Q901 B-6
• Semiconductor
Location
Ref. No. Location
D911 A-3
D912 A-3
D913 A-2
Q971 A-2
• Semiconductor
Location
(Page 28)
(Page 41)
AEP/US/CND MODEL : (Page 36)
E51/MX MODEL : (Page 38)
