Sony HCD-DP900D - Disassembly - Head and DSP;MB;Video Boards; 2-10. Leaf SW, Head (A), Head (B) Board Disassembly; 2-11. Base Unit, DSP, MB, Video Board Disassembly

11
HCD-DP900D

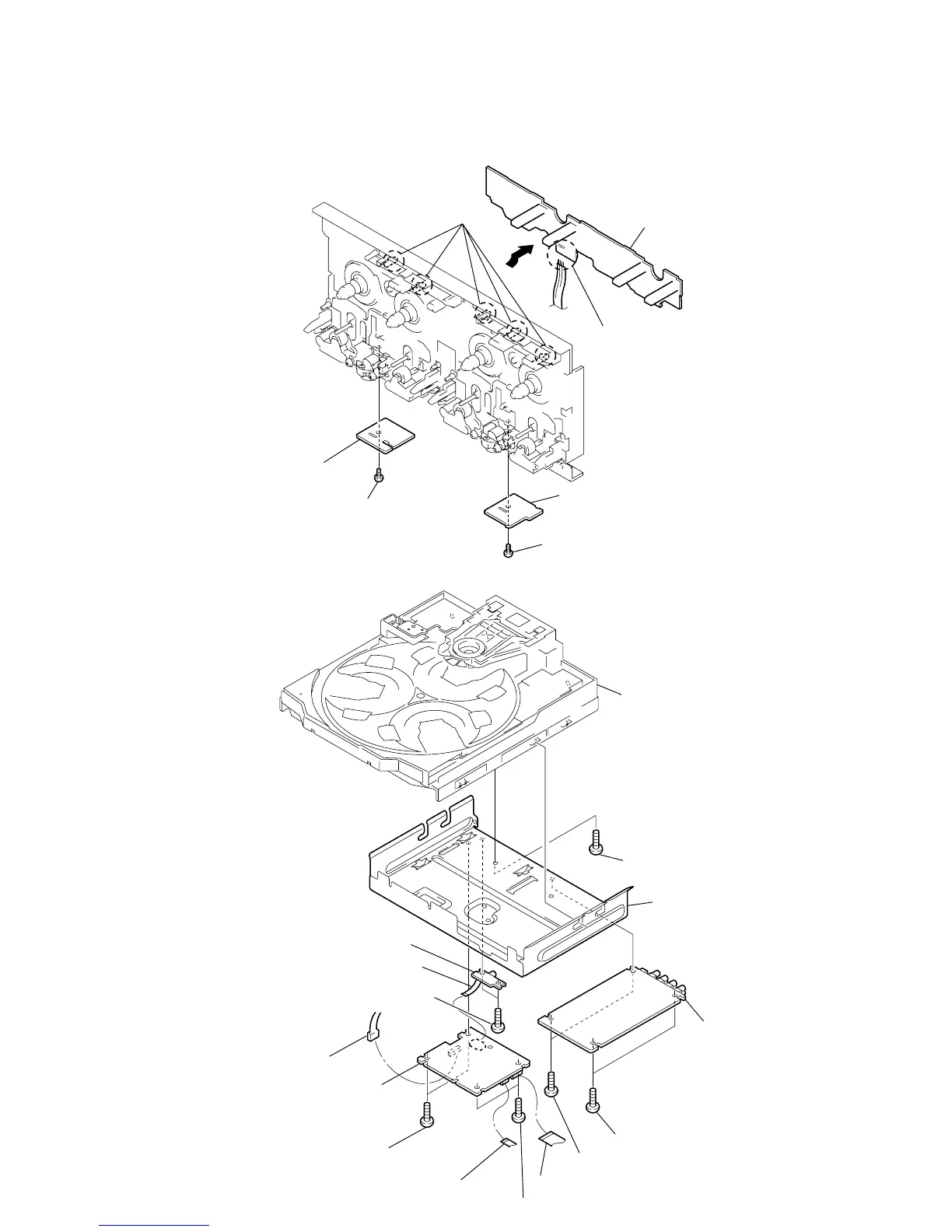

2-11. BASE UNIT, DSP BOARD, MB BOARD, VIDEO BOARD
2-10. LEAF SW BOARD, HEAD (A) BOARD, HEAD (B) BOARD (TCM-230AWR41/MWR41)
4 screw (+PTT 2 × 4),
ground point
4 screw (+PTT 2 × 4),
ground point
2 LEAF SW board
1 five claws
5 HEAD (A) board
6 HEAD (B) board
3 remove the four solderings.
Note: This illustration is for TCM-230MWR, but in case of TCM-230AWR, you can remove them in the same way.
qd screw (+BVTP 3X8)
qf bracket (DVD)
3 DSP board
1 two screws (+BVTP 3X8)
4 flat type wire (CN010)
5 flat type wire (CN009)
8 two screws (+BVTP 3X8)
2 two screws (+BVTP 3X8)
qa two screws (+BVTP 3X8)
9 two screws (+BVTP 3X8)
DVD mechanism deck (CDM58D)
6 fiat type wire (CN011)
qs VIDEO board
7 connector (CN202)
0 MB board
