Sony HCD-DP900D - Exploded Views; 7-1. Main Section Exploded View

65
HCD-DP900D
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
SECTION 7
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

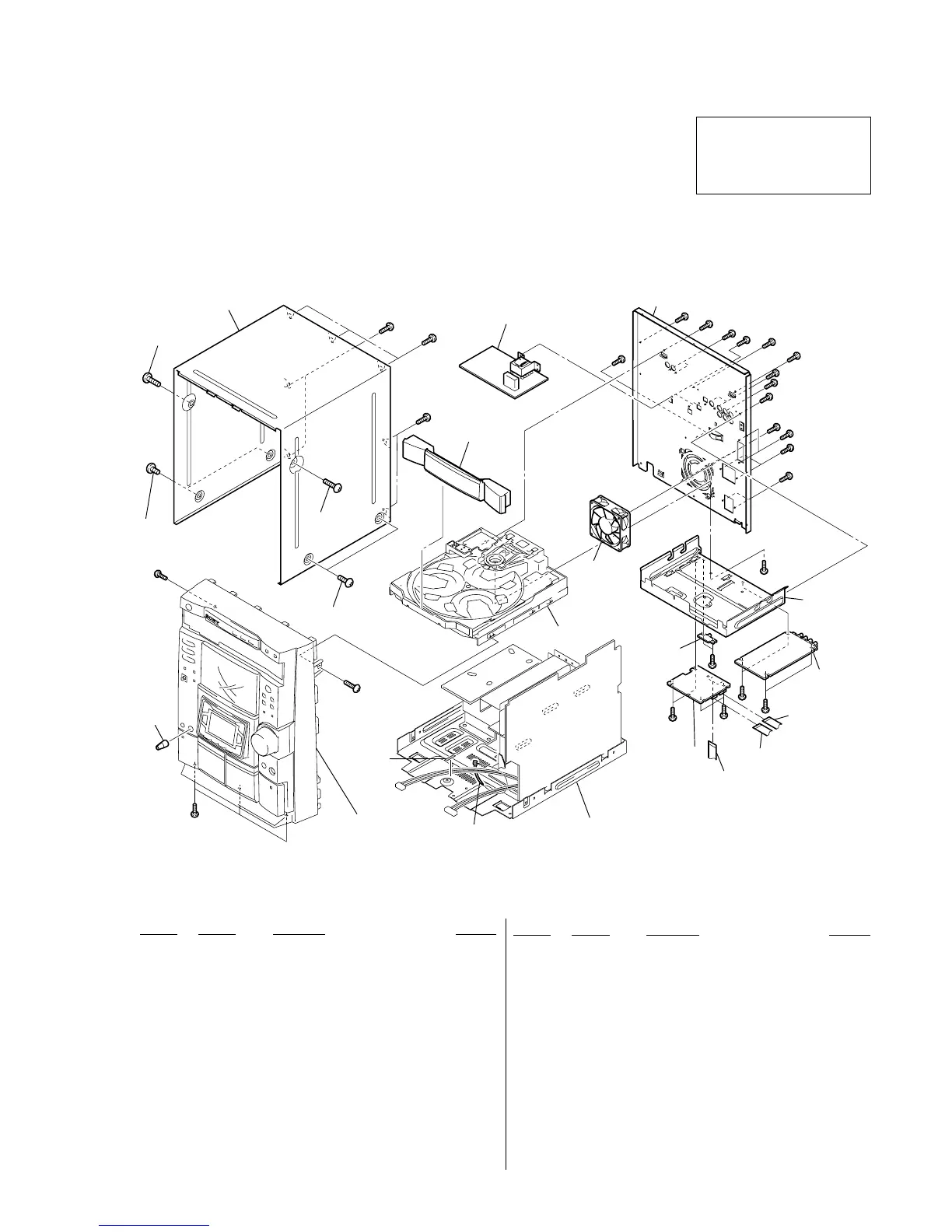

7-1. MAIN SECTION
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories are
given in the last of this parts list.
• Abbreviation
MY : Malaysia model
SP : Singapore model
TH : Thai model
MX : Mexican model
EA : Saudi Arabia
#1
#1
#1
#1
#1
#1
1
6
1
2
2
10
8
11
4
12
15
14
16
13
Front panel section
Chassis section
CD mechanism deck
M961
#1
#2
#6
#1
#2
#1
#1
#1
#1
#2
#1
#1
#1
#1
#1
#1
#1
#6
#6
#2
3
5
7
9
1 3-363-099-41 SCREW (CASE 3 TP2)
2 3-363-099-01 SCREW (CASE 3 TP2)
3 X-4954-183-1 PANEL ASSY, LOADING (DVD)
4 A-4475-667-A DSP BOARD, COMPLETE (E,MX,SP,MY,EA)
4 A-4475-988-A DSP BOARD, COMPLETE (TH)
5 1-680-190-11 SUB TRANS BOARD
6 4-231-828-11 CASE
7 4-236-825-01 PANEL, BACK (E)
7 4-236-825-11 PANEL, BACK (MX)
7 4-236-825-21 PANEL, BACK (SP,MY)
7 4-236-825-31 PANEL, BACK (TH)
7 4-236-825-42 PANEL, BACK (EA)
8 3-701-748-00 CLAMP
* 9 3-378-109-01 CUSHION, SARANET
10 4-231-805-02 KNOB (MIC)
11 4-231-835-01 BRACKET (DVD)
12 A-4727-088-A MB BOARD, COMPLETE (SP,MY,TH,EA)
12 A-4727-097-A MB BOARD, COMPLETE (E,MX)
13 1-682-902-11 VIDEO BOARD
14 1-823-367-11 WIRE (FLAT TYPE) (9 CORE)
15 1-823-370-11 WIRE (FLAT TYPE) (6 CORE)
16 1-823-368-11 WIRE (FLAT TYPE) (25 CORE)
M961 1-763-072-11 FAN, DC
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#6 7-685-872-09 SCREW +BVTT 3X8 (S)
Ver 1.1 2002.03
