Sony HCD-DP900D - Disassembly Procedures; Section 2 Disassembly Overview; 2-1. Case (Top) Disassembly

6
HCD-DP900D
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

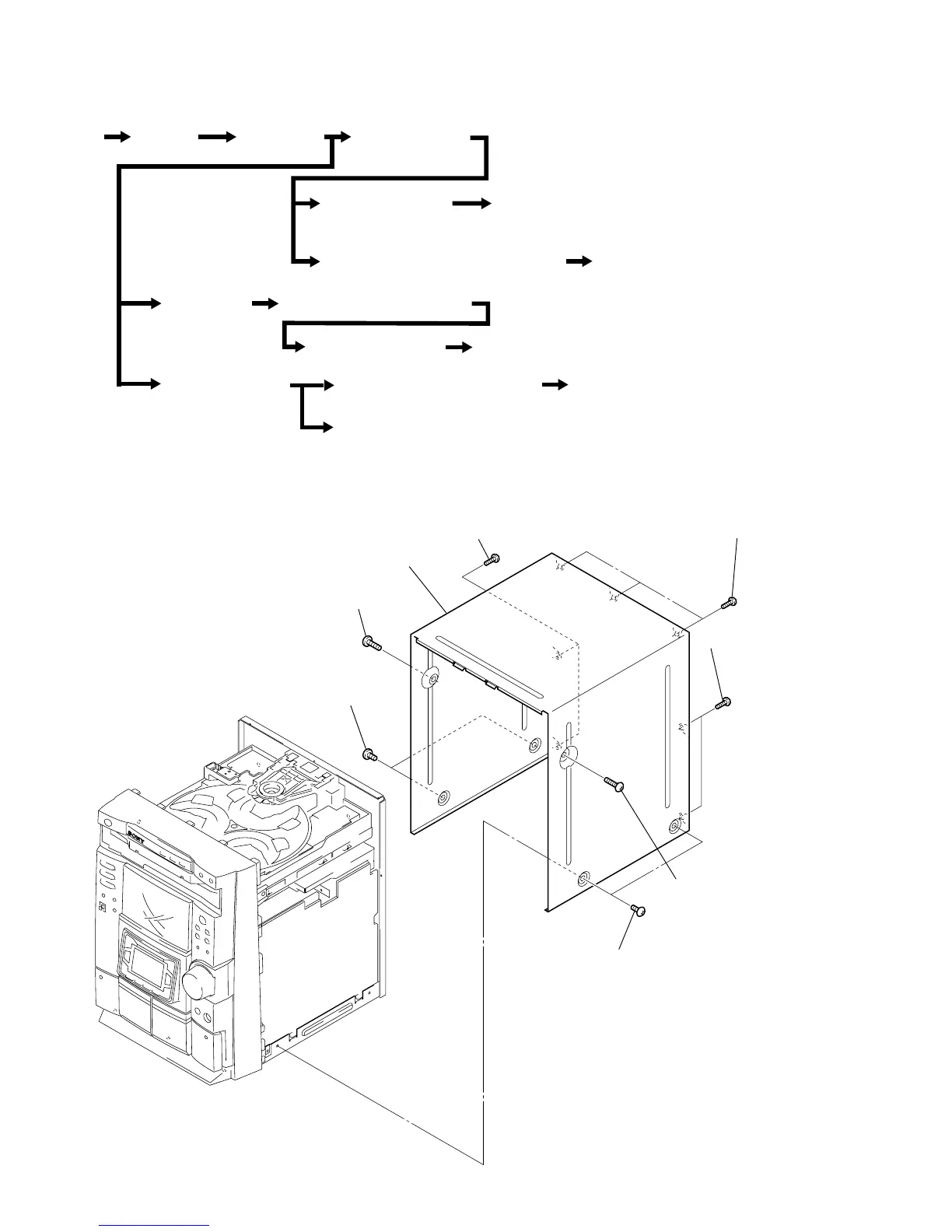

2-1. CASE (TOP)
Set Case (Top) Loading Panel Front Panel Section
Tape Mechanism Deck
(TCM-230AWR41/MWR41)
CD Panel board, Panel board, OPT IN Board
LEAF SW board, Head (A) board,
Head (B) board
SUB Trans board, Back panel, Fan
Chassis section
Front AMP board, Surround AMP board
RF-240 board, optical pick-up (KHM-240AAA)
DSP board, MB board, VIDEO board
DVD mechanism deck
(CDM58D)
Tnans board, Main board
Escutcheon pad
(With touch pad)
Driver board, Motor board, Diode board, Sensor board, Tray, Sensor board
• The equipment can be removed using the following procedure.
1 two screws (case 3 TP2)
2 screw (case 3 TP2)
3 two screws (case 3 TP2)
4 screw (case 3 TP2)
8 case
7 two screws
(+BVTT 3
× 8
)
6 three screws (+BVTT 3 × 8)
5 two screws (+BVTT 3 × 8)
