Sony HCD-DR6 - Tape Mechanism Deck and Cassette LID; CD Mechanism Deck; Base Unit

– 10 –

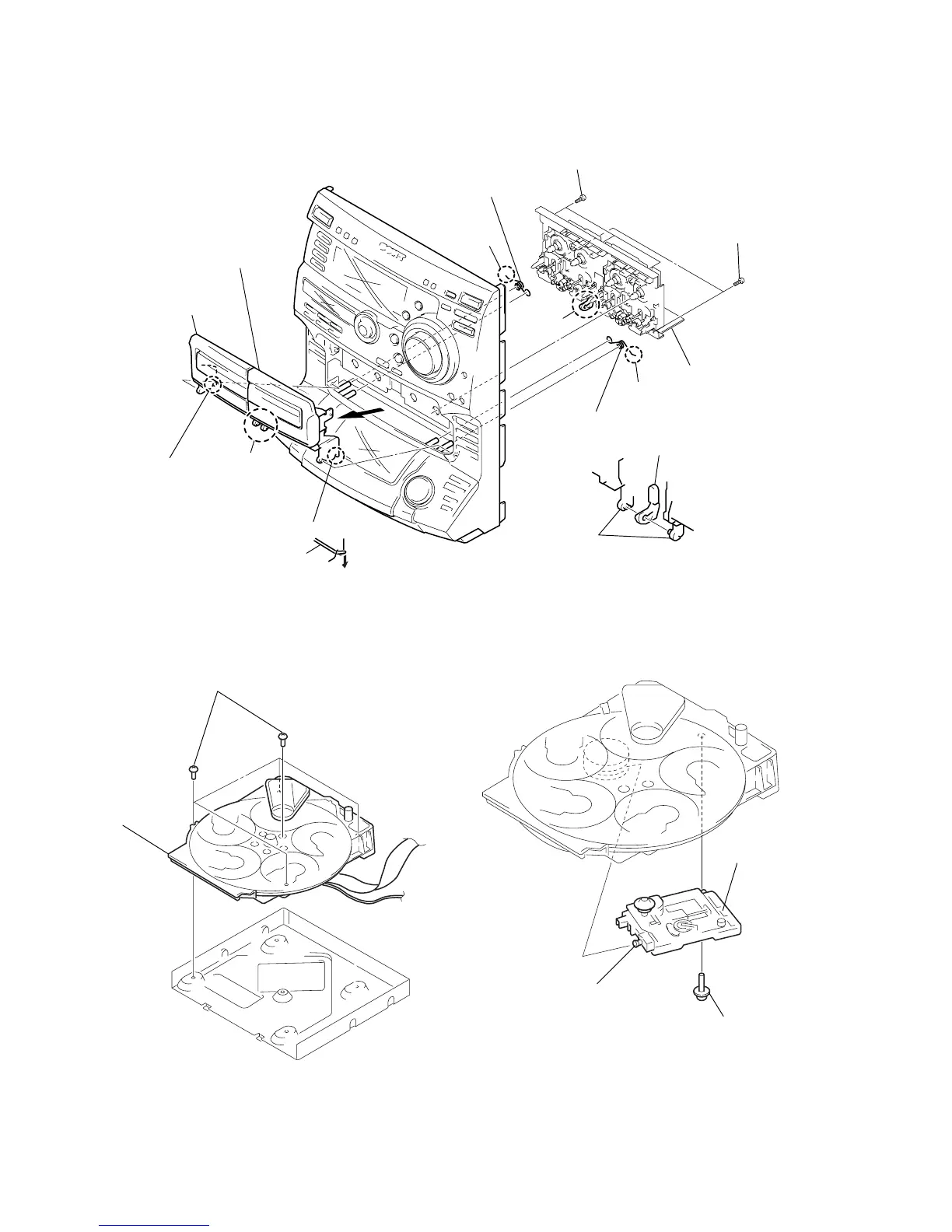

3-5. TAPE MECHANISM DECK AND CASSETTE LID
3-6. CD MECHANISM DECK 3-7. BASE UNIT
5 Cassette lid (B) block
6 Cassette lid (A) block
1 Release
2 Release
(Refer to order No. 1 )
3 Torsion spring (TC-B)
4 Torsion spring (TC-A)
7 Two screws (BVTP 2.6x8)
8 Three screws
(BVTP 2.6x8)
9 Tape mechanism
Portion A
Portion B
Portion C
Portion C
Portion A
Portion B
Portion A
1 Five screws (BVTP3x8)
2 CD mechanism
deck
3 Base uni
t
1 Yoke fitting
2 Boss
