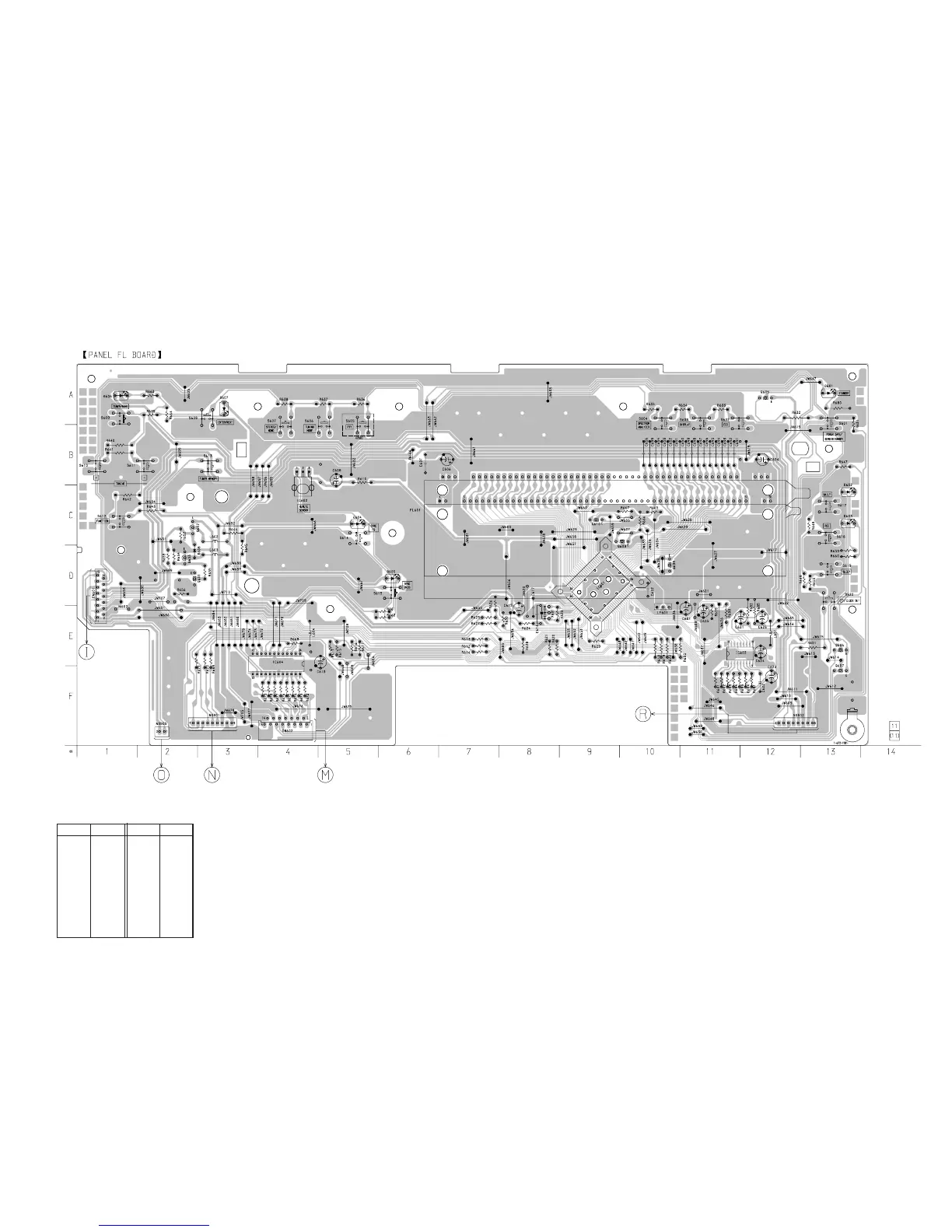

7-20. PRINTED WIRING BOARD – PANEL FL SECTION –
• See page 20 for Circuit Boards Location.
• Semiconductor
Location
D601 A-13
D602 C-13
D603 C-13
D604 C-5
D605 D-6
D606 A-1
D607 A-3
D608 D-2
IC601 D-9
IC602 C-4
IC603 E-12
Ref. No. Location
(Page 41)
(Page 79)
(Page 80)
(Page 75)
(Page 79)
IC604 E-4
Q601 D-2
Q602 C-2
Q603 D-2
Q605 A-12
Q606 E-13
Q607 F-13
Q608 D-10
Q609 C-10
Q610 C-9
Ref. No. Location
