Sony HCD-DX10 - Front Panel Section Exploded View

37
HCD-DX10/RG4SR/RG20/RG30T

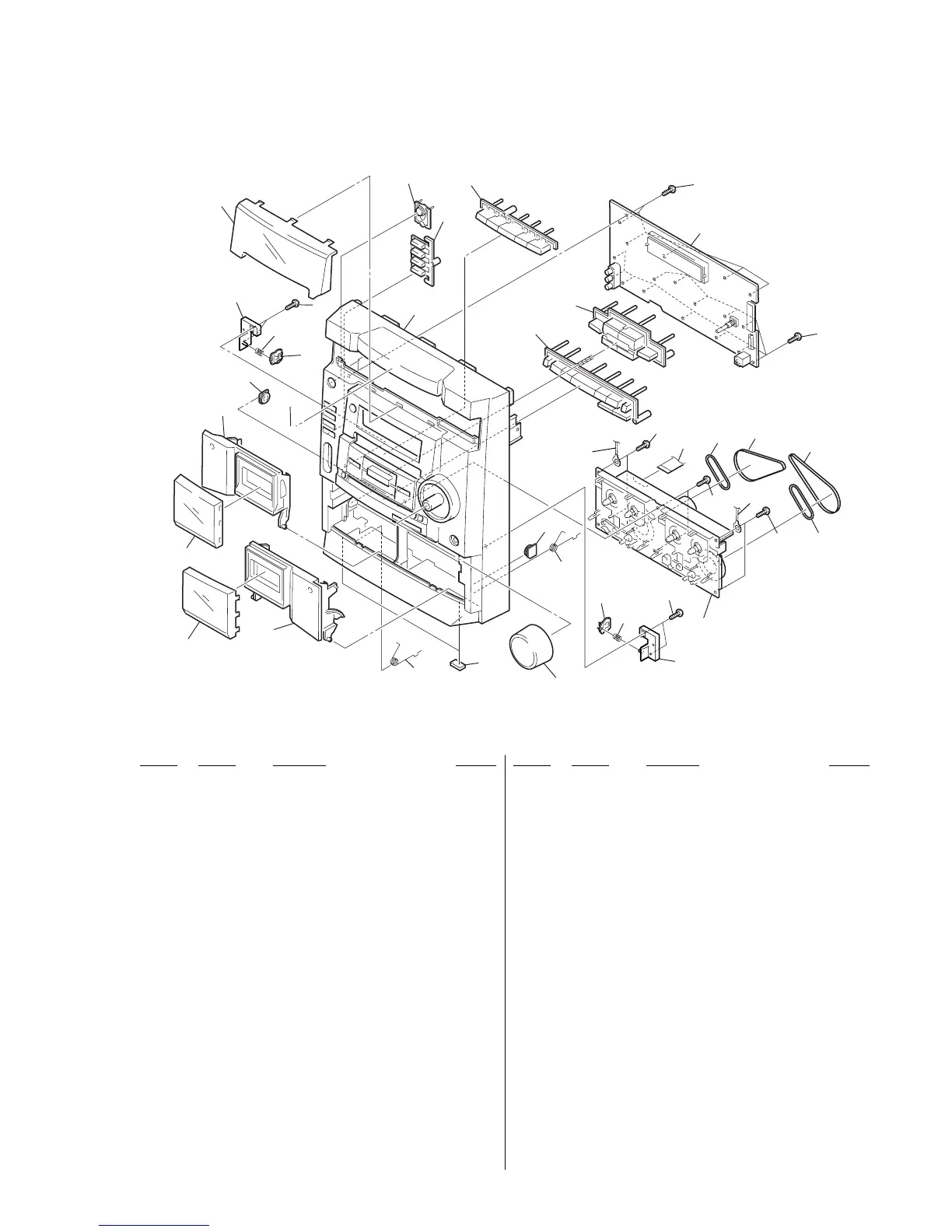

6-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 4-235-533-01 CASS WINDOW (L)
52 4-235-534-01 CASS WINDOW (R)
53 4-234-704-01 CASS DOOR (L) (RG4SR/RG20/RG30T)
53 4-234-704-11 CASS DOOR (L) (DX10)
54 4-234-705-01 CASS DOOR (R) (RG4SR/RG20/RG30T)
54 4-234-705-11 CASS DOOR (R) (DX10)
55 4-235-535-01 VOLUME KNOB (RG4SR/RG20/RG30T)
55 4-235-535-11 VOLUME KNOB (DX10)
56 4-233-981-01 CASSETTE DOOR SPRING L
57 4-224-104-11 DAMPER
58 4-235-398-01 EMBLEM, SONY
59 4-224-560-01 CAM (L), HEART
60 4-224-803-01 SPRING (PUSH), COMPRESSION
61 4-224-562-21 BRACKET (HEART CAM L)
62 4-234-703-01 DISPLAY WINDOW
63 4-234-700-01 FRONT PANEL (RG4SR/RG20/RG30T)
63 4-234-700-11 FRONT PANEL (DX10)
64 4-234-711-01 CD CONTROL BUTTON (RG4SR/RG20/RG30T)
64 4-234-711-11 CD CONTROL BUTTON (DX10)
65 X-4953-968-1 POWER BUTTON ASSY (RG4SR/RG20/RG30T)
65 X-4954-153-1 POWER BUTTON ASSY (DX10)
66 4-234-708-01 DISC BUTTON (RG4SR/RG20/RG30T)
66 4-234-708-11 DISC BUTTON (DX10)
67 4-234-709-01 FUNCTION BUTTON
68 4-234-710-01 MUSIC BUTTON (RG4SR/RG20/RG30T)
68 4-234-710-11 MUSIC BUTTON (DX10)
69 4-951-620-01 SCREW (2.6X8), +BVTP
70 A-4726-509-A PANEL BOARD, COMPLETE (RG20:US, CND)
70 A-4726-769-A PANEL BOARD, COMPLETE (RG20:AEP, UK)
70 A-4726-776-A PANEL BOARD, COMPLETE (RG30T)
70 A-4726-780-A PANEL BOARD, COMPLETE (RG4SR)
70 A-4726-920-A PANEL BOARD, COMPLETE (DX10:AUS)
70 A-4726-923-A PANEL BOARD, COMPLETE
(DX10:MY, SP, TW, E3)
70 A-4726-926-A PANEL BOARD, COMPLETE
(DX10:MX, AR, E2, E51)
71 4-235-777-01 BELT (FR)
72 4-235-775-01 BELT (BF)
73 4-235-776-01 BELT (AF)
74 1-796-122-11 DECK, MECH
75 1-823-058-11 WIRE (FLAT TYPE) (17 CORE)
76 4-224-561-01 BRACKET (HEART CAM R)
77 4-224-559-01 CAM (R), HEART
78 4-233-982-01 CASSETTE DOOR SPRING R
79 4-233-980-01 RUBBER FOOT
