Sony HCD-DX10 - Disassembly Procedures; Basic Unit Disassembly

6
HCD-DX10/RG4SR/RG20/RG30T
SECTION 2
DISASSEMBLY
2-1. CASE (TOP)
Note : Disassemble the unit in the order as shown below.
Note : Follow the disassembly procedure in the numerical order given.
CD board, Driver board, Motor board and Address sensor board
Case (Top)
CD door
Front panel section and CD mechanism
deck (CDM58F-K6) section
CD board
Panel board
Tape mechanism deck and Panel board
Sub trans board, Video out board and Trans board
Main board and Power board
Base unit
Set
4
qa
q;
q;
8

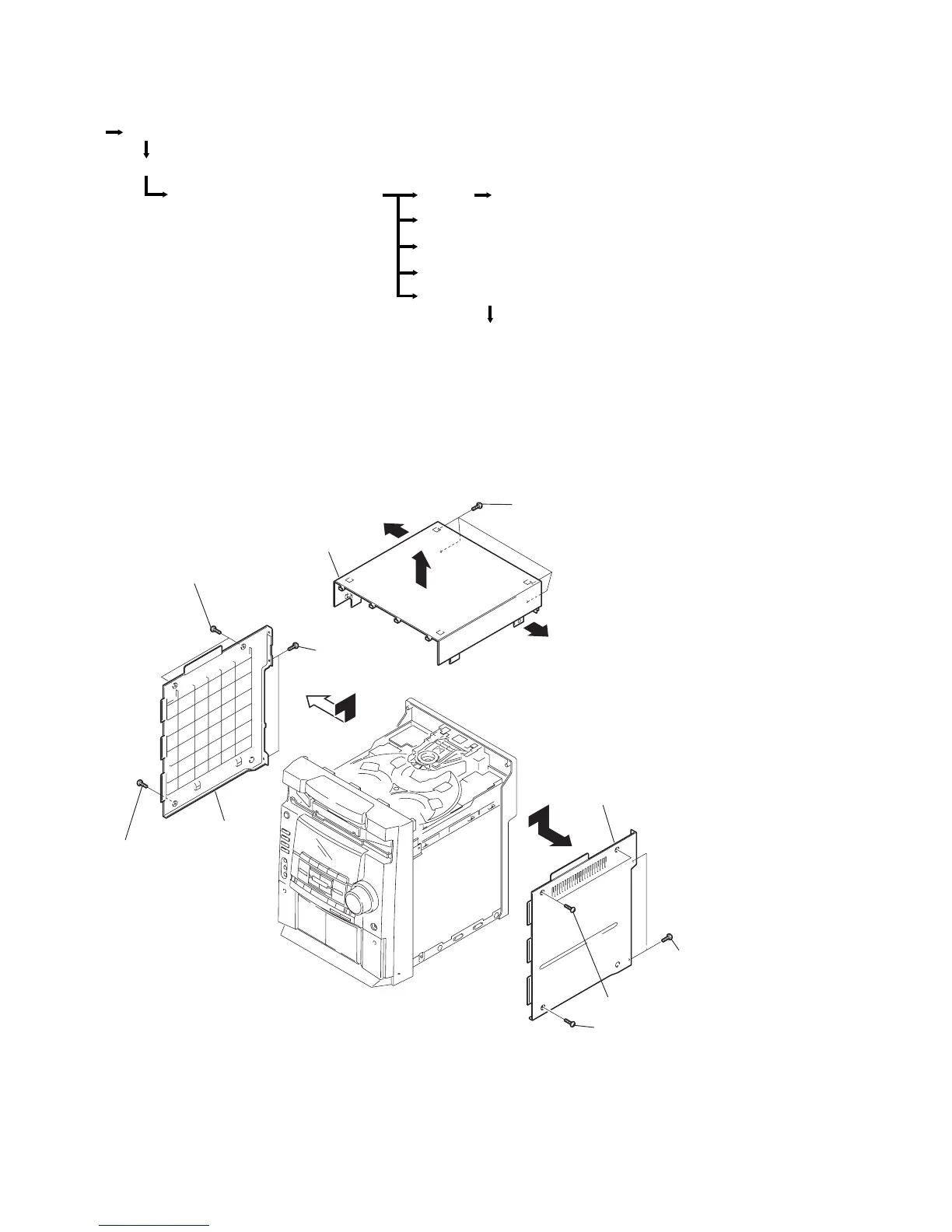

Case (Top)
Case (Side-L)
Case (Side-R)
5 Two screws (Case 3 TP2)
7 Two screws
(+BVTP 3
× 10)
3 Two screws
(+BVTP 3
× 10)
1 Two screws (Case 3 TP2)
9 Four screws (+BVTP 3 × 6)
6 Screw (Case 3 TP2)
2 Screw (Case 3 TP2)
