Sony HCD-DX255 - FL Board, SW Board; JACK Board, LED Board

13
HCD-DX155/DX255

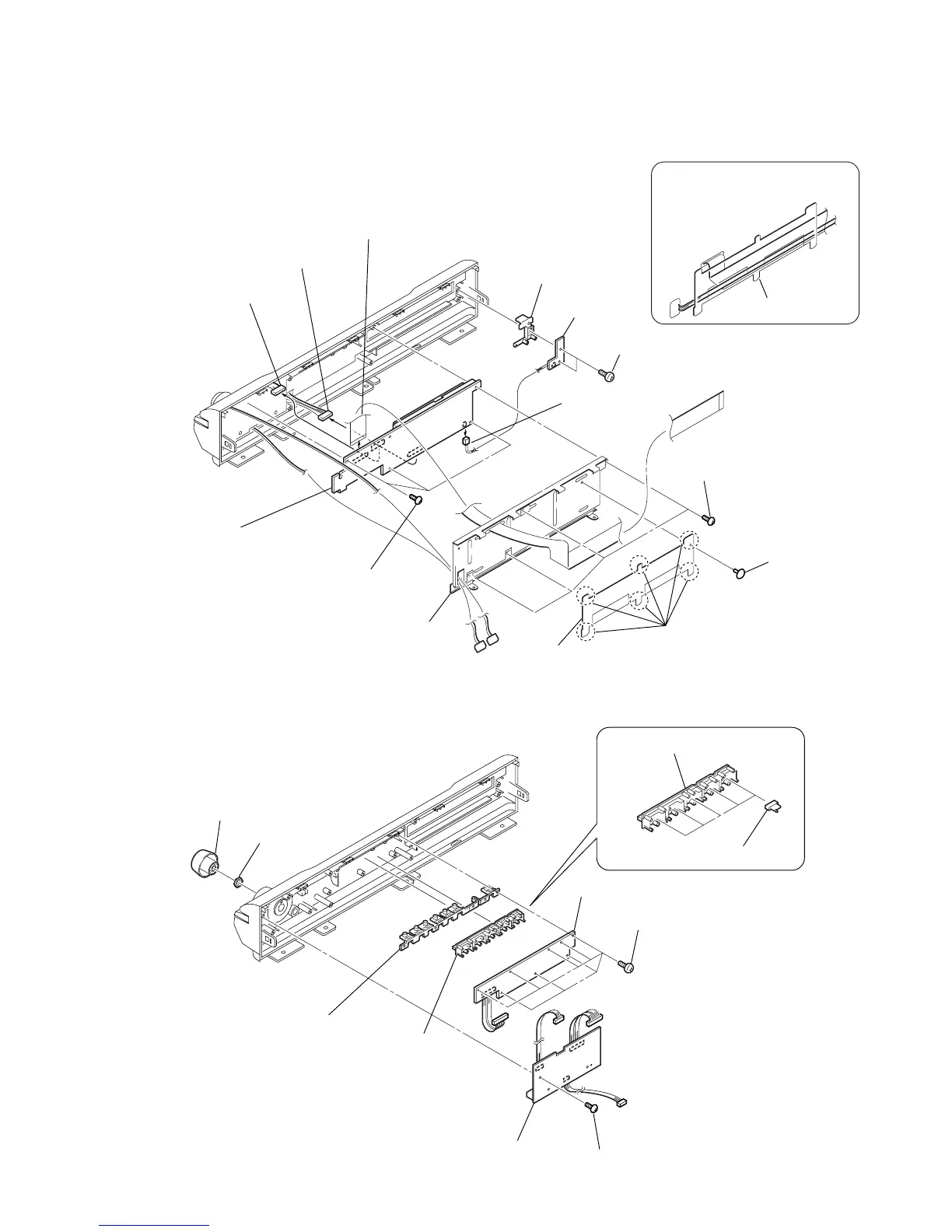

3-4. JACK BOARD, LED BOARD
3-3. FL BOARD, SW BOARD
1 rivet
4 four screws (+BVTP 2.6)
qs two screws (+BVTP 2.6)
6 three screws (+BVTP 2.6)
9 wire (flat type)
23core (CN801)
7 connector (CN811)
q; connector (CNP801)
8 connector (CN805)
2 six claws
3 hold plate (FFC)
hold plate (FFC)
5 shield plate (FC)
qd SW board
qa FL board
qf button (power)
When reassembling, route the
harness and flexible cable as
shown in the illustration.
4 JACK board
5 eight screws (+BVTP 2.6)
6 LED board
7 button (disk),
indicator (disk)
9 button (disk)
q; button (play)
3 screw (+BVTP 2.6)
1 knob (vol)
2 nut
8 five indicators (disk)
