Sony HCD-DX255 - 7 Exploded Views; Overall Section

67
HCD-DX155/DX255
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS: Australian model
CND : Canadian model
E3 : 240V AC area in E model
MX : Mexican model
SP : Singapore model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

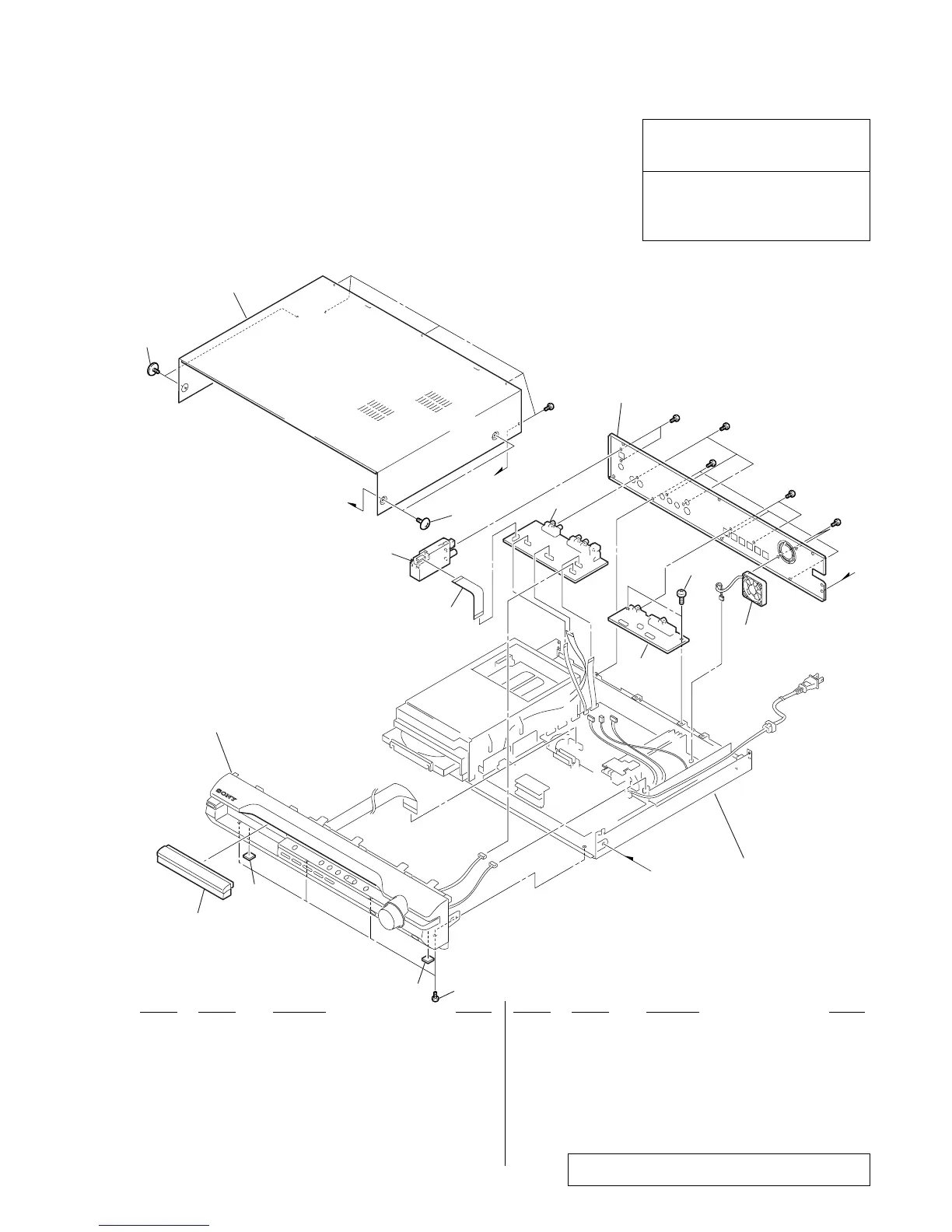

7-1. OVERALL SECTION
1 2-653-086-01 PANEL, LOADING
2 4-232-478-41 FOOT
3 3-077-331-21 +BV3 (3-CR)
4 1-693-702-11 TUNER (FM/AM) (TM10SE)
(DX155: E3, MX, SP, AUS)
4 1-693-703-11 TUNER (FM/AM) (TM10SU)
(DX155: US, CND/DX255)
5 3-363-099-51 SCREW (CASE 3 TP2)
6 2-653-945-01 CASE
7 A-1176-129-A I/O BOARD, COMPLETE
8 1-787-331-11 FAN, D.C.
9 1-828-953-11 WIRE (FLAT TYPE) (9 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-881-09 SCREW +BVTT 4X8 (S)
#5 7-685-871-01 SCREW +BVTT 3X6 (S)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
#1
#1
#5
#1
#3
b
a
a
5
6
5
4
#1
not
supplied
not
supplied
front panel section
chassis section
8
9
1
2
2
3
b
7
3
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
