Sony HCD-DX255 - I;O Board, Tuner; SPEAKER Board, D.C. Fan

14
HCD-DX155/DX255

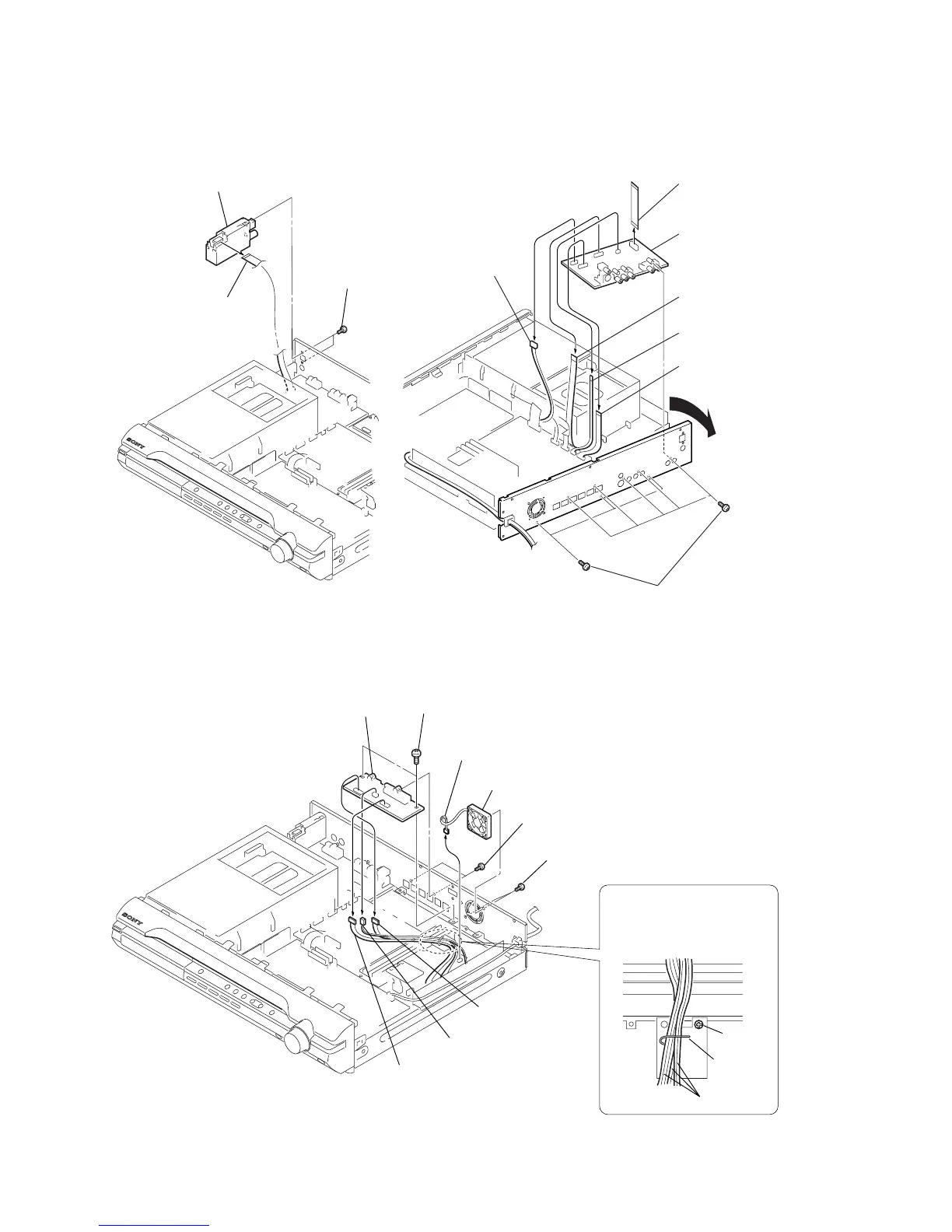

3-6. SPEAKER BOARD, D.C. FAN
3-5. I/O BOARD, TUNER
3 tuner
1 two screws
(+BVTT 3 × 6)
2 wire (flat type)
9core
qa I/O board
8 wire (flat type)
13core(CN201)
q; Open the
back panel .
7 wire (flat type)
7core(CN202)
6 wire (flat type)
13core(CN311)
5 wire (flat type)
9core(CN203)
4 connector
(CN312)
9 eight screws
(+BVTP 3 × 8)
3 D.C. fan
2 two screws
(+BVTP 4 × 8)
8 two screws
(+BVTT 3 × 8)
1 connector
(CN3000)
4 connector
(CN303)
5 connector
(CN302)
6 connector
(CN301)
7 two screws
(+BV3)
9 SPEAKER board
screw
lead pin
When assembling,
clamp the three harnesses with
a lead pin or a similar tool so
that they do not touch this screw.
three harnesses
Ver. 1.2
