Sony HCD-DX255 - Gear (Stocker 3); Rotary Encoder (MD)

22
HCD-DX155/DX255
1 screw
(+PTPWH 2.6
× 8)
2 gear (stocker 3)
gear (stocker 3)
(reverse-side)
rotary encoder
(ST U/D encoder)
PRECAUTION DURING GEAR (STOCKER 3) INSTALLATION
Be sure to align the rib of the gear (stocker 3) with the groove
of the rotary encoder.
groove
rib
1 three screws
(+BTTP 2.6)
2 rotary encoder (MD)
rotary encoder (MD)
gear (BU1)
PRECAUTION DURING ROTARY ENCODER (MD) INSTALLATION
cam (BU)
Slide the cam (BU) in the direction of the arrow so that the mark
of the gear (BU1) can be seen. Engage the gears while aligning
the mark of the gear (BU1) with the protruding part of the
rotary encoder.
protruding part
mark

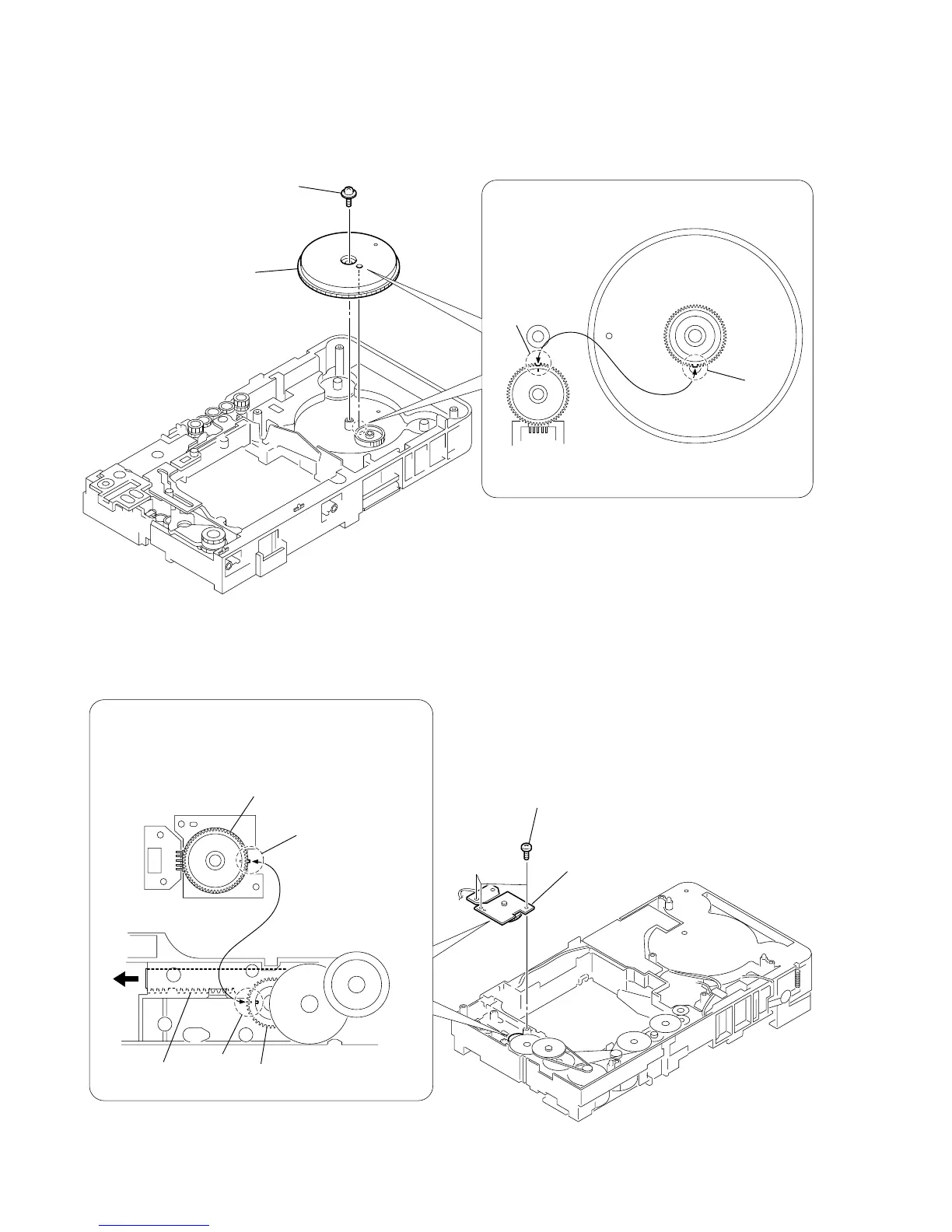

3-18. GEAR (STOCKER 3)
3-19. ROTARY ENCODER (MD)
