Sony HCD-DX255 - DVD Mechanism Deck Section-1 (CDM81 C-DVBU101)

70
HCD-DX155/DX255

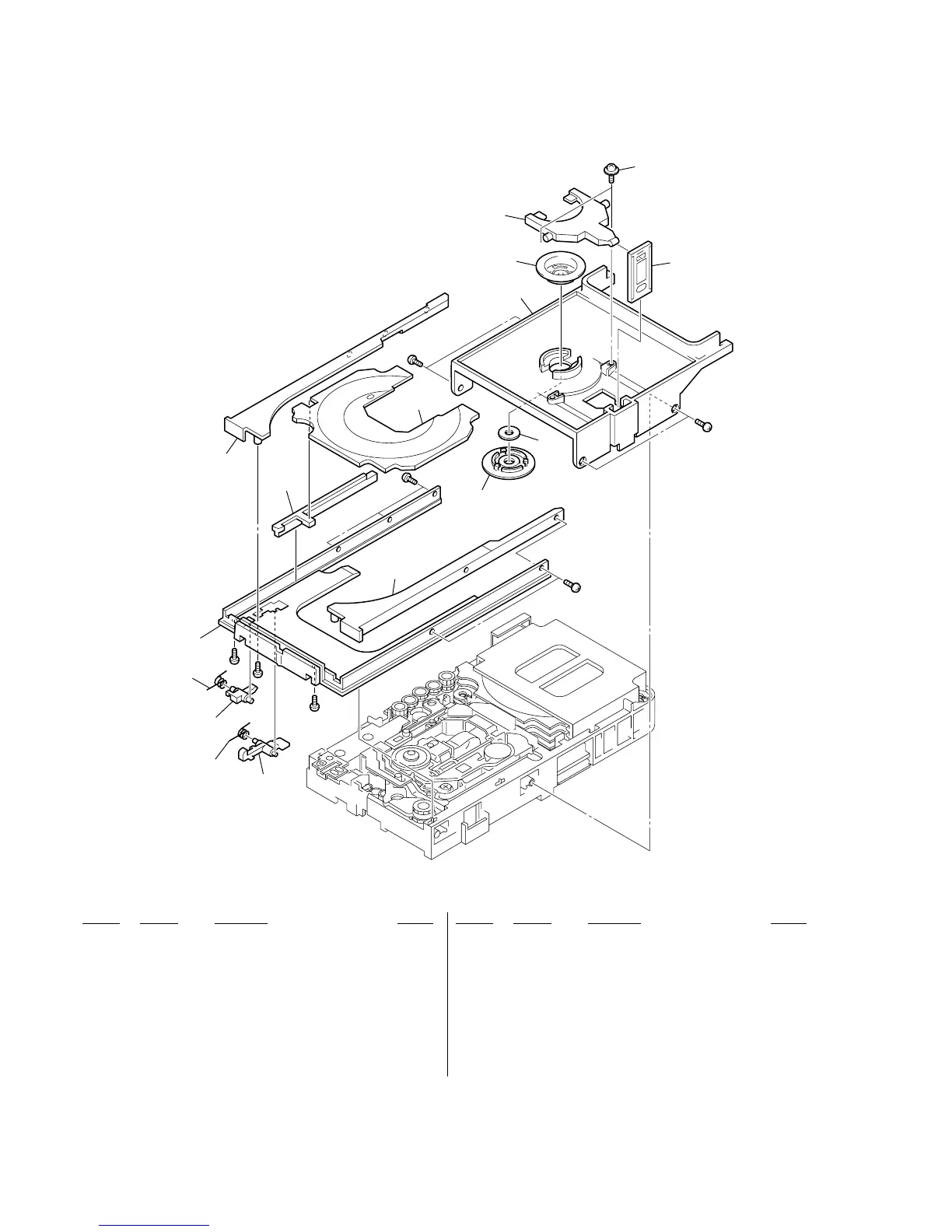

7-4. DVD MECHANISM DECK SECTION-1 (CDM81C-DVBU101)
151 4-251-849-01 LEVER (SW2)
152 4-251-991-01 SPRING (SW2), TORSION
153 4-251-860-01 LEVER (LOCK)
154 4-251-867-01 SPRING (LOCK), TORSION
155 4-251-828-01 TRAY (MAIN)
156 4-251-822-01 JOINT (LIFTER)
157 4-251-857-01 COVER (R)
158 4-251-830-01 SLIDER (ST)
159 4-251-858-01 COVER (L)
160 4-251-829-02 TRAY (SUB)
161 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
162 4-251-923-01 YOKE (310)
163 4-251-821-03 BRACKET (TOP)
164 4-251-922-01 PULLEY B (310), CHUCKING
165 4-251-824-01 LIFTER
#6 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
#8 7-685-102-19 SCREW +P 2X4 NON-SLIT TYPE 2
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151
152
155
153
154
157
158
159
160
162
163
164
165
161
156
#6
not supplied
#6
#8
#8
#8
#6
#6
