6
HCD-DX155/DX255
CN3002
MAIN BOARD
POWER BOARD
CN902
RED
BLACK
C903
C939
C933
C932

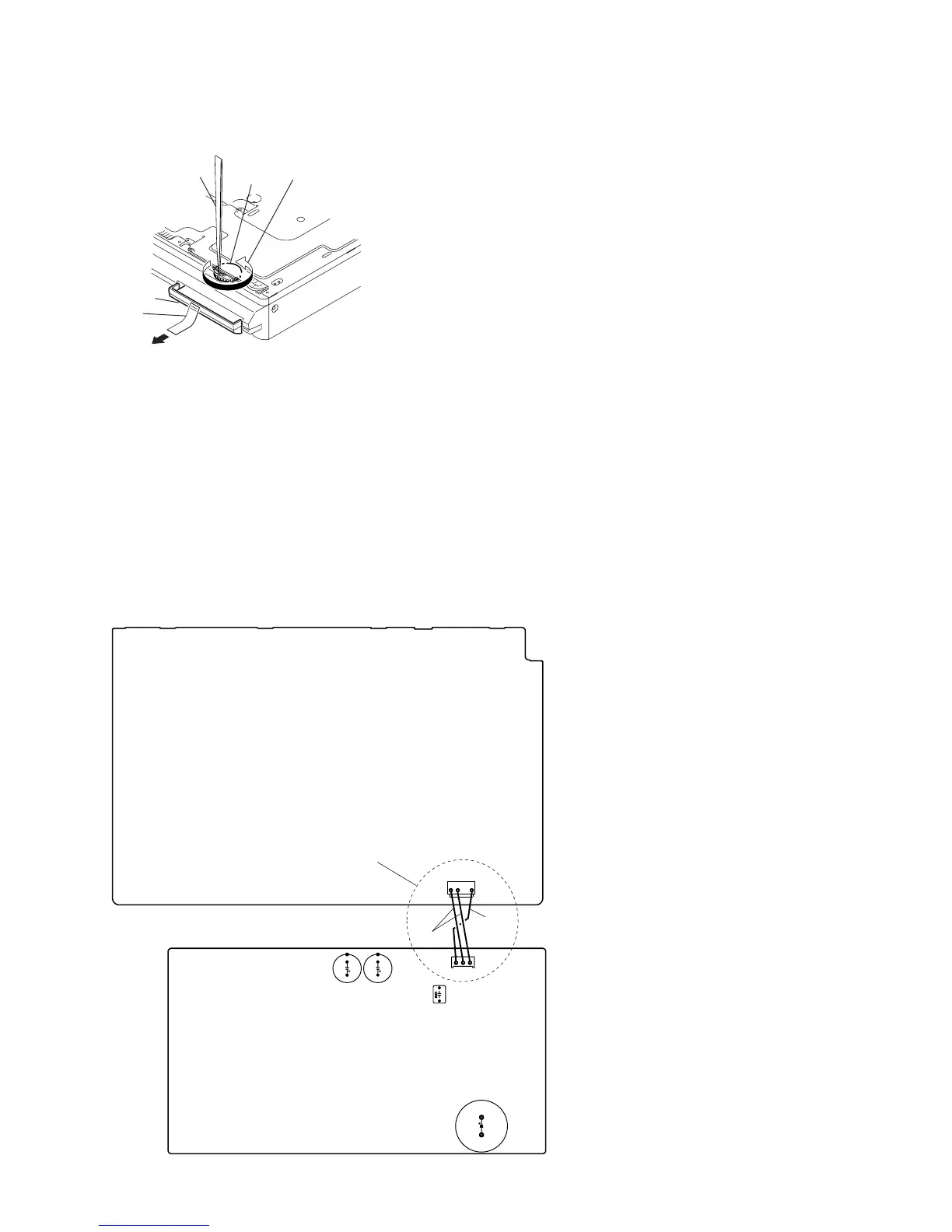

Discharge the charged electricity in capacitors to prevent electric shock as follows
When disassembling the machine, be sure to discharge the charged electricity in the following capacitors.
Use a resistor of 800 ohms, 2 Watts for discharging the following capacitors.
POWER board
C903 : 600V
C932, C933, C939, CN902 : 30V
MAIN board
CN3002 : 30 V
(Parts face side)
(Parts face side)
*
Connect the specified resistor
between black and red leads
gear
tweezers
1
Insert tip of tweezers through the hole
of bottom plate, and roate the gear in
the counter-clockwise direction.
DVD lid
tape
2
Attach an adhesive tape on the DVD LID and draw it out.
HOW TO OPEN THE DISC TABLE WHEN POWER SWITCH TURNS OFF
