Sony HCD-DZ110 - FL Board; JACK Board, SW Board

13
HCD-DZ110/DZ111/DZ120/DZ120K

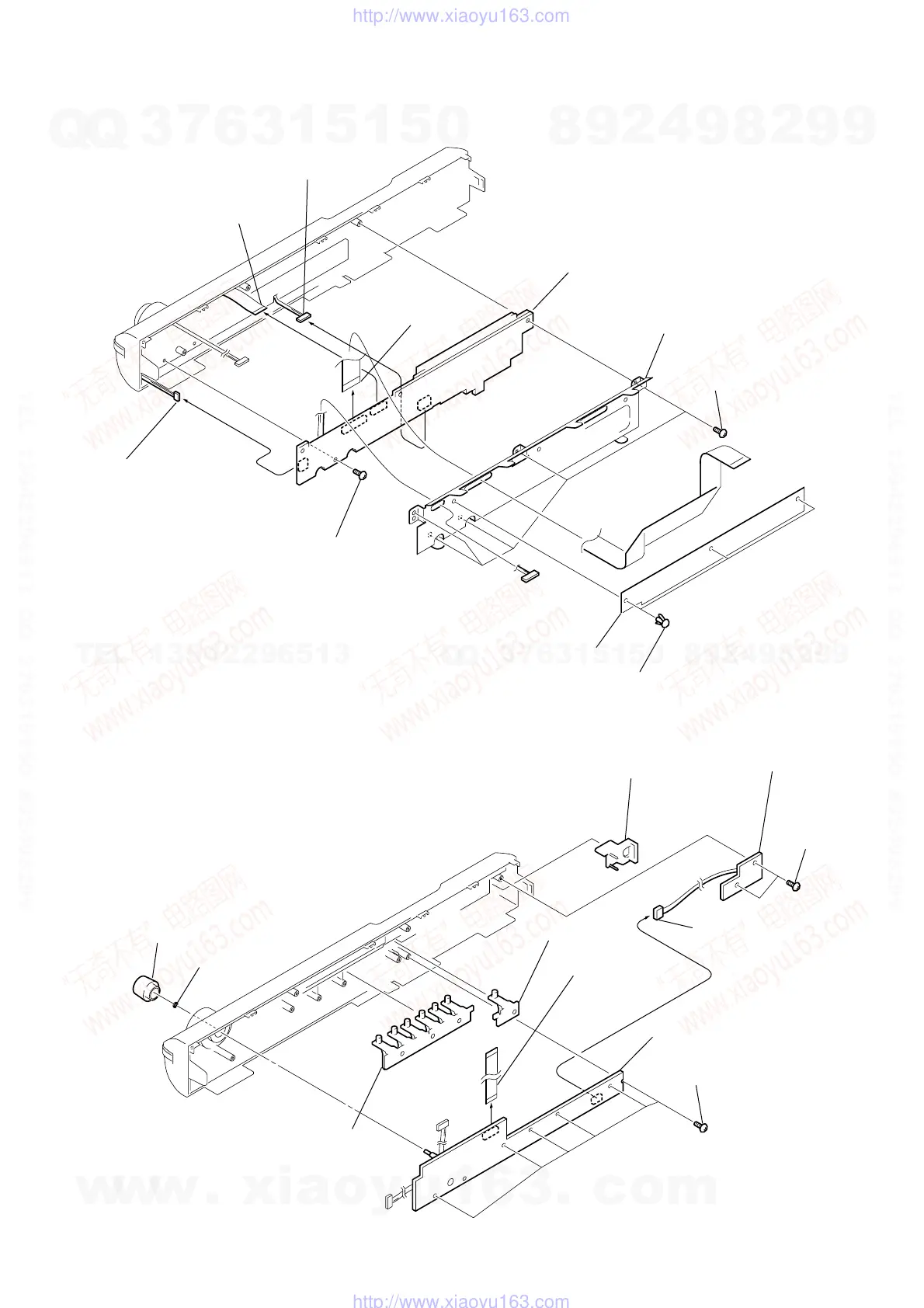

3-4. JACK BOARD, SW BOARD
3-3. FL BOARD
4 shield plate (fs)
0 FL board
9 wire (flat type)
23core (CN801)
7 wire (flat type)
13core (CN805)
3 five screws (+BVTP 2.6 × 8)
1 three rivets
2 retainer K
5 screw (+BVTP 2.6 × 8)
6 connector (CN803)
8 connector (CN811)
1 knob (vol)
2 nut
5 JACK board
7 button (play)
6 button (play)
4 wire (flat type)
13core (CNP802)
8 connector (CNP801)
3 six screws (+BVTP 2.6)
9 two screws
(+BVTP 2.6)
qa button (power)
q; SW board
