HCD-DZ110/DZ111/DZ120/DZ120K
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.

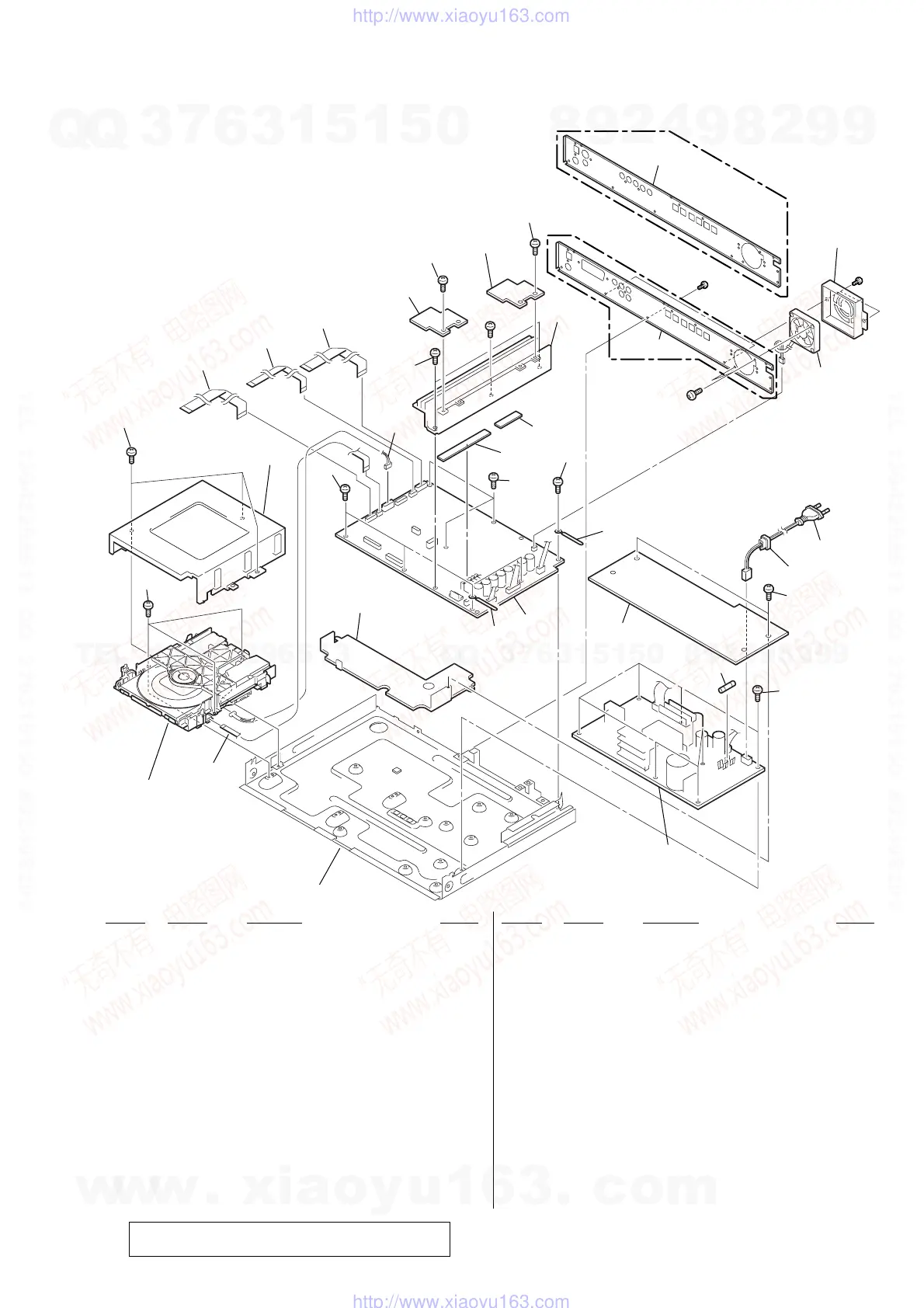

7-4. CHASSIS SECTION-2
(Continued from page 66)
107 3-703-244-00 BUSHING (2104), CORD (DZ120K: EXCEPT MX)
* 107 3-703-571-12 BUSHING (S) (4516), CORD (DZ120K: MX)
108 3-077-331-11 +BVTP 3X10 (3-CR)
109 A-1144-737-A POWER BOARD, COMPLETE (DZ110/DZ111)
109 A-1144-950-A POWER BOARD, COMPLETE (DZ120: KR, RU)
109 A-1146-005-A POWER BOARD, COMPLETE
(DZ120: US, CND/DZ120K :TW)
109 A-1146-091-A POWER BOARD, COMPLETE (DZ120K: MX)
109 A-1159-363-A POWER BOARD, COMPLETE (DZ120K: E32)
109 A-1177-691-A POWER BOARD, COMPLETE (DZ120K: RU)
109 A-1178-742-A POWER BOARD, COMPLETE
(DZ120: AUS/DZ120K: EA, E3, SP, AR )
110 1-828-292-11 WIRE (FLAT TYPE)(5 CORE)
111 1-828-332-11 WIRE (FLAT TYPE)(13 CORE)
112 1-828-300-11 WIRE (FLAT TYPE)(7 CORE)
113 1-828-330-11 WIRE (FLAT TYPE)(13 CORE)
114 2-597-972-21 SHEET, RADITATION (DZ120: EXCEPT US)
114 2-597-972-61 SHEET, RADITATION (DZ120: US)
115 2-597-972-11 SHEET, RADITATION (DZ120: EXCEPT US)
115 2-597-972-41 SHEET, RADITATION (DZ120: US)
0F901 1-532-325-00 FUSE (T6.3AL/250V)
(DZ110/DZ111/DZ120: KR, AUS, RU/
DZ120K: E3, SP, AR, RU, EA, E12)
0F901 1-532-749-11 FUSE, GLASS TUBE (8A/125V)
(DZ120: US, CND/DZ120K: MX, TW)
0F901 1-533-949-31 FUSE, CYLINDRICAL(TIME LUG)
(T8AL/250V) (DZ120K: E32)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#4 7-685-881-09 SCREW +BVTT 4X8 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101
114
115
102
104
103
109
101
103
101
107
106
101
101
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
F901
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
#1
#1
#1
#4
HCD-DZ120/DZ120K
HCD-DZ110/DZ111
not supplied
DVD mechanism
deck section
(CDM85-DVBU102)
#2
103
not
supplied
111
108
112
113
110
