64
HCD-DZ110/DZ111/DZ120/DZ120K
SECTION 7
EXPLODED VIEWS
NOTE:
-XX and -X mean standardized parts, so they
may have some difference from the original
one.
Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS: Australian Model
AR : Argentina model
CND : Canadian Model
E3 : 240V AC area in E model
E12 : 220-240V AC area in E model
E32 : 110-240V AC area in E model
EA : Saudi Arabia model
KR : Korean model
MX : Mexican model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

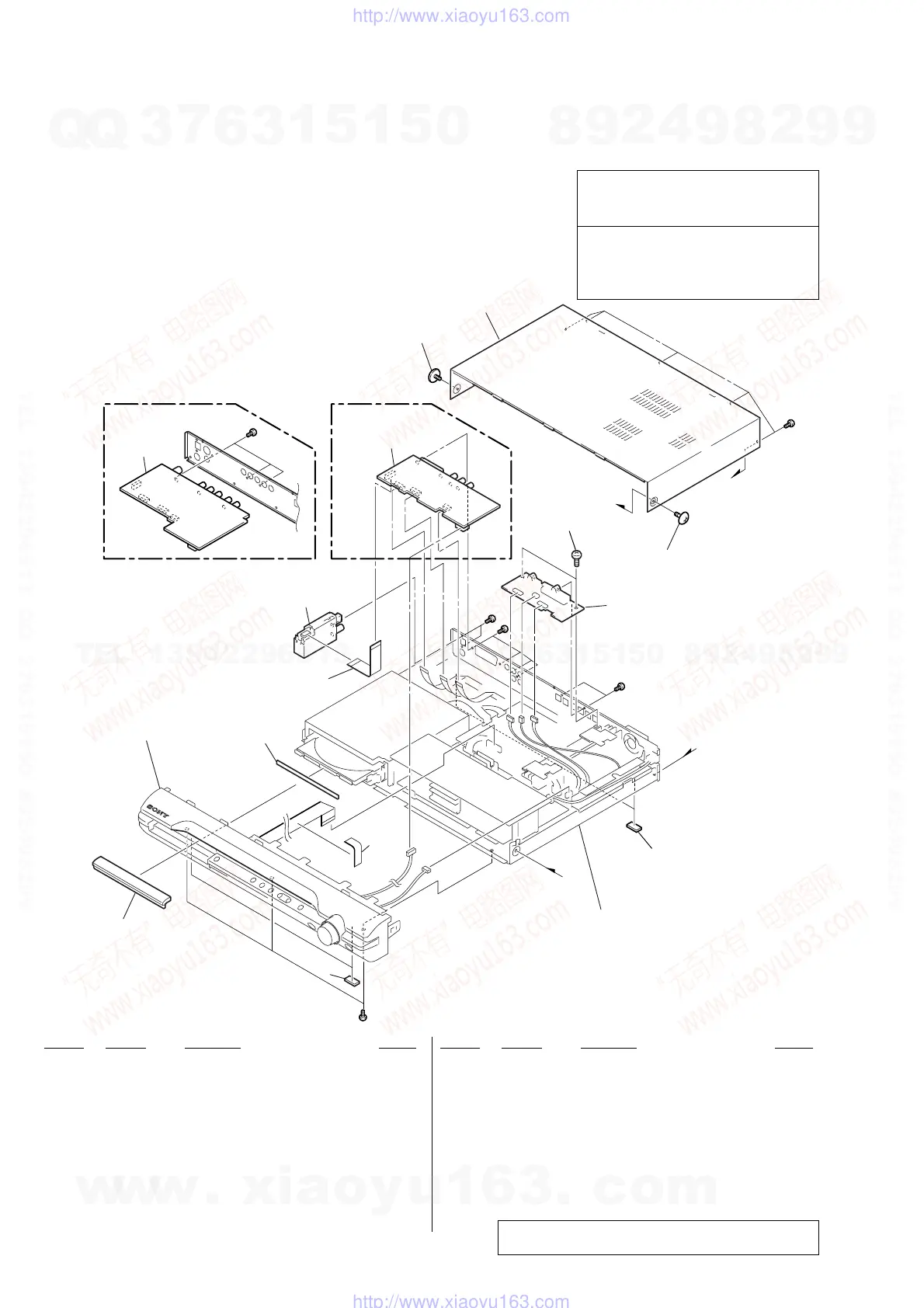

7-1. OVERALL SECTION
1 2-652-972-01 PANEL, LOADING
2 4-232-478-41 FOOT
3 1-693-700-11 TUNER (FM/AM) (TM10SCE) (DZ110/DZ111)
3 1-693-701-11 TUNER (FM/AM) (TM10SKR)
(DZ120: KR, RU/DZ120K: RU)
3 1-693-702-11 TUNER (FM/AM) (TM10SE)
(DZ120: AUS/DZ120K: EXCEPT RU)
3 1-693-703-11 TUNER (FM/AM) (TM10SU) (DZ120: US, CND)
4 A-1146-119-A I/O SCART BOARD, COMPLETE (DZ110/DZ111)
4 A-1176-126-A I/O BOARD, COMPLETE (DZ120)
4 A-1177-714-A I/O BOARD, COMPLETE (DZ120K)
5 3-077-331-21 +BV3 (3-CR)
6 3-363-099-51 SCREW (CASE 3 TP2)
7 2-653-932-01 CASE
8 1-828-952-11 WIRE (FLAT TYPE)(9 CORE)(DZ120/DZ120K)
8 1-828-962-11 WIRE (FLAT TYPE)(11 CORE)(DZ110/DZ111)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-871-01 SCREW +BVTT 3X6 (S)
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
not supplied
not supplied
#1
#1
#3
front panel section
HCD-DZ120/DZ120K HCD-DZ110/DZ111
b
b
a
a
6
7
6
1
3
2
5
#1
#1
5
4
4
chassis section
8
2
not
supplied
Note: If the wire (flat type) was replaced, fold it some as the
wire (flat type) before replacement.
Ver. 1.3
