HCD-DZ110/DZ111/DZ120/DZ120K

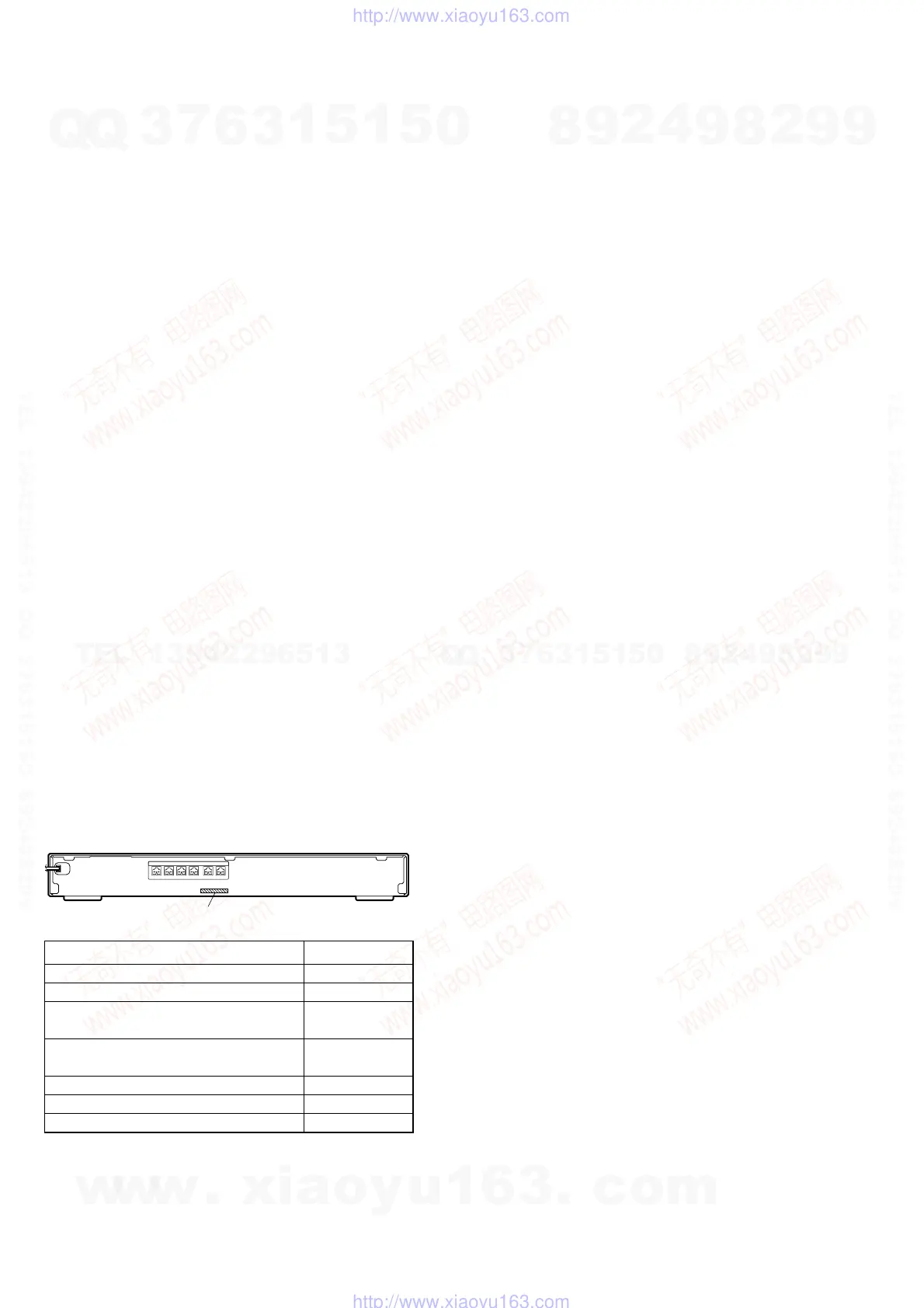

MODEL IDENTIFICATION
– Rear Panel –
Model Part No.
DZ110 : AEP, UK models 2-653-933-0[]
DZ111 : UK model 2-653-933-1[]
DZ120 : AUS, RU models
2-653-933-2[]
DZ120K : SP, E12, E32, AR, KR, TW models
DZ120 : US, CND models/
2-653-933-3[]
DZ120K : MX model
DZ120K : E3 model 2-653-933-5[]
DZ120K : RU model 2-661-239-2[]
DZ120K : EA model 2-661-239-3[]
•Abbreviation
AUS: Australian Model
AR : Argentina model
CND : Canadian Model
E3 : 240V AC area in E model
E12 : 220-240V AC area in E model
E32 : 110-240V AC area in E model
EA : Saudi Arabia model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
TW : Taiwan model
SPEAKER
FRONT R FRONT L SUR R SUR LCENTER
Parts No.
WOOFER
European models:
Other models:
Tuner section
System PLL quartz-locked digital
synthesizer system
FM tuner section
Tuning range
North American models: 87.5 – 108.0 MHz
(100 kHz step)
Other models: 87.5 – 108.0 MHz
(50 kHz step)
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
North American models: 530 – 1,710 kHz (with the
interval set at 10 kHz)
531 – 1,710 kHz (with the
interval set at 9 kHz)
Other models: 530 – 1,710 kHz (with the
interval set at 10 kHz)
531 – 1,602 kHz (with the
interval set at 9 kHz)
531 – 1,710 kHz (with the
interval set at 9 kHz)
Antenna (aerial) AM loop antenna (aerial)
Intermediate frequency 450 kHz
Video section
Outputs Video: 1 Vp-p 75 ohms
S video:
Y: 1 Vp-p 75 ohms
C: 0.286 Vp-p 75 ohms
COMPONENT:
Y: 1 Vp-p 75 ohms
PB/CB, PR/CR: 0.7 Vp-p
75 ohms
Outputs VIDEO: 1 Vp-p 75 ohms
COMPONENT:
Y: 1 Vp-p 75 ohms
PB/CB, PR/CR: 0.7 Vp-p
75 ohms
General
Power requirements
North American and Mexican models:
120
Latin American model : 110 - 240 V AC, 50/60Hz
Taiwan model : 120 V AC, 50/60Hz
V AC, 60 Hz
*Depending on the sound field settings and the source,
there may be no sound output.
Inputs (Analog)
TV/VCR (AUDIO IN) Sensitivity: 450/250 mV
AUDIO IN/MIC Sensitivity: 250/125 mV
Outputs (Analog)
Phones Accepts low-and high-
impedance headphones.
Inputs (Analog)
LINE (AUDIO IN) Sensitivity: 450/250 mV
Impedance: 50 kilohms
Phones Accepts low-and high-
impedance headphones.
AUDIO IN Sensitivity: 250/125 mV
Impedance: 50 kilohms
DZ110/DZ111
DVD system
Laser Semiconductor laser
(DVD: λ = 650 nm)
(CD: λ = 790 nm)
Emission duration:
continuous
S
European models:
Mexican and North American models:
Other models:
ignal format system
PAL
NTSC
NTSC/PAL
Frequency response (at 2 CH STEREO mode)
DVD (PCM): 2 Hz to 22
kHz (±1.0 dB)
CD: 2 Hz to 20 kHz (±1.0
dB)
Harmonic distortion Less than 0.03 %
DZ120K
DZ110/DZ111
DZ120
DZ120K
Mexican and other models:
Stereo mode (rated) 108 W + 108 W (3 ohms at
1 kHz, 1 % THD)
Surround mode (reference)
RMS output power, 10 %
THD
Front: 142 W + 142 W
(with SS-TS51)
Center*: 142 W
(with SS-CT51)
Surround*: 142 W + 142
W
(with SS-TS51)
Subwoofer*: 140 W
(with SS-WS52)
Inputs (Analog)
TV/VCR (AUDIO IN/VIDEO IN)
Sensitivity: 450/250 mV
AUDIO IN/MIC 1/MIC
Sensitivity: AUDIO IN
250/125 mV/MIC 1 1 mv
MIC 2 Sensitivity: 1 mV
Other models: 220 - 240 V AC, 50/60 Hz
Power consumption On: 150 W
Standby: 0.3 W (at the
Power Saving Mode)
Dimensions (approx.) 430 × 55 × 360 mm
Mass (approx.) 3.8 kg
Design and specifications are subject to change
without notice.
