HCD-DZ30
6
Prevention of electric shock and damage to IC
When disassembling the machine, be sure to discharge the charged electricity in the below point.
Use a resistor of 800 ohms, 2 Watts for discharging.

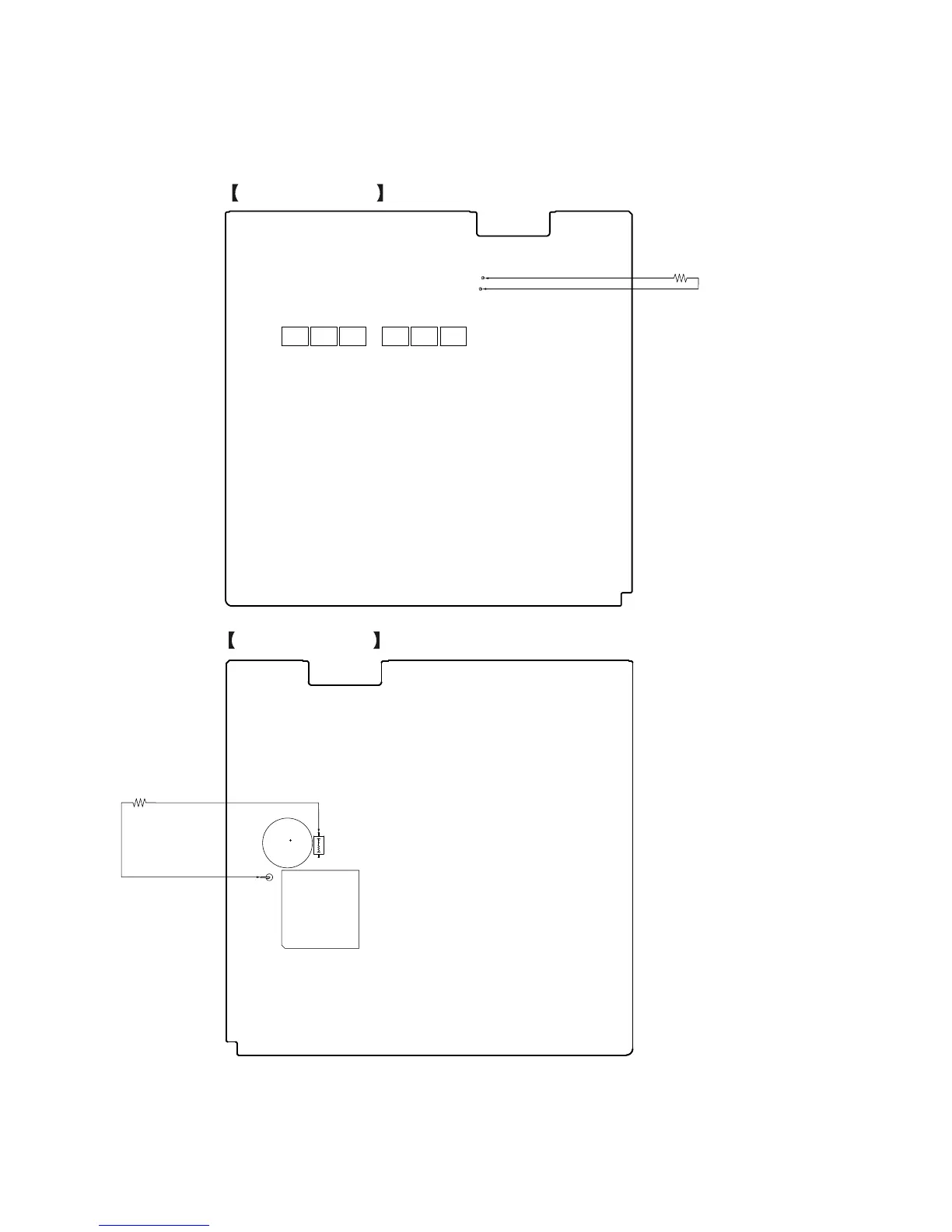

MAIN BOARD (SIDE A)
IC3250
IC3100
IC3300
IC3150
TP3053
800 Ω/2W
TP3054
IC3200
IC3400
Point of discharge for
TP3053 and TP3054
R912
FR901
C903
T901
MAIN BOARD (SIDE B)
800 Ω/2W
Point of discharge for
FR901 and R912
