Adjustment Location and Connecting Points
IC801
TP (TUNER VT)
TP (TUNER GND)
CNP802
ANTENNA
1
3
L851
AM TRACKIN
G
ADJUSTMENT
FM TRACKING
ADJUSTMENT
(TUNER GND)
(TUNER VT)
FM FREQUENCY
COVERRANGE
ADUJUSTMENT
AM FREQUENCY
COVERRANGE
ADUJUSTMENT
L852
L806
L804
L805
FM DETECTOR
ADUJUSTMENT

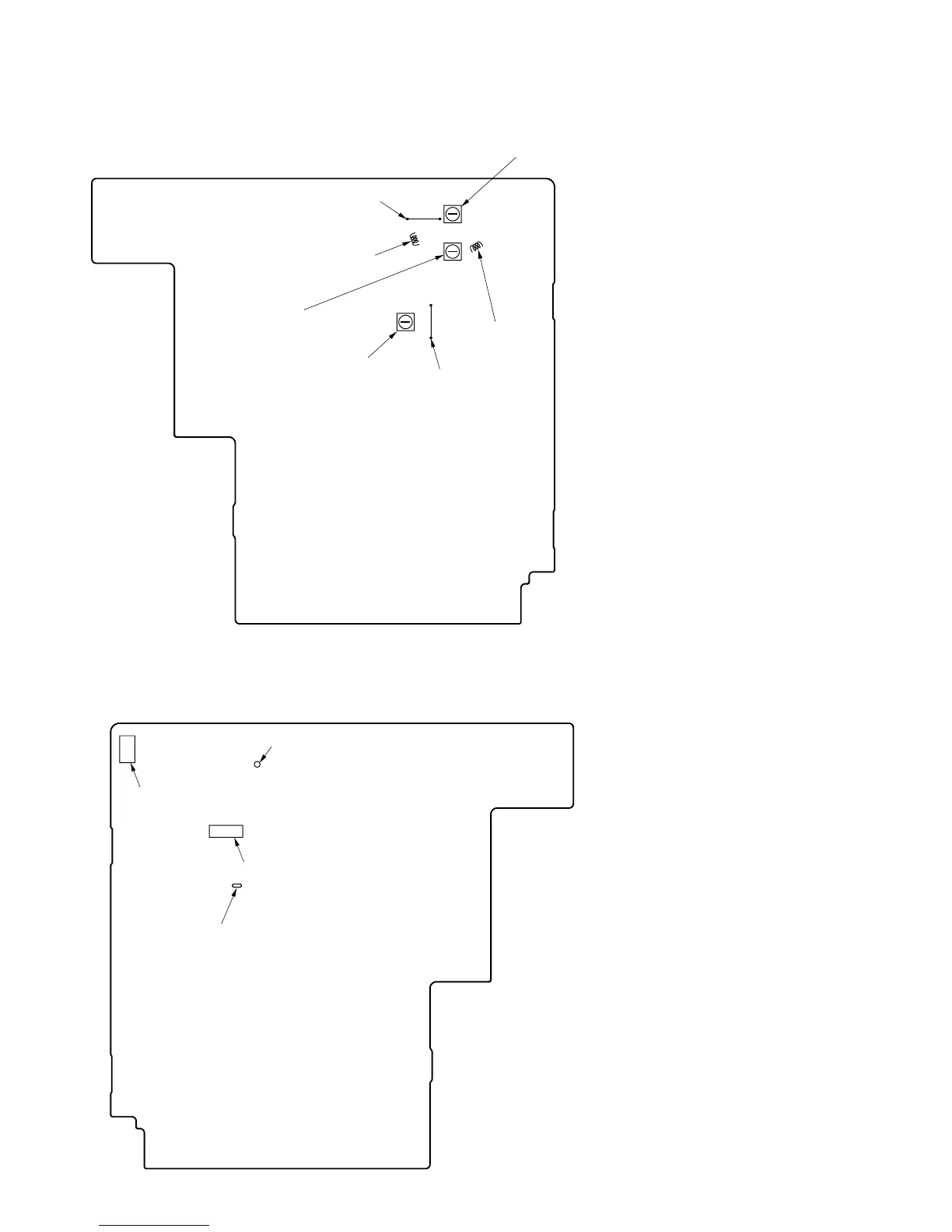

– MAIN BOARD (Component side) –
– MAIN BOARD (Conductor side) –
IC801 pin qs
(TUNER OUT L-ch)
